Emerson 396572-02-2

Product Dimensions：

Each ControlWave Micro has a printed circuit board (PCB) backplane

mounted in an aluminum housing, a Power Supply/Sequencer Module

(PSSM), a CPU module, and—depending on the backplane and housing

size—from zero to six I/O modules. See Figure 1-1 Expansion housings

(in 2-, 4-, or 8-slot configurations) attach to the base housing and enable

you to add up to eight more I/O modules.

You can insert optional expansion communication modules (ECOMs) in

slots #3 and #4 of the base housing in place of I/O modules.

Refer to the following sections in this chapter or to other chapters in this

manual for further information:

 Base and expansion housings (chassis) with backplanes (see Section

1.3 and Chapter 2)

 Power Supply/Sequencer module (PSSM) (see Section 1.5 and

Chapter 2)

 CPU module (see Section 1.4 and Chapter 2)

 One or more I/O modules (see Section 1.7 and Chapter 3)

 Optional Expansion Communication modules (ECOMs) (see Section

1.6 and Chapter 2)

 Peripheral components (such as keypad) (see Chapter 2)

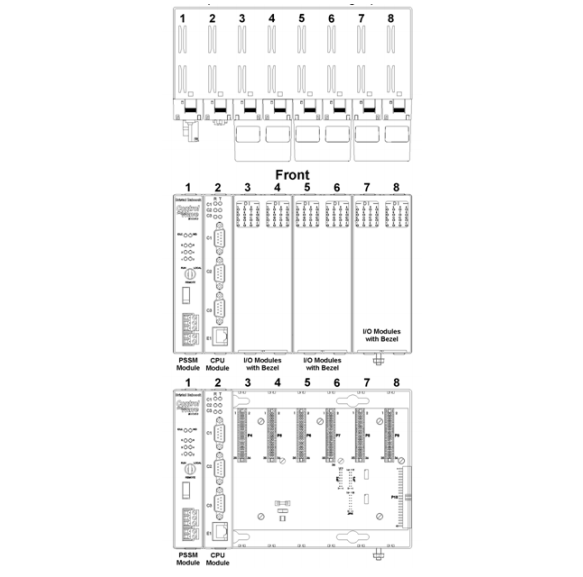

Figure 1-1 shows an 8-slot base housing with PSSM and CPU modules

installed.
