PHIDHS25IBLCSP EATON

PHIDHS25IBLCSP EATON Analog Output Modules

Brand：EATON Model number：PHIDHS25IBLCSP

Country of origin: the States Product weight：0.55kg

HS code：8538900000

Product Details：

Product Dimensions：

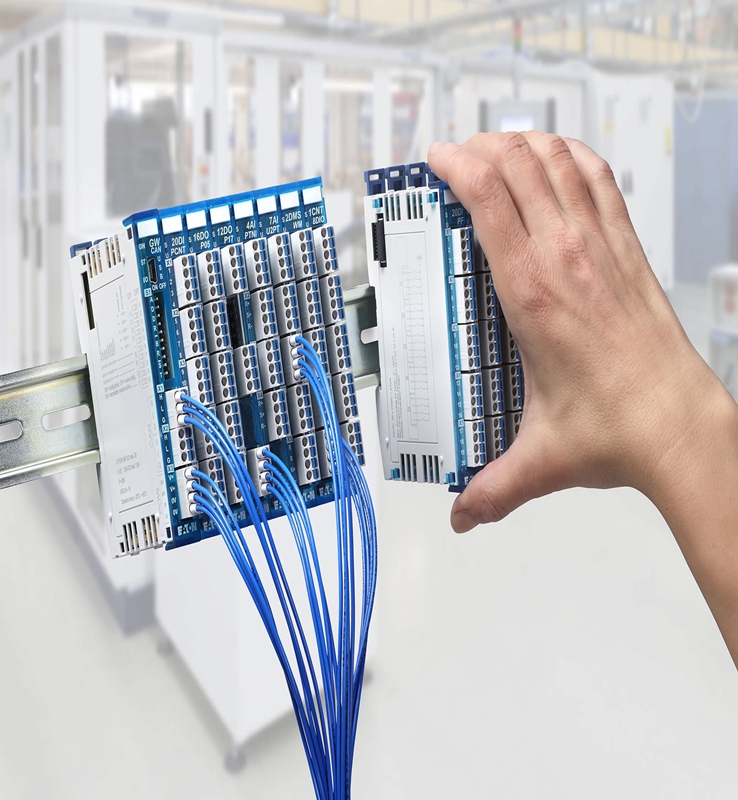

Eaton's analog output modules are essential components in automation systems, providing precise control of analog devices such as valves, actuators, and drives. These modules convert digital signals from a controller into analog signals, enabling smooth and accurate process control.

Product Details

Function:

These modules translate digital commands from a PLC or other controller into analog voltage or current signals.
They facilitate the control of devices requiring variable analog inputs.

Key Features:

High-resolution analog output.
Various output ranges (e.g., 0-10V, 4-20mA).
Electrical isolation.
Diagnostic capabilities.
Compatibility with Eaton's PLC systems.

Product Parameters

Output Ranges:

Voltage outputs: 0-10V, ±10V, etc.
Current outputs: 4-20mA, 0-20mA, etc.

Resolution:

Number of bits (e.g., 12-bit, 16-bit) determining the precision of the analog output.

Accuracy:

The deviation of the actual output from the commanded output.

Isolation Voltage:

The voltage rating for electrical isolation between the module and the system.

Update Rate:

The speed at which the module can update the analog output signal.

Power Supply:

Typically 24VDC.

Environmental Ratings:

Operating temperature ranges.

Product Advantages

Precise Control:

High resolution and accuracy ensure accurate control of analog devices.

Reliability:

Eaton's reputation for robust and reliable industrial products.

Flexibility:

Various output ranges cater to diverse application requirements.

Diagnostic Features:

Built-in diagnostics help to identify and troubleshoot issues.

System Integration:

Designed for seamless integration with Eaton's automation platforms.

Important Considerations

Output Range Matching:

Ensure the module's output range matches the requirements of the connected analog device.

Wiring and Shielding:

Proper wiring and shielding are crucial to minimize noise and interference.

Calibration:

Regular calibration may be necessary to maintain accuracy.

Load Requirements:

Ensure the output module can drive the load of the analog device.

Environmental factors:

Temperature, humidity, and vibration, are all environmental factors to consider.

Product Applications

Process Control:

Control of valves, pumps, and other process equipment.

Motion Control:

Control of variable-speed drives and actuators.

HVAC Systems:

Control of dampers, fans, and other HVAC equipment.

Industrial Automation:

Any automation that requires precise analog output control.

Testing equipment:

Used in many test and measurement applications.
