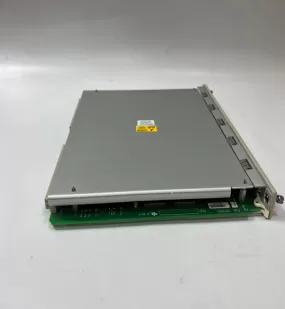

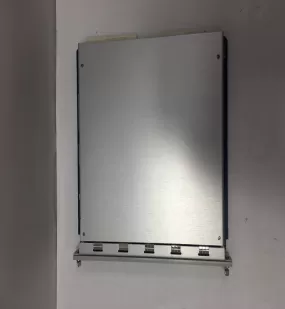

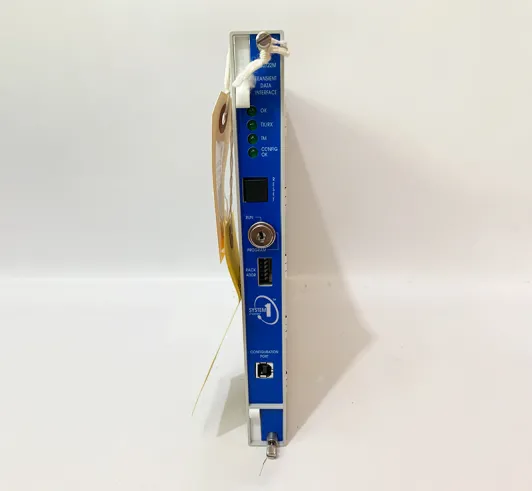

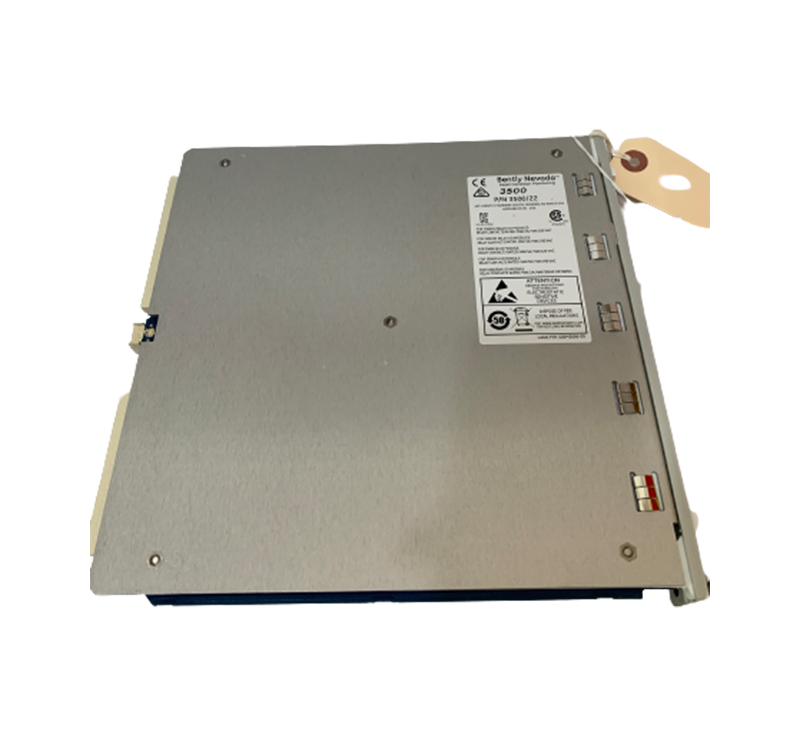

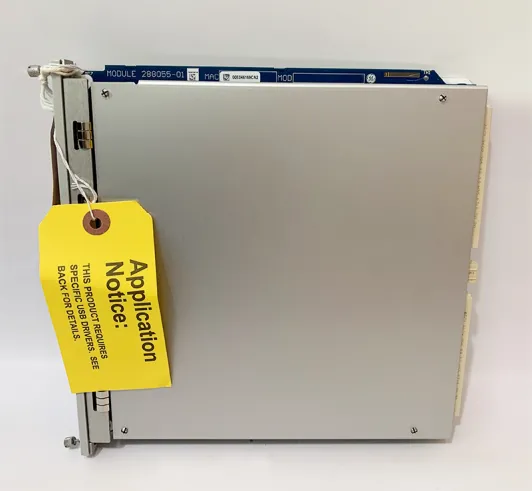

BENTLY 3500/22M Transient Data Interface Module

Product Details:

Brand: BENTLY

Model number: 3500/22M

Colour: new

Warranty: 12 months

Lead Time: 3-day working day

Country of origin: U.S.A

Price: Please contact us

Product weight: 0.84 kg

Shipping Port: Xiamen, China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service


Product Dimensions:

The 3500/22M Transient Data Interface (TDI) is the interface between the 3500 monitoring system and compatible software (System 1 Condition Monitoring and Diagnostic software and 3500 System Configuration software). The TDI combines the function of a 3500/20 Rack Interface Module (RIM) with the data collection capability of a communication processor such as TDXnet. The TDI resides in the slot adjacent to the power supplies of a 3500 rack. It interfaces with M series monitors (3500/40M, 3500/42M, etc.) to continuously collect steady state and transient dynamic (waveform) data and pass this data through an Ethernet link to the host software. Refer to the Compatibility section at the end of this document for more information. Static data capture capability is standard with the TDI. However, using an optional Channel Enabling Disk will allow the TDI to capture dynamic and high-resolution transient data as well. The TDI incorporates the communication processor function within the 3500 rack. Although the TDI provides certain functions common to the entire rack, it is not part of the critical monitoring path and has no effect on the proper, normal operation of the overall monitor system for automatic machinery protection. Every 3500 rack requires one TDI or RIM, which always occupies Slot 1 (next to the power supplies).

BENTLY   3500/22M  Transient Data Interface Module

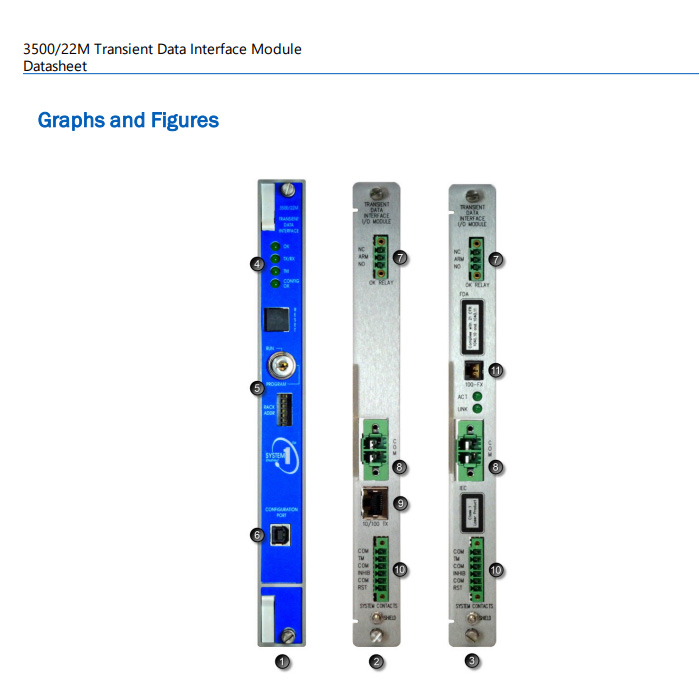

1. Main Module

2. 10 Base-T/100 Base TX (copper) Ethernet I/O Module

3. 100 Base-FX (fiber optic) Ethernet I/O Module

4. LEDs indicate operating status of the module

5. Hardware Switches

6. USB Configuration Port for configuring or retrieving machinery data

7. OK Relay indicates the OK status of the overall rack

8. Signal Common external grounding terminal

9. RJ-45 Ethernet Port for configuration and data collection

10. System Contacts

11. Fiber Optic Ethernet Port for configuration and data collection
