3500/94 Bently VGA Display Module

Inquire Now Next Product

Product Details：

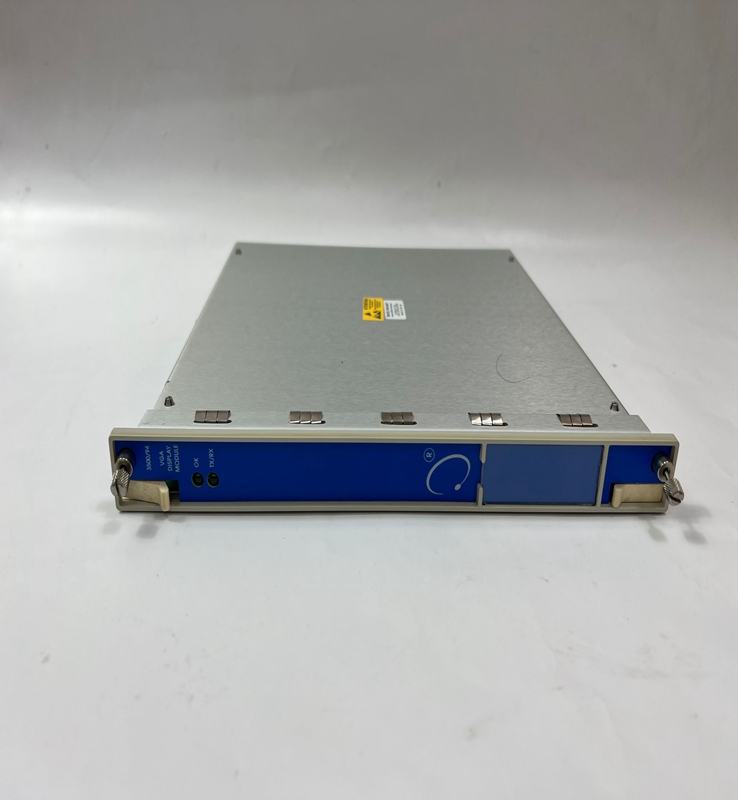

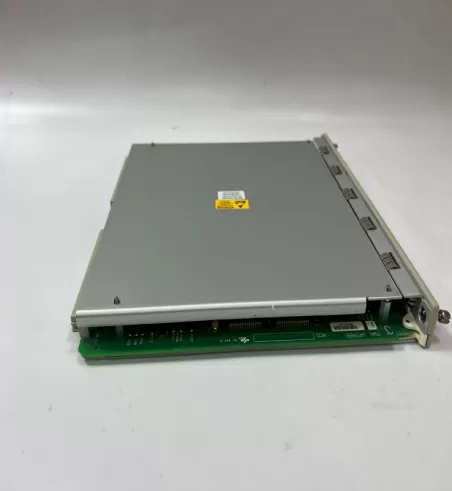

3500/94 Bently VGA Display Module

Brand：BENTLY NEVADA Model number：3500/94

Country of origin: U.S. Product weight：0.52kg

HS code：8517623990

Product Dimensions：

The 3500/94 VGA Display uses a standard color VGA monitor with “Touch

Screen” technology to display 3500 data. This product has two components, the

3500/94 VGA module and its I/O card, and secondly, the VGA display monitor.

The display monitor, with standard cabling, can be mounted up to 8 m (25 ft)

from the rack.

The 3500/94 displays all 3500 Machinery Protection System information,

including:

• System Event List

• Alarm Event List

• All module and channel data

• 3300 style rack view (API-670)

• Current alarm data (quick view)

• Nine custom display options.

All are accessed through a Main Menu using a Touch Screen.

Users configure the 3500/94 modules for language and for the type of VGA

display through the 3500 Rack Configuration Software. All other types of data configurations are done locally at the display, giving the operator control over the displayed data. Users may configure nine custom screens locally. As an example, one custom screen may show all the 1X measurements, while another shows all the Gaps, or the custom screens may be organized into train groupings. Users can organize all system data into any specified sets assigned the data to a custom screen. An API-670 compatible screen is also selectable.

This screen is similar to a 3300 view of the rack. Each slot shows the Direct or Gap value on the face of the module with OK and Bypass LEDs.
