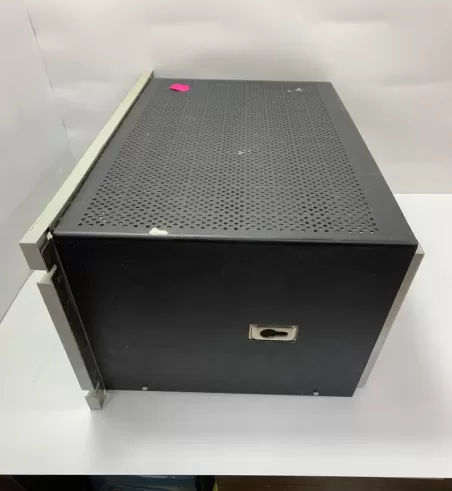

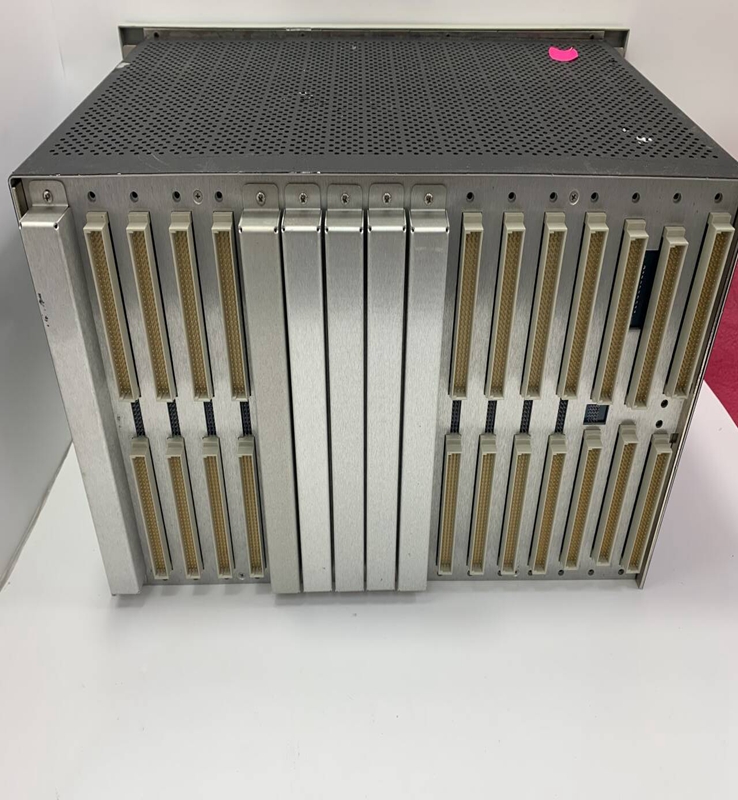

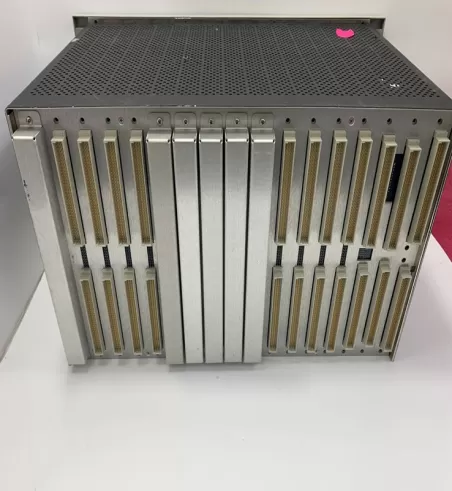

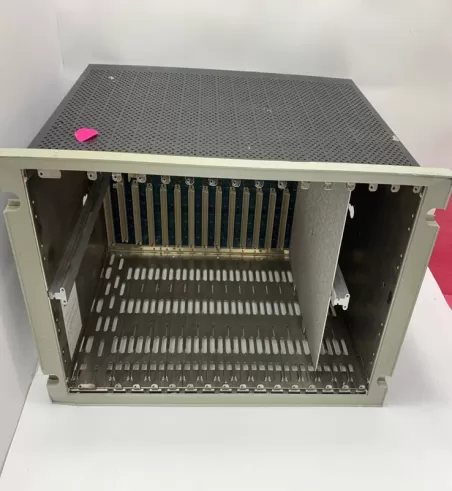

3500/05-01-02-01-00-00 Bently Nevada

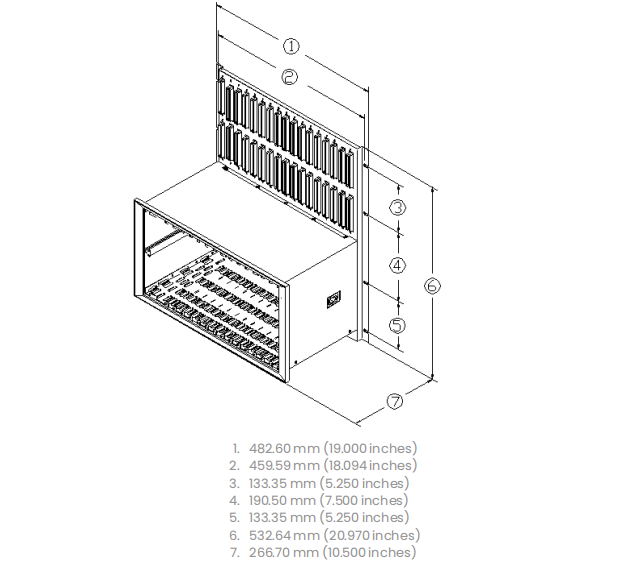

Product Dimensions：

Use the 3500 System rack to mount all 3500 monitor modules

and power supplies.  The rack allows you to place 3500

modules near one another, enabling them to easily

communicate, and to mount power supplies necessary to

distribute power to each module.

3500 racks are available in two sizes:

Full-size rack. 19-inch EIA rack with 14 available module slots.

Mini-rack. 12-inch rack with seven available module slots.

You can order 3500 racks in three formats:

Panel mount. This rack format mounts to rectangular cutouts in panels, and secures to the panel using clamps

supplied with the rack.  Wiring connections and I/O modules

are accessible from the rear of the rack.

Rack mount. This rack format mounts the 3500 Rack on 19-

inch EIA rails.  Wiring connections and I/O modules are

accessible from the rear of the rack.

Bulkhead mount. This rack format mounts the rack against a

wall or panel when it is not possible to access the rear of the

rack.  Wiring connections and I/O modules are accessible

from the front of the rack.  The 3500/05 Mini-Rack is not

available in this format.

The power supplies and rack interface module must occupy

the far-left rack positions.  The remaining 14 rack positions

(seven rack positions for the mini-rack) are available for any

combination of modules.

This device complies with part 15 of the

FCC Rules. Operation is subject to the

following two conditions:

l This device may not cause harmful

interference.

l This device must accept any

interference received, including

interference that may cause

undesired operation.

We have the same series of models in stock.  If you don't find the model you need, please contact us and we will provide you with an official quotation！

Bently 330930-045-00-05

Bently 330930-040-00-05

Bently 330130-080-00-05

Bently 330980-50-05

Bently 330180-90-05

Bently 330180-91-05

Bently 330101-00-24-10-02-05

Bently 3500/22M-01-01-00

Bently 3500/93-01-00-00-00

Bently 172103-01

Bently 3500/15-02-02-RU

Bently 3500/25-02-03-RU

Bently 3500/65-01-00

Bently 1900/65A-00-00-01-00-00

Bently 18745-03

Bently 330130-080-00-00

Bently 3500/61 163179-02

Bently 40113-02

Bently 3500/61

Bently 133819-02

Bently 149369-01

Bently 125800-01

Bently 176449-01

Bently 125680-01

Colour：new                                  Warranty: 12 months

Lead Time：3-day working day     Price: Please contact us

Shipping Port: Xiamen, China        Payment:T/T

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service
