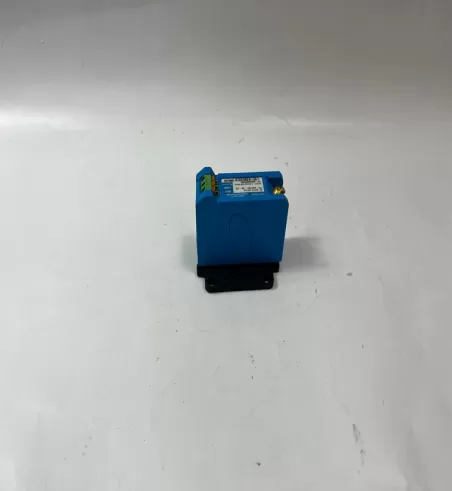

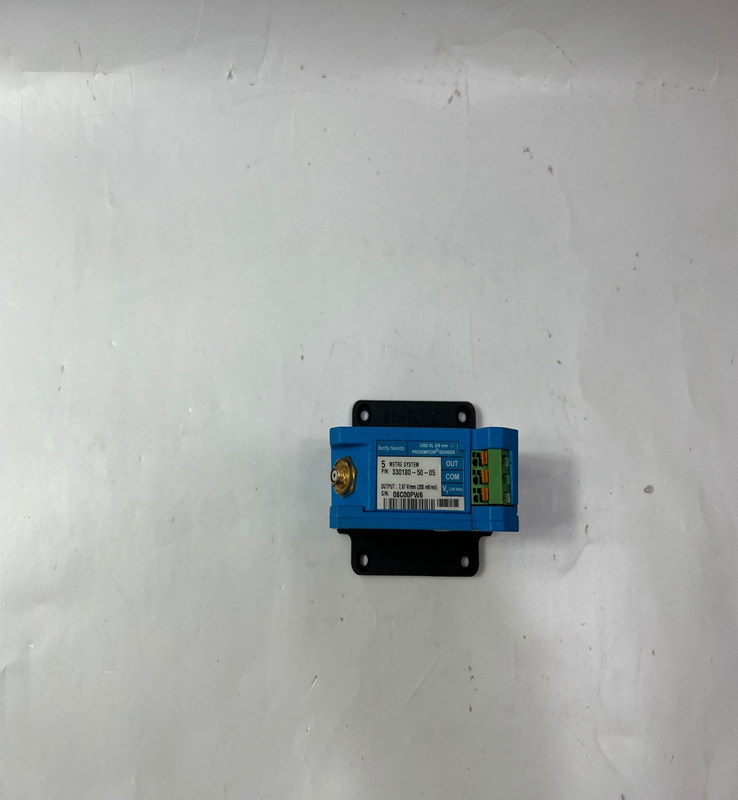

330180-50-05 Bently Nevada 3300 XL Proximitor Sensor

330180-50-05 Bently Nevada 3300 XL Proximitor Sensor

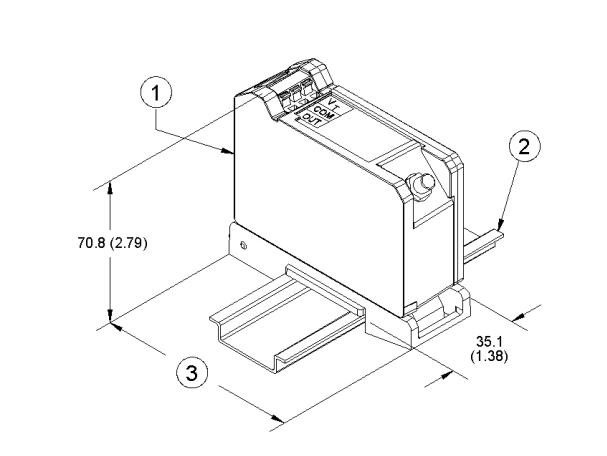

Product Dimensions：

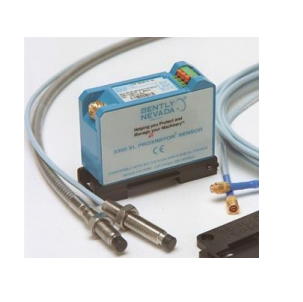

The 3300 XL 8 mm Proximity Transducer System consists of:

 One 3300 XL 8 mm probe,

 One 3300 XL extension cable1, and  One 3300 XL Proximitor* Sensor2.

The system provides an output voltage that is directly proportional to the  distance between the probe tip and the observed conductive surface and can  measure both static (position) and dynamic (vibration) values. The system’s  primary applications are vibration and position measurements on fluid-film  bearing machines, as well as Keyphasor* reference and speed measurements3. The 3300 XL 8 mm system delivers the most advanced performance in our eddy  current proximity transducer systems. The standard 3300 XL 8 mm 5-metre  system also fully complies with the American Petroleum Institute’s (API) 670  Standard (4th Edition) for mechanical configuration, linear range, accuracy, and  temperature stability. All 3300 XL 8 mm proximity transducer systems provide  this level of performance and support complete interchangeability of probes,  extension cables, and Proximitor sensors, eliminating the need to match or  bench calibrate individual components. Each 3300 XL 8 mm Transducer System component is backward-compatible and  interchangeable4 with other non-XL 3300 series 5 mm and 8 mm transducer  system components5. This compatibility includes the 3300 5 mm probe, for  applications in which an 8 mm probe is too large for the available mounting  space6,7.

The 3300 XL Proximitor Sensor incorporates numerous improvements over  previous designs. Its physical packaging allows you to use it in high-density DINrail installations. You can also mount the sensor in a traditional panel mount  configuration, where it shares an identical 4-hole mounting “footprint” with older  Proximitor Sensor designs. The mounting base for either option provides  electrical isolation and eliminates the need for separate isolator plates. The 3300  XL Proximitor Sensor is highly immune to radio frequency interference, allowing  you to install it in fiberglass housings without adverse effects from nearby radio  frequency signals. The 3300 XL Proximitor Sensor’s improved RFI/EMI immunity  satisfies European CE mark approvals without requiring special shielded conduit  or metallic housings, resulting in lower installation costs and complexity. The 3300 XL’s SpringLoc terminal strips require no special installation tools and  facilitate faster, more robust field wiring connections by eliminating screw-type  clamping mechanisms that can loosen

We have the same series of models in stock.  If you don't find the model you need, please contact us and we will provide you with an official quotation！

Bently 3500/05-01-01-00-00-01

Bently 3500/33-01-00

Bently 3500/25-02-02-00

Bently 21504-000-020-10-02

Bently 330180-50-05

Bently 330130-040-00-05

Bently 21508-02-12-05-02

Bently 10798-03

Bently 330704-000-050-10-02

Bently 330180-50-00

Bently 3500-62-03-00

Bently 3500-53-03-00

Bently 3500/94

Bently 125840-02

Bently 330101-00-24-10-02-00

Bently 330105-02-12-05-02-05

Bently 3300/35-1202-02-00-02

Bently 79492-01

Bently 87199-01

Bently 85515-02

Bently 3300/03-01-00

Bently 330500-02-00

Bently 133396-01

Bently 3500/05-01-01-01-00-00

Bently 3500/42M–02–00

Bently 330105-02-12-05-02-00

Bently 330130-080-00-CN

Bently 127610-01

Bently 144181-50

Bently 330105/02-12-05-02-00

Bently 330180-51-00

Bently 330130-080-00-BR

Bently 200152-15-00

Bently 86691-01780-1300-15

Bently 86691-01250-0400-15

Bently 330101-00-20-05-02-05

Bently 330180-91-00

Bently 3500/22 138607-01

Bently 21747-040-00

Bently 3500/25-02-01-00

Bently 46000-01

Bently 177313-01-02

Bently 3500/61-01-00

Bently 3500/25

Bently 133811-01

Bently 177313-02-01

Bently 330100-90-05

Bently 288055-01

Colour：new                  Warranty: 12 months

Lead Time：3-day working day   Price: Please contact us

Shipping Port: Xiamen, China     Payment:T/T

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service
