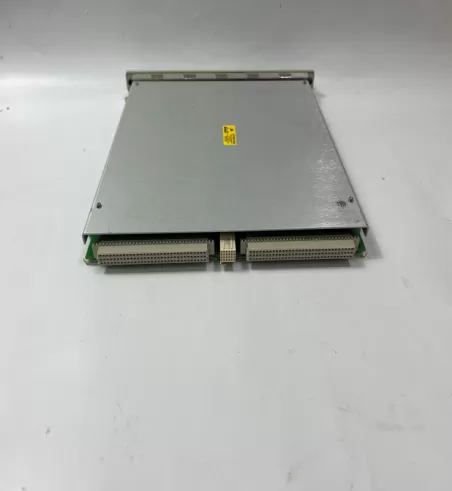

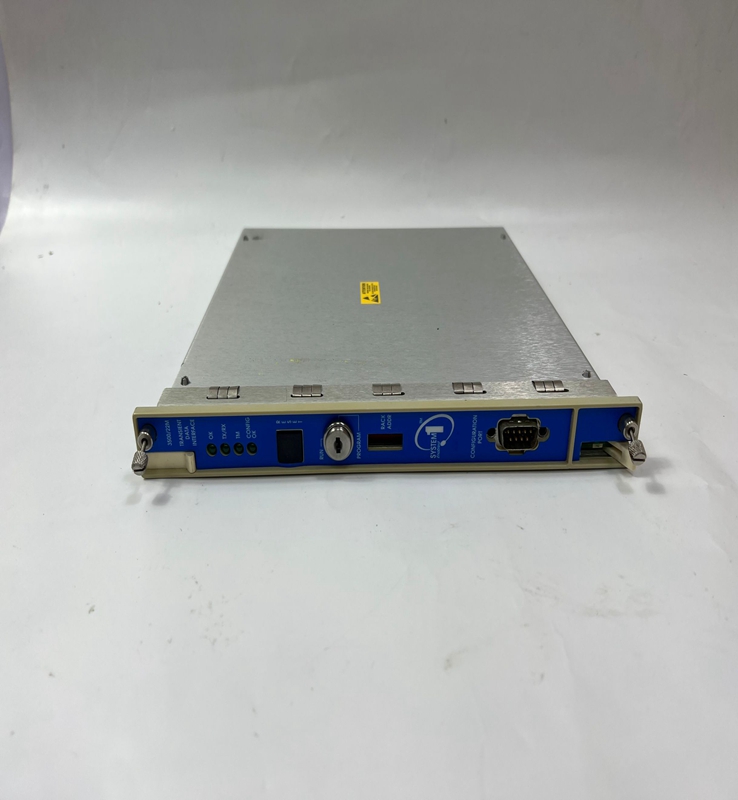

3300/55-06-01-01-04-00-00-00-00 Bently Nevada Power module

Product Details：

3300/55-06-01-01-04-00-00-00-00 Bently Nevada Power module

Brand：BENTLY NEVADA Model number：3300/55-06-01-01-04-00-00-00-00

Country of origin: U.S. Product weight：0.55kg

HS code：8517623990

Product Dimensions：

The General Purpose Equipment Monitor is designed to continuously monitor and protect equipment that is used in a variety of applications and industries. The monitor’s low cost makes it an ideal solution for generalpurpose machines and processes that can benefit from continuous monitoring and protection.

The 1900/65A provides four transducer inputs and four temperature inputs. Software can configure each transducer input to support 2- and 3-wire accelerometers, velocity sensors or proximity sensors. Each temperature input supports Type E, J, K, and T thermocouples, and 2- or 3-wire RTDs.

The provides six relay outputs, four 4-20 mA recorder outputs, and a dedicated buffered output. The user can use the 1900 Configuration software to configure the relay contacts to open or close according to the OK, Alert and Danger statuses of any channel or combination of channels,and to provide data from any variable from any channel on any recorder output. The dedicated buffer output can provide the

signal for each transducer input.

A Modbus Gateway option allows the monitor to provide static variables, statuses, event list, time and date information directly to any Modbus client, including Distributed Control Systems (DCSs), Supervisory Control and Data Acquisition (SCADA) systems, Programmable Logic Controllers (PLCs), or System 1 software. The monitor uses an internal counter and a Modbus client/master time reference to generate time and date information. Users can upgrade monitors without the Modbus Gateway by ordering the 1900/01 Communications Upgrade (see the Ordering Information section).

Channel Types define the functionality for processing that will be applied to an input signal and the kind of variables or

measurement values that will be derived from this input. Channel Types also define the kind of sensor that must be

used. Transducer Channel Types include:

*Acceleration or Reciprocating Acceleration

*Velocity or Reciprocating Velocity

*Radial Vibration (shaft vibration)

*Thrust (shaft axial displacement)

*Position

*Speed
