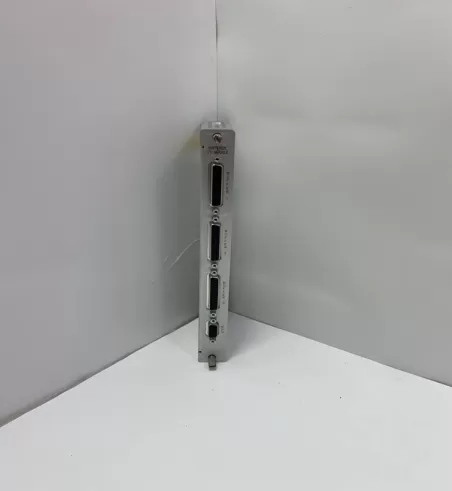

147364-01 Bently Nevada

Product Dimensions：

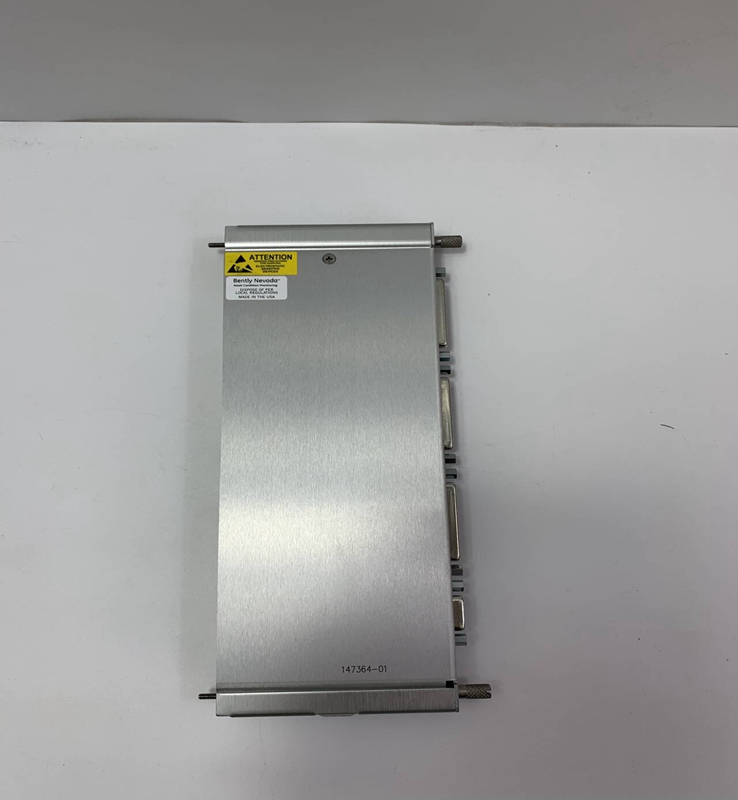

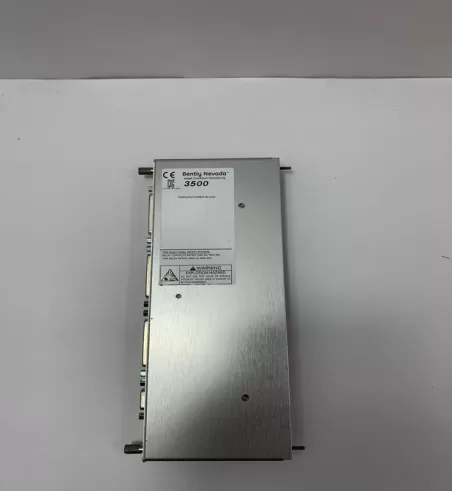

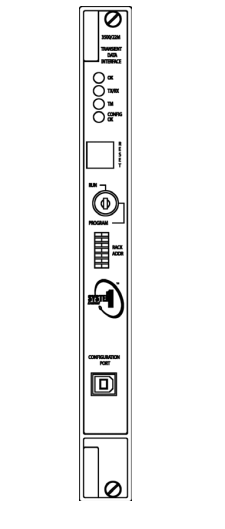

The 3500 Transient Data Interface (TDI) is the interface between the 3500

monitoring system and GE’s System 1* machinery management software. The

TDI combines the capability of a 3500/20 Rack Interface Module (RIM) with the

data collection capability of a communication processor such as TDXnet.

The TDI operates in the RIM slot of a 3500 rack in conjunction with the M series

monitors (3500/40M, 3500/42M, etc.) to continuously collect steady state and

transient waveform data and pass this data through an Ethernet link to the host

software. (Refer to the Compatibility section at the end of this document.) Static

data capture is standard with the TDI, however using an optional Channel

Enabling Disk will allow the TDI to capture dynamic or transient data as well. The

TDI features improvements in several areas over previous communication

processors and incorporates the Communication Processor function within the

3500 rack.

Although the TDI provides certain functions common to the entire rack it is not

part of the critical monitoring path and has no effect on the proper, normal

operation of the overall monitor system. Every 3500 rack requires one TDI or

RIM, which always occupies Slot 1 (next to the power supplies).

For Triple Modular Redundant (TMR) applications, the 3500 System requires a

TMR version of the TDI. In addition to all the standard TDI functions, the TMR TDI

also performs “monitor channel comparison”. The 3500 TMR configuration

executes monitor voting using the setup specified in the monitor options. Using

this method, the TMR TDI continually compares the outputs from three (3)

redundant monitors. If the TDI detects that the information from one of those

monitors is no longer equivalent (within a configured percent) to that of the other

two monitors, it will flag the monitor as being in error and place an event in the

System Event List.
