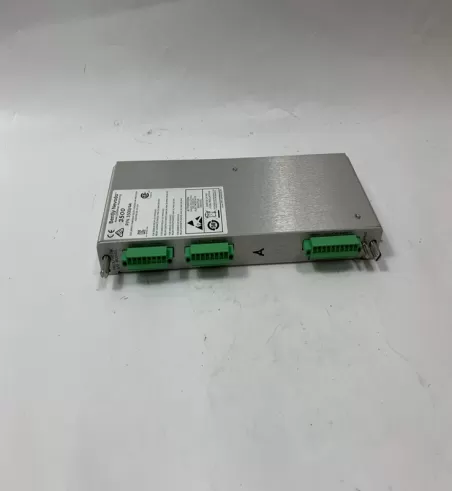

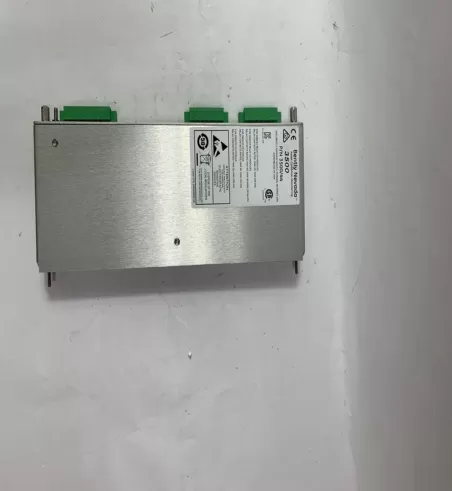

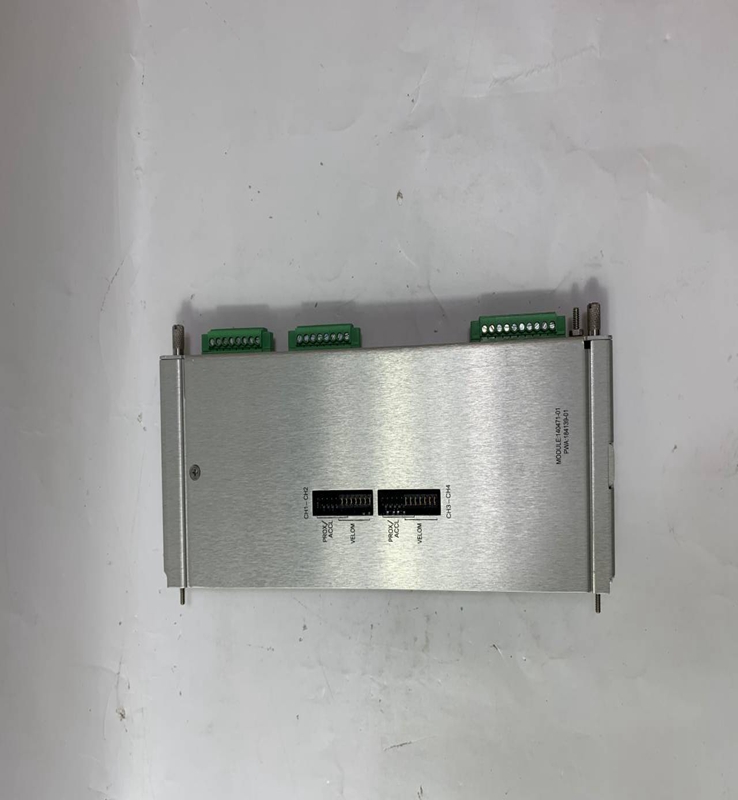

140471-01 Bently Nevada

Product Dimensions：

The 3500/64M Dynamic Pressure Monitor is a single slot, fourchannel monitor that accepts input from high temperature

pressure transducers and uses this input to drive alarms. The

monitor’s one measured variable per channel is bandpass

dynamic pressure.

You can use the 3500 Rack Configuration Software to

configure the bandpass corner frequencies along with an

additional notch filter. The monitor provides a recorder output

for control system applications.

The primary purpose of the 3500/64M Dynamic Pressure

Monitor is to provide the following:

l Machinery protection by continuously comparing

monitored parameters against configured alarm

setpoints to drive alarms l Essential machine information for operations and maintenance personnel

Each channel, depending on configuration, conditions its

input signal to generate various parameters called

measured variables. You can configure alert and danger

setpoints for each active measured variable.

Low and high filtering modes are options for a

channel pair. Channels 1 and 2 form a pair, and

channels 3 and 4 are the other pair. You may

select different band pass options on each

channel of a channel pair. However, the

channels within the pair must operate in the

same filtering mode.

You can set up the signal processing so that

the monitor feeds only the channel 1 input to all

four channels. This feature is called Cascade

Mode and is denoted as 1 >ALL in the 3500 Rack

Configuration Software.

In Cascade Mode, you can select filter mode

options for a channel pair only. One transducer

provides input to four channels for different

filtering requirements. As a result, you can

configure four separate bandpass filter options

and four separate full-scale ranges with one

transducer input.

The two modes of filtering provide different

qualities of filtering.

We have the same series of models in stock.  If you don't find the model you need, please contact us and we will provide you with an official quotation！

Bently 330930-045-00-05

Bently 330930-040-00-05

Bently 330130-080-00-05

Bently 330980-50-05

Bently 330180-90-05

Bently 330180-91-05

Bently 330101-00-24-10-02-05

Bently 3500/22M-01-01-00

Bently 3500/93-01-00-00-00

Bently 172103-01

Bently 3500/15-02-02-RU

Bently 3500/25-02-03-RU

Bently 3500/65-01-00

Bently 1900/65A-00-00-01-00-00

Bently 18745-03

Bently 330130-080-00-00

Bently 3500/61 163179-02

Bently 40113-02

Bently 3500/61

Bently 133819-02

Bently 149369-01

Bently 125800-01

Bently 176449-01

Bently 125680-01

Colour：new                                  Warranty: 12 months

Lead Time：3-day working day     Price: Please contact us

Shipping Port: Xiamen, China        Payment:T/T

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service
