BENDER IR425-D4M1C2-2 Insulation Monitoring Device for Unearthed

Brand: BENDER

Model number: IR425-D4M1C2-2

Colour: new

Warranty: 12 months

Lead Time: 3-day working day

Country of origin: Germany

Price: Please contact us

Product weight: 0.15kg

Shipping Port: Xiamen, China

Payment:T/T

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

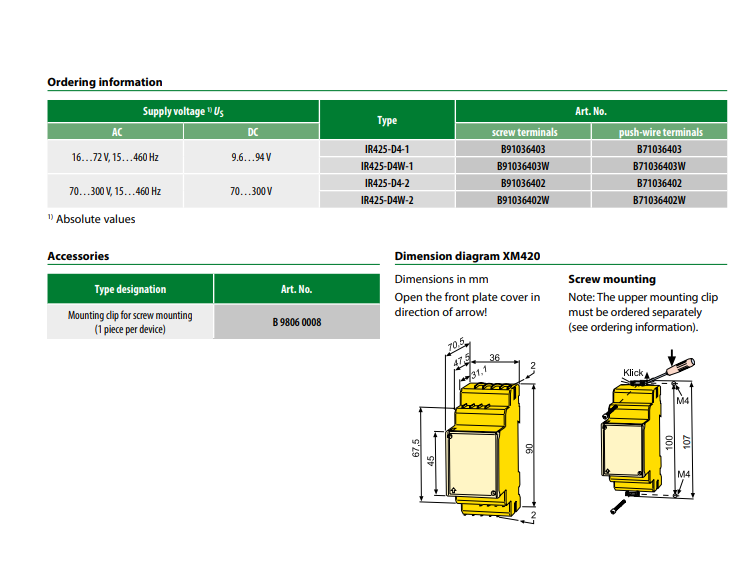

Product Dimensions:

BENDER  IR425-D4M1C2-2 Insulation monitoring device for unearthed

· Ground-fault monitoring device for AC and DC IT systems

· Application control circuits

· According to IEC 61557-8

· Two separately configurable response values

· Multi-functional LC display

The ISOMETER® of the IR425 series is designed to monitor the insulation resistance of ungrounded AC/DC control circuits (IT systems) 0…300 V. DC components existing in AC/DC systems do not influence the operating characteristics. An external supply voltage allows de-energized systems to be monitored too.

AC/DC control circuits in the industrial sector, mechanical engineering, power plants, elevators, automation systems etc. • AC/DC control and auxiliary circuits in accordance with DIN EN 60204-1 “Electrical equipment of machines”, IEC 60204-1, EN 60204-1

• AC/DC auxiliary circuits in accordance with DIN VDE 0100-725 (VDE 0100-725)

• Smaller AC/DC IT systems such as lighting systems

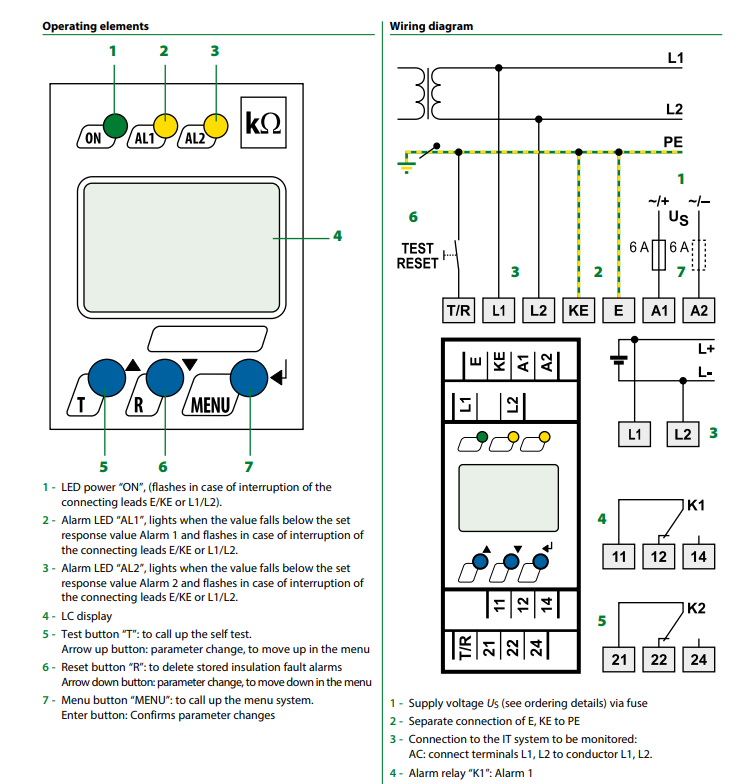

1 - LED power “ON”, (flashes in case of interruption of the connecting leads E/KE or L1/L2). 2 - Alarm LED “AL1”, lights when the value falls below the set response value Alarm 1 and flashes in case of interruption of the connecting leads E/KE or L1/L2. 3 - Alarm LED “AL2”, lights when the value falls below the set response value Alarm 2 and flashes in case of interruption of the connecting leads E/KE or L1/L2. 4 - LC display 5 - Test button “T”: to call up the self test. Arrow up button: parameter change, to move up in the menu 6 - Reset button “R”: to delete stored insulation fault alarms Arrow down button: parameter change, to move down in the menu 7 - Menu button “MENU”: to call up the menu system. Enter button: Confirms parameter changes
