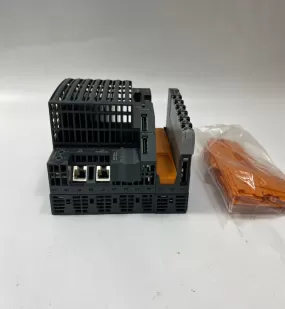

X20BT9400 B&R

Product Dimensions：

To connect an X20 system to an X67 system, a bus transmitter is simply connected to the end of the X20 block so that the X2X Link cable can be clamped. The bus transmitter also provides the X2X Link supply voltage of the X67 system. The X67 system power supply module that was previously always necessary can be omitted.

• X2X Link bus transmitter

• For seamless expansion of the system

• Up to 100 m segment length

• Supply for internal I/O power supply

• Integrated X2X Link power supply of the X67 system

• Operation only on the rightmost slot

The bus transmitter module is only permitted to be operated with a bus module where the internal I/O power supply is connected through (e.g. X20BM11).

If the supply is used for the internal I/O power supply, this potential group is not permitted to be supplied by any other module. An I/O module with bus module X20BM01 must be used to isolate the potential group.

1) Maximum power consumption for X67 X2X Link power supply.

2) The specified values are maximum values. For examples of the exact calculation, see section "Mechanical and electrical configuration" in the X20 system user's manual.

3) In parallel operation with an X67 system supply module, the nominal power of the bus transmitter is not permitted to be added to the total power. Only the power provided by system supply module X67PS1300 is permitted to be used to calculate the total number of X67 modules.

The bus transmitter has an integrated internal I/O power supply feed. This saves a power supply module for the last potential group.

It is important to note that this potential group is isolated from the remaining potential groups by an I/O module with bus module X20(c)BM01
