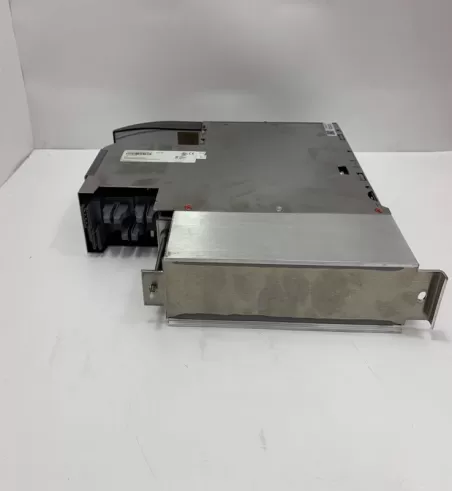

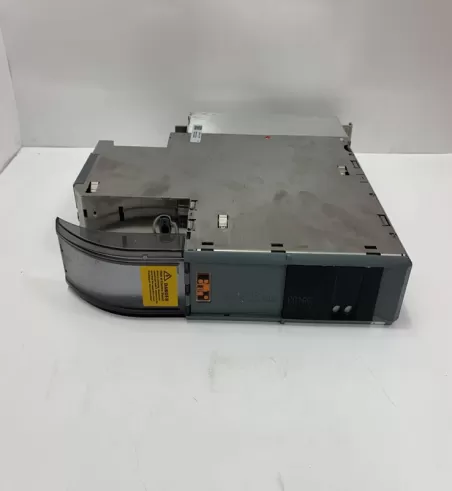

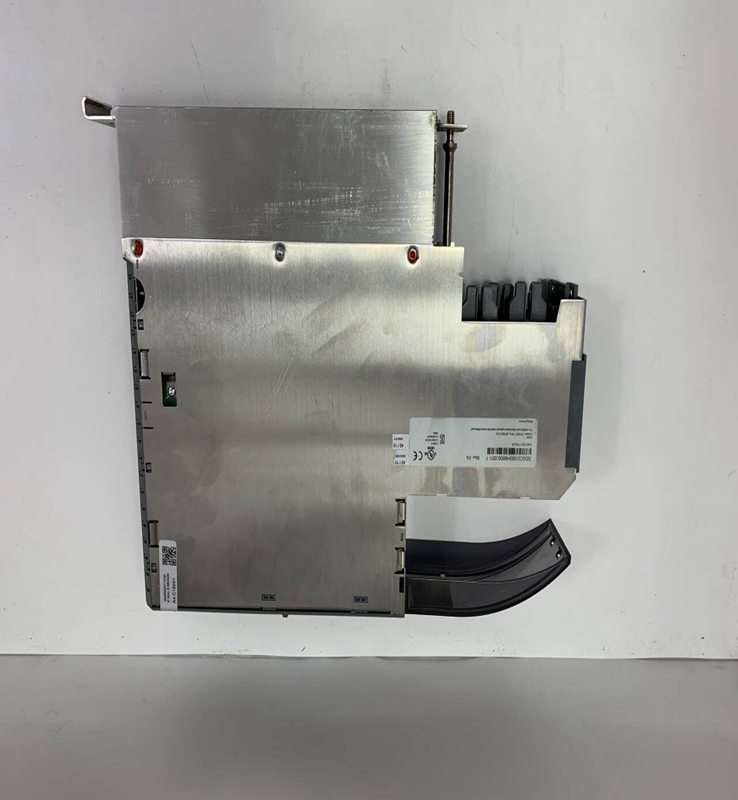

8B0C0160HW00.001-1 B&R

Product Dimensions：

1) Continuous power on the 24 VDC output

2) Valid under the following conditions: 750 VDC DC bus voltage, 55°C ambient temperature, installation elevation <500 m above sea level, no derating due

to cooling type.

3) The output voltage is limited to max. 60 VDC in the event of error.

4) When switching off, there is no active discharge of the output and the loads connected to it.

5) Continuous operation at an installation elevation of 500 m to 4,000 m above sea level is possible taking the specified reduction of continuous power into

account. Requirements that go beyond this must be arranged with B&R.

6) These dimensions refer to the actual device dimensions including the respective mounting plate. Make sure to leave additional space above and below the

devices for mounting, connections and air circulation.

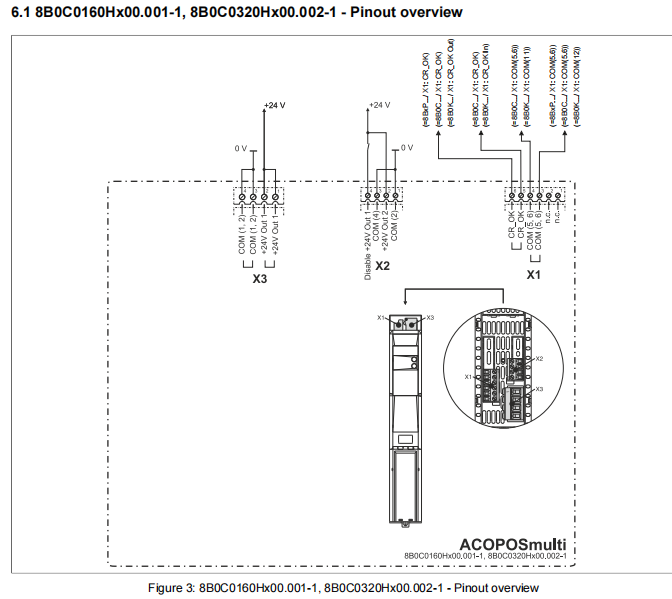

To obtain a defined reference of ground to ground potential, B&R recommends grounding the two COM

connections (1, 2) on connector X3. Alternatively, grounding of the COM (2) connection is possible

on connector X2.

1) n... Number of width units on the mounting plate

2) For sufficient air circulation, a clearance of at least 60 mm must be provided above the mounting plate and below the module.

To ensure that the fan modules in the mounting plate can be replaced easily, at least 250 mm clearance must be available below the module.

3) nnnn indicates the number of slots (e.g. 0160 refers to 16 slots)
