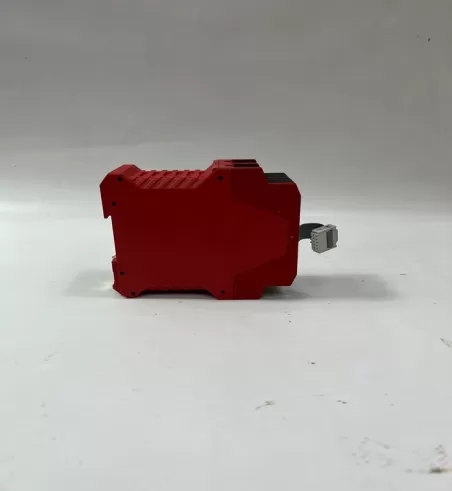

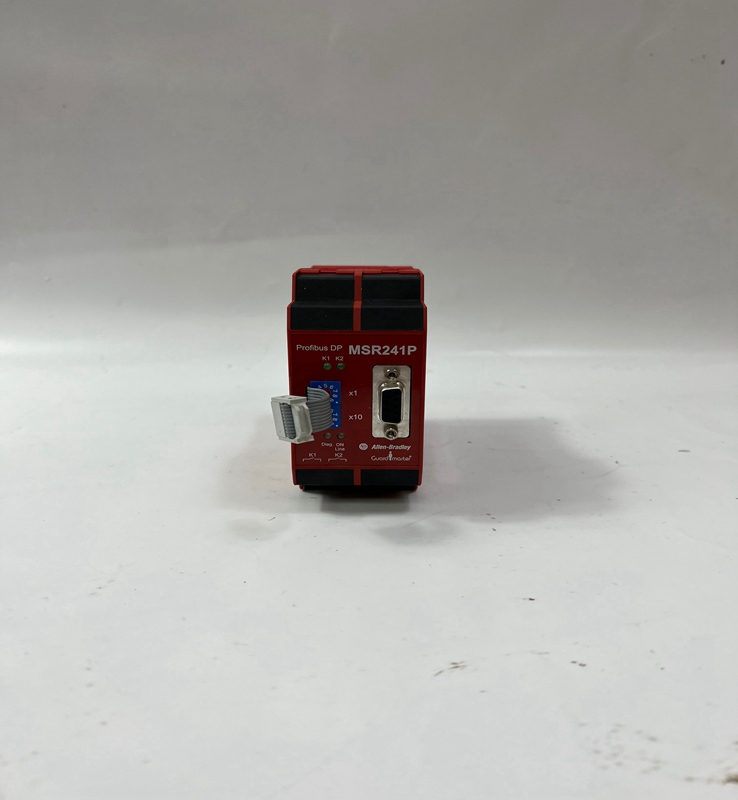

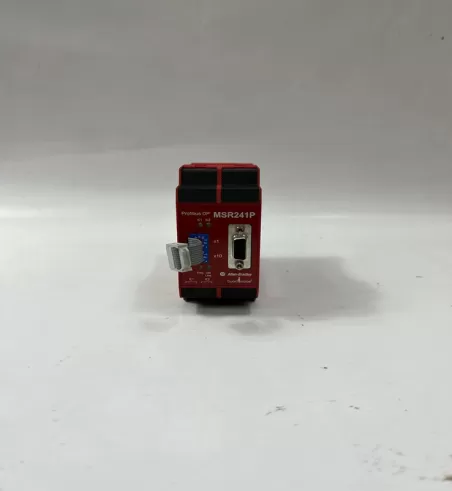

MSR241P 440R-H23186 Allen-Bradley Safety Relay

Brand：Allen-Bradley Model number：MSR241P

Country of origin: United States Product weight：0.175kg

Product Details：

MSR241P 440R-H23186 Allen-Bradley Safety Relay

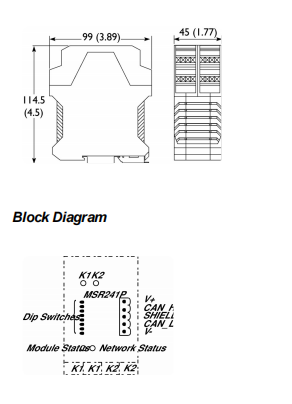

Product Dimensions：

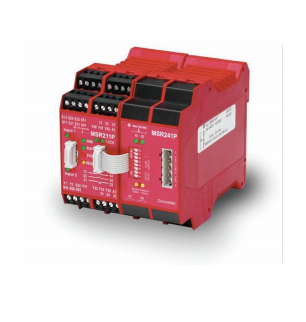

Description The MSR241P is a DeviceNet™ communications module for the modular Minotaur MSR200 family of monitoring safety relays. It can be connected to either the MSR210P, MSR211P, or MSR230P modules to provide diagnostic and I/O status information to remote locations.

The MSR241P is connected via the flat ribbon cable to the base module or the last connected expansion module, depending on the system configuration. Data transfer and power supply are routed through the same bus cable and connectors.

The MSR241P has two nonsafety rated relay outputs that are activated with the last two bits of the one input byte.

The baud rate and address is set by means of the dipswitch on the front panel. The connected supervisory monitoring or data acquisition system can process and store the data, display it, and record the reason causing a shutdown, along with the time and date of each such occurrence. This makes fault diagnosis much easier.

FeaturesDeviceNet™ data transmission Switch selectable baud rates: 125 K, 250 K, 500 K Switch selectable address 45 mm DIN Rail housing Four diagnostic LEDs Removable terminals Group two only slave
