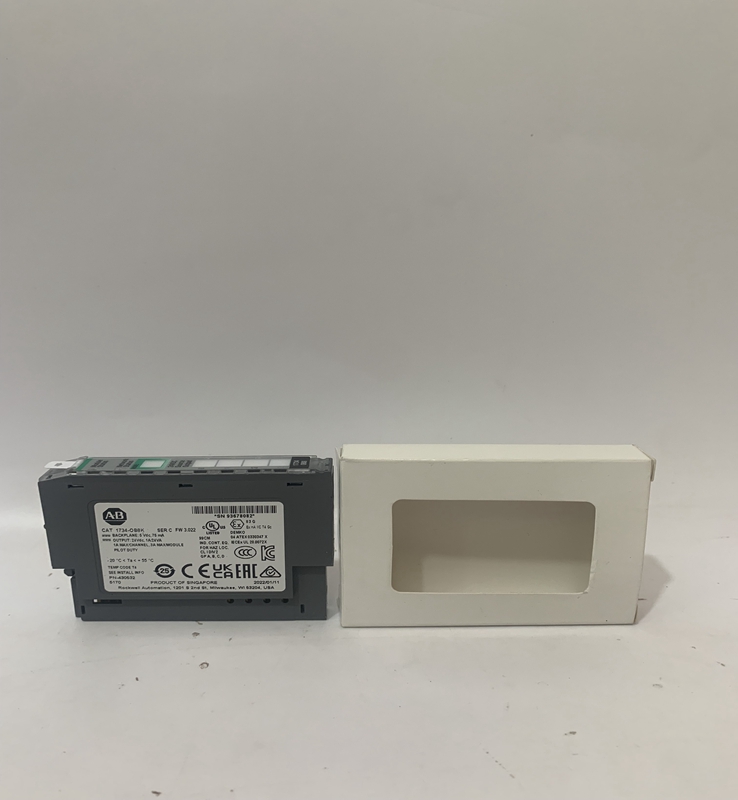

1734-OB8 Allen-Bradley Ser B Controlnet Modular Repeater Adapter

Brand：Allen-Bradley Model number：1734-OB8

Country of origin: United States Product weight：0.040kg

HS code：8471800000

Product Details：

1734-OB8 Allen-Bradley Ser B Controlnet Modular Repeater Adapter

Product Dimensions

The Allen-Bradley 1734-OB8 is a POINT IO module that features Eight (8) Discrete, non-isolated sourcing output channels. It has One (1) group of channels with Eight (8) outputs per channel. It delivers a nominal actuating voltage of 24VDC and compatible with any POINT IO communication adapter for implementing distributed I/O architecture. This module requires 1734-TB or 1734-TBS wiring base assembly.

The 1734-OB8 has a surge current rating of 2 Amps for 10 milliseconds that is repeatable for 3 seconds. It comes with 8 yellow indicator lights for the output status and 2 green/red for the module/network status. The 1734-OB8 has a thermal dissipation of 6.8BTU/hour. The product's isolation voltage is 50 Volts continuous tested at 2500 Volts DC for 60 seconds. The 1734-OB8’s external DC power supply is 32mA with an approximate dimension of 56.0 x 12.0 x 75.5 millimeters with a wiring category of 2 ON-signal ports. The Allen-Bradley 1734-OB8 has an operating temperature of -25 to 55 degrees Celsius and a non-operating temperature of -40 to 85 degrees Celsius. Its operating shock is 30G and its non-operating shock of 50G. Its vibration is 5G at 10 to 500 Hertz and relative humidity of 5 to 95%, non-condensing.

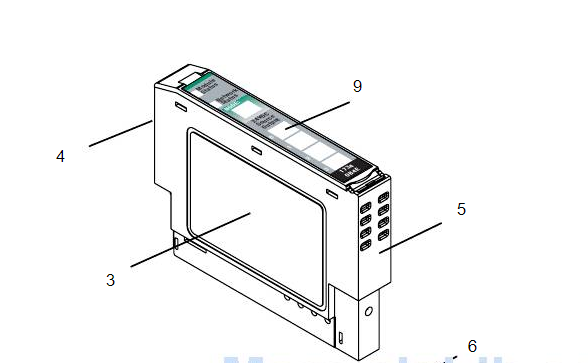

Installing the Wiring Base 1. Position wiring base vertically above installed units (interface, power supply or existing module. 2. Slide the wiring base down allowing the interlocking side pieces to engage the adjacent module or interface. 3. Press firmly to seat the wiring base on the DIN rail. The wiring base will snap into place. 4. To remove the wiring base from the DIN rail, remove the module, and use a small bladed screwdriver to rotate the base locking screw to a vertical position. This releases the locking mechanism. Then lift straight up to remove. Installing the Removable Terminal Block A removable terminal block is supplied with your terminal base. To remove, pull up on the RTB removal handle.
