889D-F8AB-10 Allen-Bradley

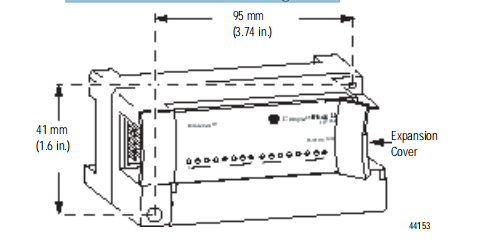

Product Dimensions：

When setting the node address on the base block, note that each base

block comes with its internal program set for node address 63. To

reset the node address, adjust the switches on the front of the base

block. The two switches are most significant digit (MSD) and least

significant digit (LSD). You can set switches between 00 and 63.

The base block reads the rotary switches only when power is

applied. Switch settings between 64 and 99 cause the base block to

use the last valid node address stored internally

You can also set the node address through RSNetWorx for DeviceNet

software or a similar configuration tool.

When you use software configuration for the node address, set the

switches between 64 and 99.

Mount the base block to a panel or DIN rail. We recommend that you

ground the panel or DIN rail before mounting the block.

The analog base module can accommodate a maximum of two

digital expansion modules.

For panel mounting, use these steps.

1 . Place the block against the panel where you want it mounted.

2. Gently pull and position the expansion cover to the left.

3. Place a center punch, nail, or similar device through the

mounting holes in the block and make two marks on the

panel at the lower-left and upper-right corners of the module.

4. Remove the block and drill two holes in the panel to

accommodate each of the mounting screws.
