800T-XAP Allen-Bradley

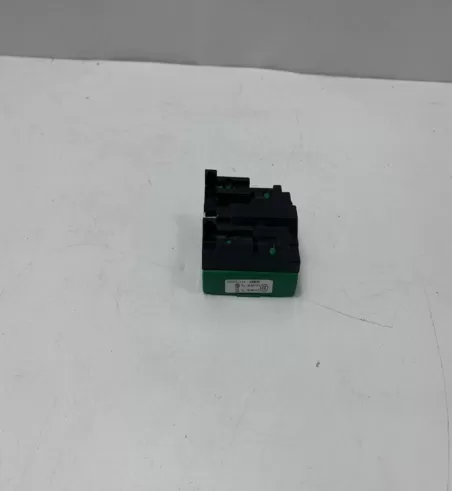

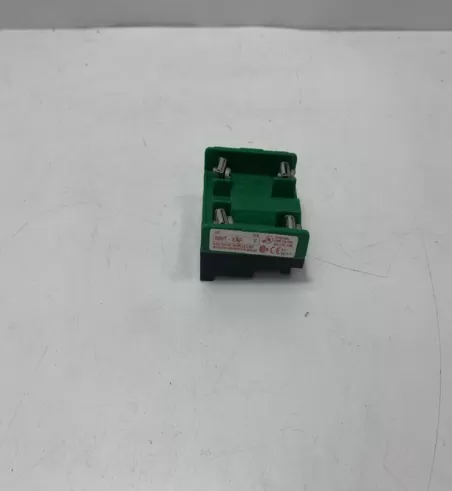

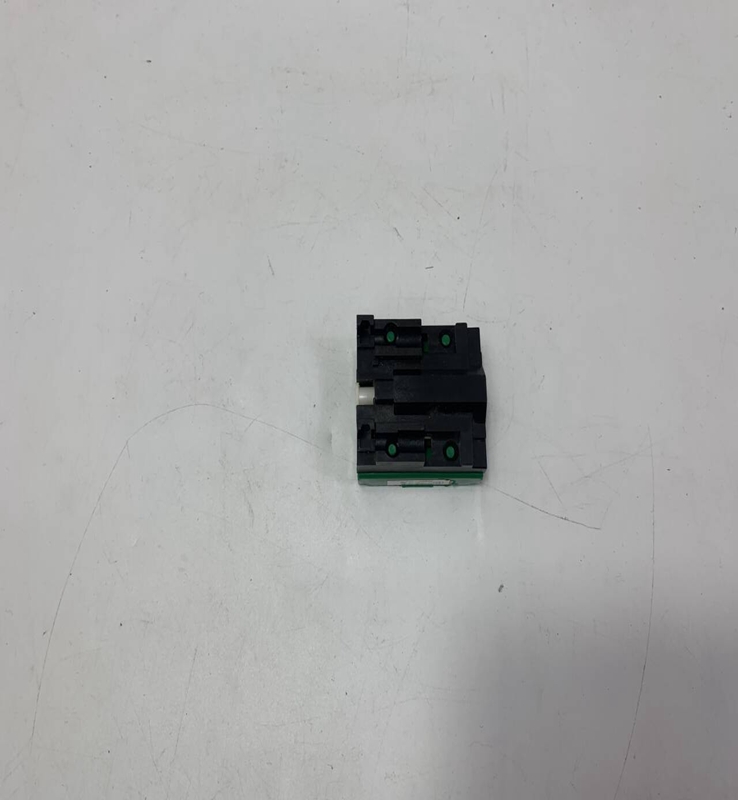

800T-XAP Allen-Bradley Sealed Switch Contact Block

Brand：Allen-Bradley Model number：800T-XAP

Country of origin: United States Product weight：0.55kg

HS code：8517623990

Product Details：

Product Dimensions：

800T devices should be mounted in and properly bonded to, a grounded metal enclosure. When installing the device in a metal enclosure, maintain 1/2” (12.7) minimum clearance between exposed

metal parts of contact block and enclosure.

800T devices are rated Type 4 and 13, 800H devices are rated Type 4, 4X and 13. Install on a flat, smooth surface of an enclosure. Devices maintain their Type ratings only when properly mounted in an enclosure with

the same rating(s).

Emergency Stop Push Buttons are UL NISD Listed when mounted in a non-ventilated enclosure only

1. Remove the following parts from the unit:

Lens or cap, mounting ring, thrust washer and legend plate or trim washer.

2. Determine the correct number of gaskets to be used per the table in Fig. 1.

3. Place the unit into the mounting hole from the rear of the panel.

4. Position legend plate or trim washer and then thrust washer, with thrust washer tang engaging legend plate or trim washer and panel notches.

5. Install mounting ring and tighten against thrust washer to 25 - 30 lb-in (2.8 - 3.4 Nm).

6. Install lens or cap to operator.

Available Mounting Accessories:

Wrench for Octagonal Mounting Ring - Catalog No. 800T-N245

Wrench for 800H Pilot Light Mounting Ring - Catalog No. 800H-N10

Device Bonding Kit for 800T devices to meet the bonding requirements of CSA Standard C22.2 No. 0.4 - Catalog No. 800T-N300 (F)

We have the same series of models in stock. If you don't find the model you need, please contact us and we will provide you with an official quotation！
