800H-TFRXT6 Allen-Bradley

Product Dimensions：

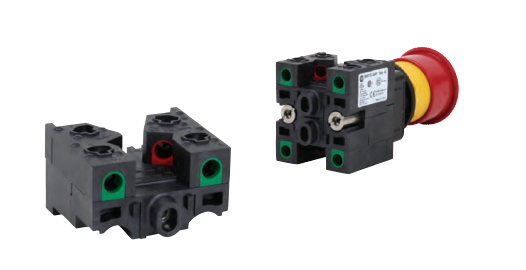

The Bulletin 800TC-XAF Explosion-Protected Contact Block is a robust

solution for Class I Div. 2 environments, especially for E-stop and high￾vibration applications where typical reed switch solutions are undesirable.

Emergency Stop Applications – The magnetically operated design

of reed switches prevents their use with emergency stop devices. In

contrast, the 800TC-XAF explosion-protected contact block features a

positive-opening normally closed contact as required for conformance

with global emergency stop standards. Additionally, the design allows

contact block stacking which increases application fl exibility and

accommodates safety circuits for illuminated E-stop devices.

High Vibration Applications – Reed switches are hermetically sealed

in a glass envelope, which can be fragile and susceptible to damage

from stress related to high vibration. The body of the 800TC-XAF

explosion-protected contact block is molded from an extremely durable

thermoplastic resin, resulting in a contact block assembly that will

maintain Class I Div. 2 integrity in the harshest applications.

In addition to the explosive nature of fl ammable gases, liquids or vapors

potentially present in Class I Div. 2 applications, these materials can also

be highly corrosive. With that in mind, careful attention was given to the

material selection of the components used in the 800TC-XAF explosion￾protected contact block to help ensure safe, reliable operation in the

most demanding environments:

• Glass-fi lled polyester contact block body

• Stainless steel hardware, including the terminal screws/clamps

and mounting screws

• Ceramic plunger

• Bifurcated spanner with pure fi ne silver contact tips

Features and Benefi ts

• A reliable UL 1203 certifi ed solution

for Class I Div. 2 environments

(Groups A, B, C and D)

• Rugged construction ideal for use

in applications involving shock

and vibration

• 1-NO, 1-NC, A600-rated contacts

• Positive opening NC contact

for global E-stop functionality

• For use with a wide range

of push buttons:

 – 800T 30 mm Type 4, 13

 – 800H 30 mm Type 4, 4X, 13

 – 800H/HL Type 7 and 9

 – 800R stations

• Compatible with a broad variety

of device types:

– Momentary contact push buttons

– Trigger action E-stops

– Push-pull devices

– Selector switches

– Push-to-test pilot lights

State-of-the-art contact

switching for hazardous

location applications.
