700-FEB3TU23 Allen-Bradley Timing relay

Inquire Now Next Product

Product Details：

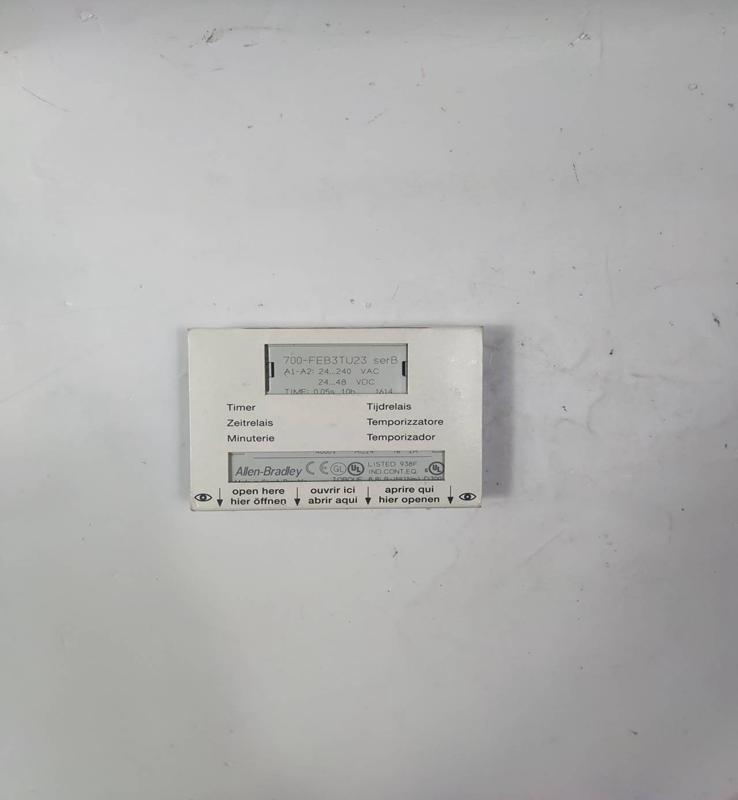

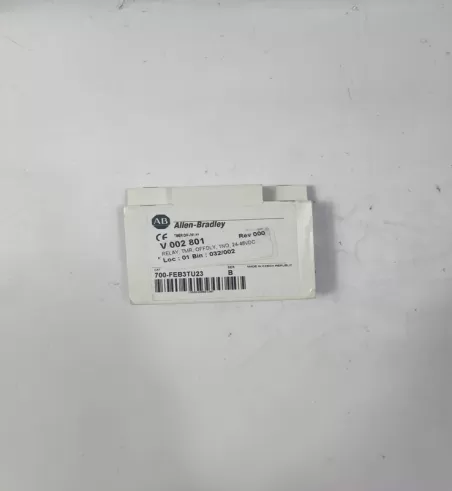

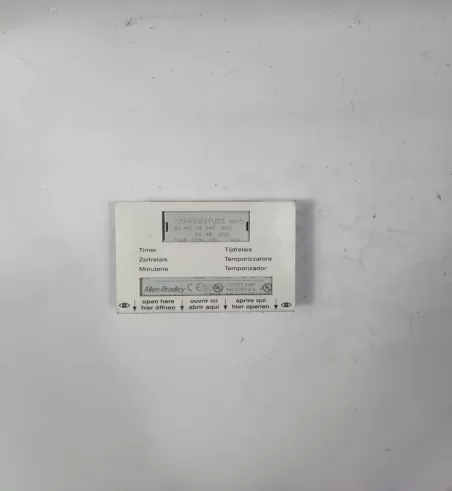

700-FEB3TU23 Allen-Bradley Timing relay

Brand：Allen-Bradley Model number：700-FEB3TU23

Country of origin: United States Product weight：0. 55kg

HS code：8517623990

Product Dimensions：

Timing Range Timing Relay, Timing Range 0.05 s ... 10 hr, Input

Voltage 24-48V AC/DC / 24-240 V AC, OFF-Delay, 1 NO (SPDT)

· Models available as single-function or multifunction

providing application flexibility.

· Mounting options available as DIN or Plug-in to suit

application preference.

· Meets a number of international certifications

SPECIFICATIONS
Timing Function				OFF Delay
Time Range(s)				50ms ... 1s 500ms ... 10s 3s ... 1min 30s ... 10min 3min ... 1h 30min ... 10h
Reset On Power Supply				100 ms
				0.5 VA/W
Umin, Supply Voltage, DC, Min				24 V DC
				48 V DC
Umin, Supply Voltage, AC, Min				24 V AC
Umax, Supply Voltage, AC, Max 240 V AC
Contact Configuration		1 CO
Time Setting Accuracy				± 5 %
Storage Temperature, Max			85		°C max
IP rating, body / housing IP40
IP Rating, Terminals IP20
Mechanical Service Life		20000000 cycles
Height				80 mm
Depth	70 mm

We have the same series of models in stock. If you don't find the model you need, please contact us and we will provide you with an official quotation！
