5069-SERIAL Allen-Bradley

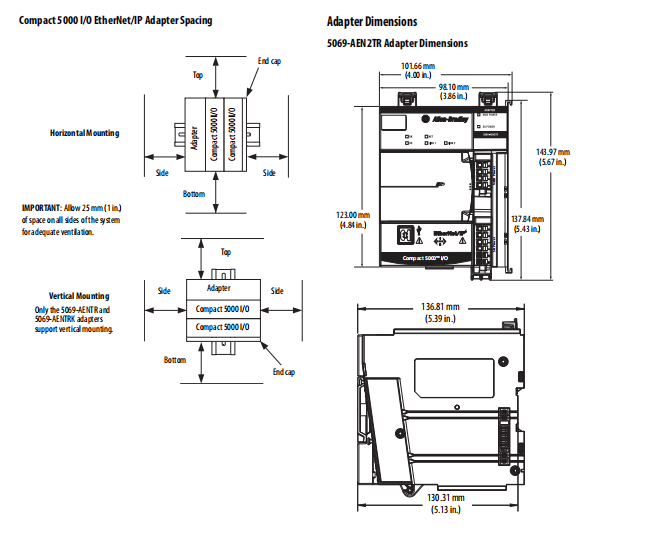

Product Dimensions：

This product is grounded through the DIN rail to

chassis ground. Use zinc-plated chromate-passivated steel DIN

rail to assure proper grounding. The use of other DIN rail

materials (for example, aluminum or plastic) that can corrode,

oxidize, or are poor conductors, can result in improper or

intermittent grounding. Secure DIN rail to mounting surface

approximately every 200 mm (7.8 in.) and use end-anchors

appropriately. Be sure to ground the DIN rail properly. See

Industrial Automation Wiring and Grounding Guidelines,

Rockwell Automation publication 1770-4.1 for more information.

You can use the following DIN rails with the adapters:

• EN50022 - 35 x 7.5 mm (1.38 x 0.30 in.)

• EN50022 - 35 x 15 mm (1.38 x 0.59 in.) - 5069-AENTR and

5069-AENTRK only

System Power Considerations

Compact 5000 I/O EtherNet/IP adapters provide power to a

Compact 5000 I/O system via RTBs that are connected to external

power supplies and installed on the adapter.

The RTBs provide the following power to the system

• You must use SELV-listed power supplies for MOD power and

SA power if there are Functional Safety modules that are

connected to the Compact 5000 I/O system.

• If the adapter is used in a safety system, more restrictions can

apply to the power supply that is used for SA power.

• Not all Class 2/SELV-listed power supplies are certified for use

in all applications, for example, nonhazardous and hazardous

environments.

Compact 5000 I/O EtherNet/IP adapters ship DHCP-enabled and

with their rotary switches set to 000.

If the network uses 192.168.1.x, we recommend that you use the rotary

switches to set the last octet of network IP address. Valid numbers

range from 001…254.

To use the rotary switches to set the IP address, turn the switches to the

appropriate numbers before you install the adapter.

• 5069-AEN2TR- The bottom switch represents the first digit

in the octet, the middle switch represents the second digit, and

the top switch represents the third digit.

• 5069-AENTR and 5069-AENTRK - The left-most switch

represents the first digit in the octet, the middle switch

represents the second digit, and the right-most switch

represents the third digit.
