5069-L340ER Allen-Bradley Processor module

Product Details：

5069-L340ER Allen-Bradley Processor module

Brand：Allen-Bradley Model number：5069-L340ER

Country of origin: United States Product weight：0.75kg

HS code：8517623990

Product Dimensions：

To achieve that suitability rating, you may have to perform diagnostic testing and monitoring of the safety function. One diagnostic test

method is to configure the safety output channel for Safety Pulse Test to test the circuit for short circuits to 24V DC.

• We strongly recommend that you connect separate shielded cables to the P terminal and the N terminal to reduce the possibility of

a wire short between the terminals. If a wire-short fault is detected across the P-N pair, the module outputs are turned off, but the

actuator that is connected to it remains on.

• Configure the application so that No Load and Overload conditions are only detectable at the P terminal.

For Category 4 applications, if your application remains in safe state, that is, the output is off, for a prolonged duration, we recommend that you take one of the following actions:

• Apply output monitoring at the actuator. The monitoring can be direct or indirect.

• Limit the safe state to no more than 24 hours.

• Conduct functional test if safe state dwell time increases.

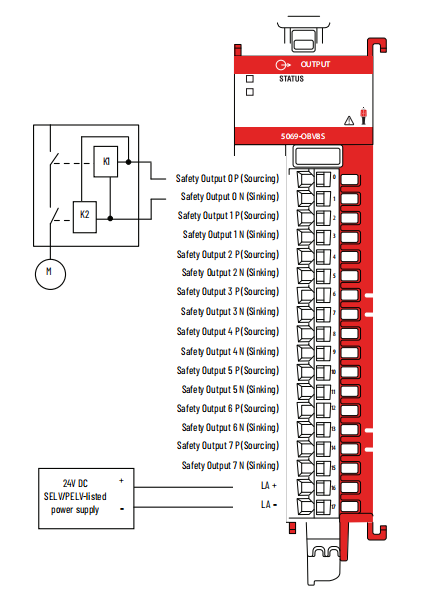

The terminals for each channel function as a Bipolar connection pair

when you use a 5069-OBV8S or 5069-OB8VSK module in Bipolar

switching mode. For example, the Safety Output 0 P (Sourcing)

terminal and Safety Output 0 N (Sinking) terminal are a Bipolar

connection pair. That is, they are a P-N pair.

When the module is in Bipolar switching mode, you must connect the

device to both terminals.

We have the same series of models in stock. If you don't find the model you need, please contact us and we will provide you with an official quotation！
