5069-AENTR Allen-Bradley

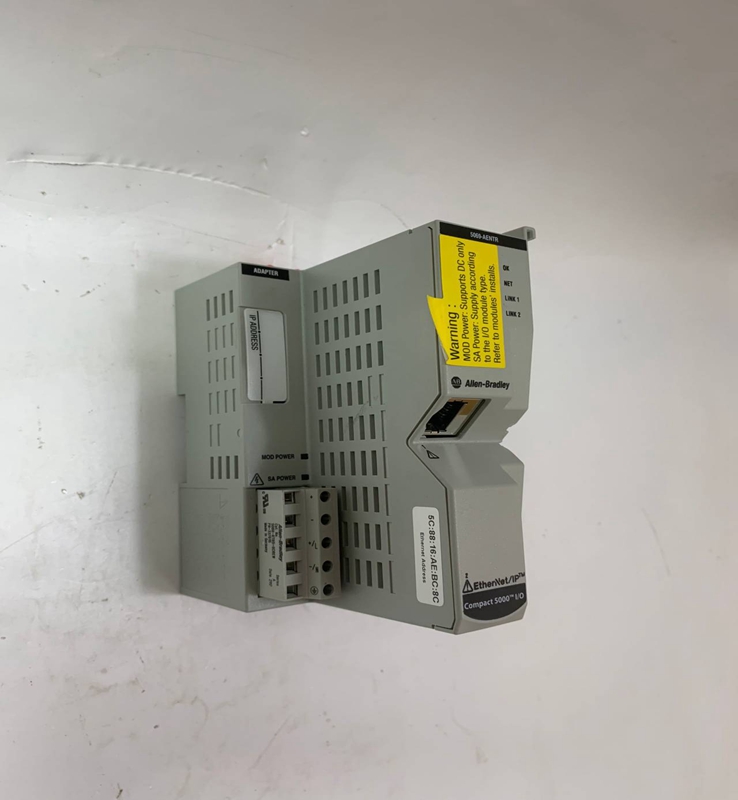

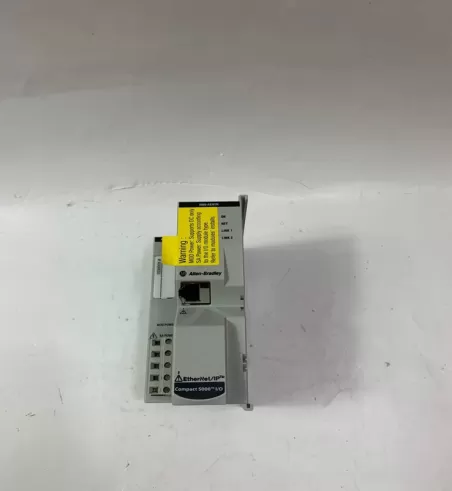

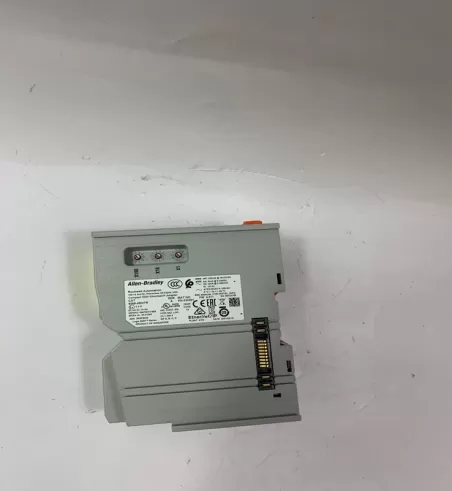

5069-AENTR Allen-Bradley Allen-Bradley Compact I/O Dual Port ENet/IP Adapter

Brand：Allen-Bradley Model number：5069-AENTR Allen-Bradley

Country of origin: United States Product weight：0.55kg

HS code：8517623990

Inquire Now Next Product

Product Details：

Product Dimensions：

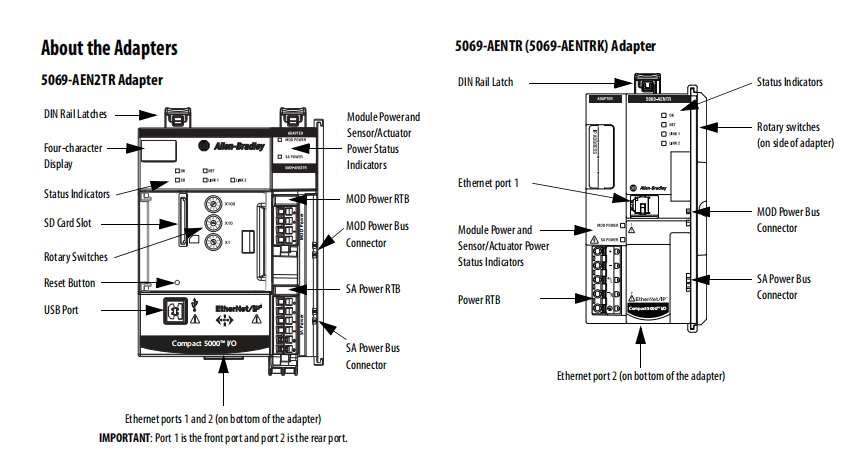

The Compact 5000™ I/O EtherNet/IP adapters perform the following functions:

• Facilitate high-speed data transfer across an EtherNet/IP network between Compact 5000 I/O modules and a Logix 5000™ controller.

• Provide system-side and field-side power to Compact 5000 I/O modules.

• Support as many as 31 Compact 5000 I/O modules

The adapters are configured with the Studio 5000 Logix Designer® application. For more information on how to use Compact 5000 I/O

EtherNet/IP adapters, including the compatible Logix 5000 controllers and Logix Designer application versions, see the publications that are listed

in Additional Resources on page 20.

The publication has been changed as follows:

• Add Waste Electrical and Electronic Equipment (WEEE) information on page 3.

• Add information about how to install an end cap on page 17.

• Update the SA power and SA power Passthrough specification for the 5069-AENTR, and 5069-AENTRK adapters on page 19.

Any illustrations, charts, sample programs, and layout examples shown in this publication are intended solely for the purposes of example. Since there are

many variables and requirements associated with any particular installation, Rockwell Automation does not assume responsibility or liability for actual use

based upon the examples shown in this publication.

Follow these rules when planning your system configuration:

• 5069-AEN2TR adapter only — You must mount the DIN rail

horizontally.

Rockwell Automation does not support a Compact 5000 I/O

system that is installed vertically if it uses a 5069-AEN2TR

adapter.

• The adapter is the left-most component in the bank.

• Local Compact 5000 I/O modules are installed to the right of

the adapter.

• The adapter can communicate with as many as 31 local I/O

modules.

• Before powerup, verify that the end cap is installed on the

right-most Compact 5000 I/O module in the system.
