500FL-B0D92 Allen-Bradley Lighting Contactor

Product Details:

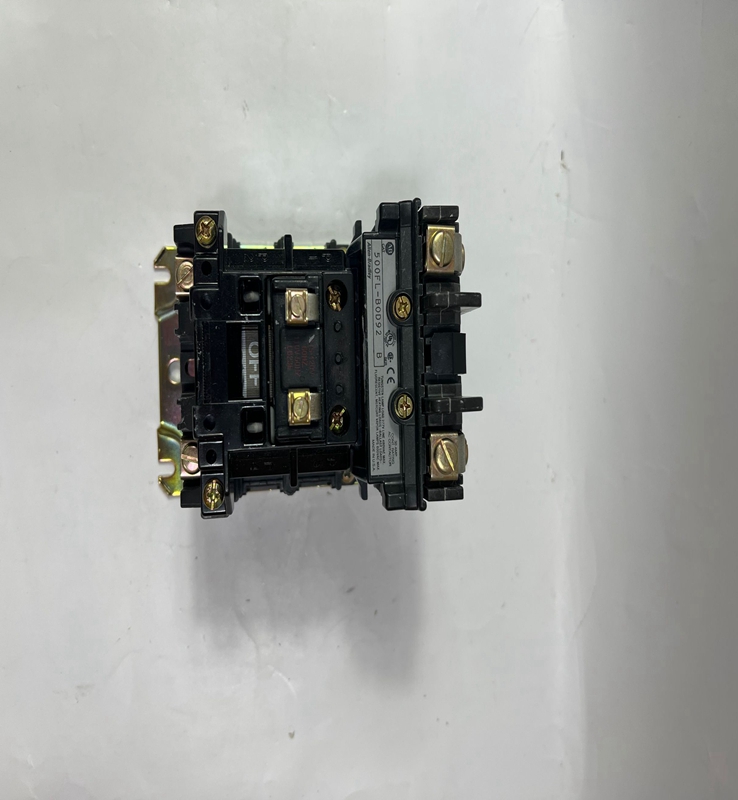

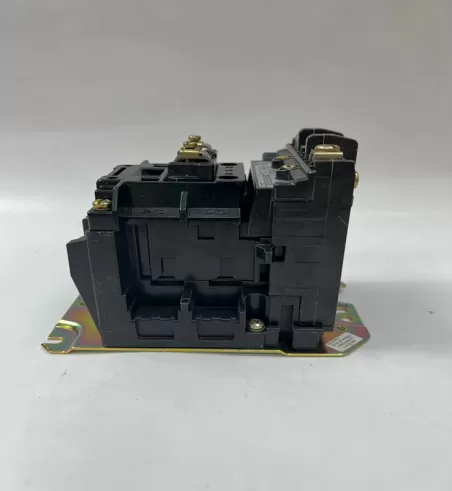

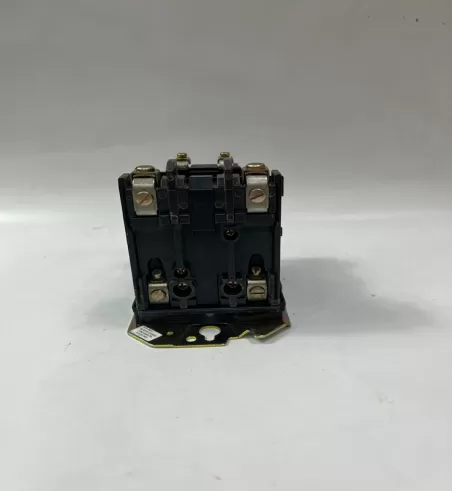

500FL-B0D92 Allen-Bradley Lighting Contactor

BrandAllen-Bradley                        Model number500FL-B0D92

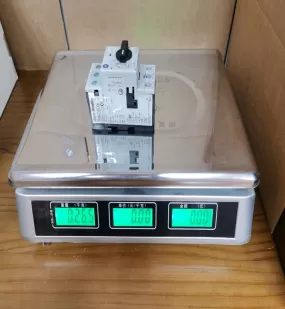

Country of origin: United States       Product weight0.55kg

HS code:8517623990

Product Dimensions:

Figure 1 is an exploded view of the contactor. Primary parts such as coils and contacts are similar in appearance for all sizes. Secondary parts such as

mounting plates, etc. will vary in appearance. See page 2 for corresponding description of part and repair part numbers.

Less Contacts, order Single Pole Contact Set as required.

Front and rear terminal assembly not available as a renewal part. Replace the complete stationary contact block and base assembly.

Front Terminal Screw Part Number is 28168-503-26 and Rear Terminal Screw Part Number is 28168-502-6.

Order as many single pole contact kits as needed.

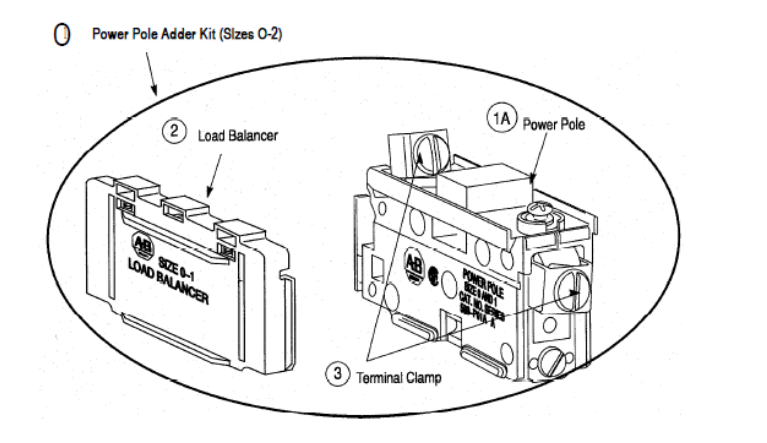

Repair Parts for Power Pole Adder Kits for Bulletin 500 and 500F Devices, Sizes 0-2

The N.O. and N.C. power poles may be field-added to all Size 0-4 Bulletin 500 line contactors and starters except the Bulletin 500L

and 500FL. Both 2 and 3 pole contactors will accept a maximum of two adder poles and 4 pole devices will accept one adder pole.

Each adder pole kit includes a mechanical load balancer to be used when only one power pole is added.

When power poles are added to Size 2, 3, or 4 (2 or 3 pole devices), the operating coil must be changed. See page 4 and refer to the

listing for the size of your contactor and order the operating coil listed for a 4-5 pole device.
