2198-H015-ERS Allen-Bradley Integrated Safety Driver

Inquire Now Next Product

Product Details：

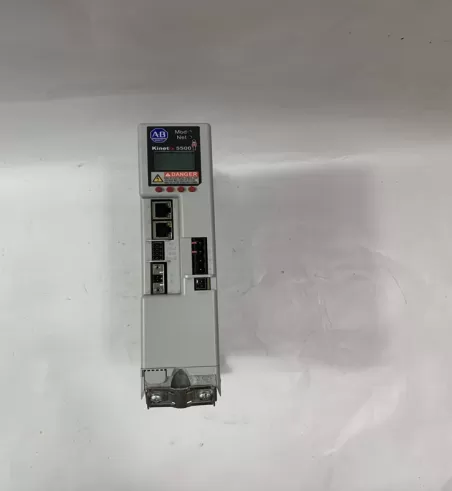

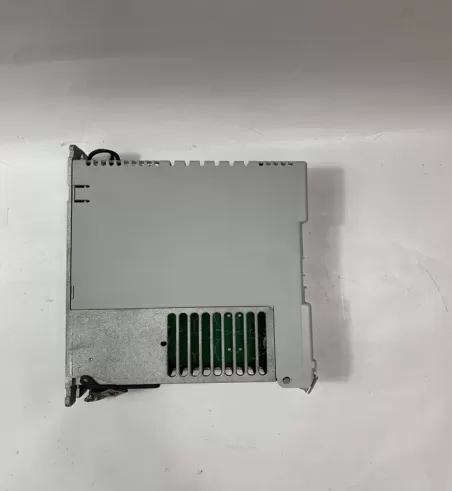

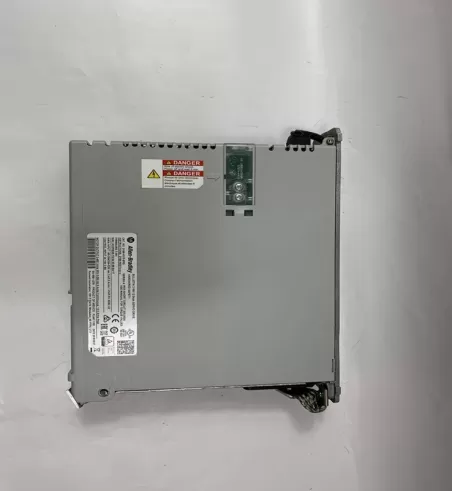

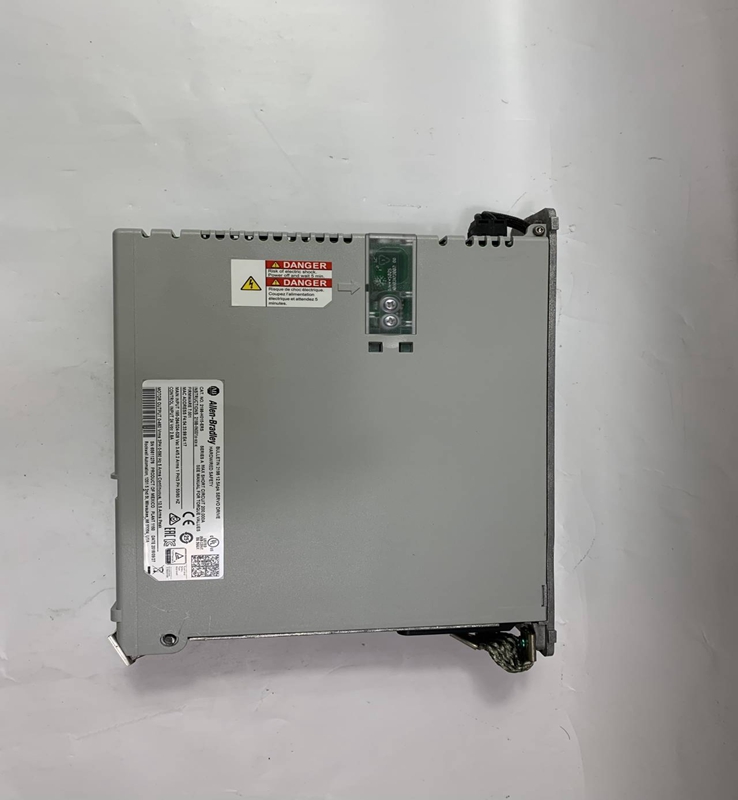

2198-H015-ERS Allen-Bradley Integrated Safety Driver

Brand：Allen-Bradley Model number：2198-H015-ERS

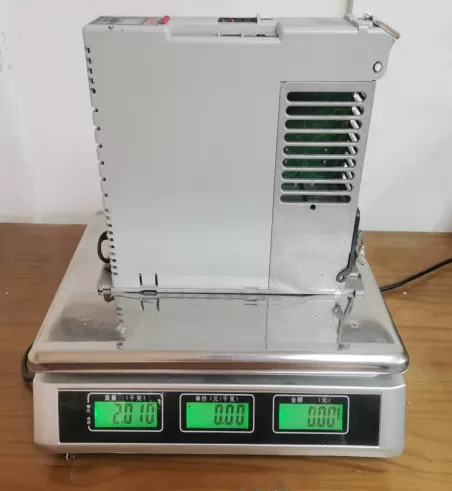

Country of origin: United States Product weight：2.07kg

HS code：8517623990

Product Dimensions：

Follow these steps to mount the drive in single-axis configurations.

1. Observe these clearance requirements when mounting a single drive to the panel:

• Additional clearance is required for cables and wires or the shared-bus connection system connected to the top of the drive.

• Additional clearance is required if other devices are installed above and/or below the drive and have clearance requirements of their own.

• Additional clearance left and right of the drive is required when mounted adjacent to noise sensitive equipment or clean wire ways.

• The recommended minimum cabinet depth is 300 mm (11.81 in.).

The other compatible Allen-Bradley motors and actuators require the 2198-H2DCK converter kit for wiring motor feedback. A clamp spacer is included with the kit for motor

power/brake cable diameters that are too small for a tight fit within the drive clamp alone.

If the power/brake cable shield has a loose fit inside the shield clamp, insert the clamp spacer between the shield clamp and the drive to

reduce the clamp diameter. When the clamp screws are tight, 2.0 N•m (17.7 lb•in), the result must be a high-frequency bond between the

cable shield and the drive chassis.

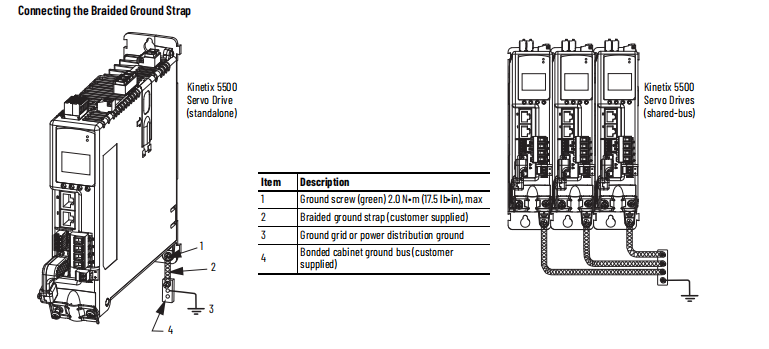

Ground Kinetix 5500 drives and 2198-CAPMOD-1300 capacitor modules to a bonded cabinet ground bus with a braided ground strap. Keep the braided ground strap as short

as possible for optimum bonding.

We have the same series of models in stock. If you don't find the model you need, please contact us and we will provide you with an official quotation！
