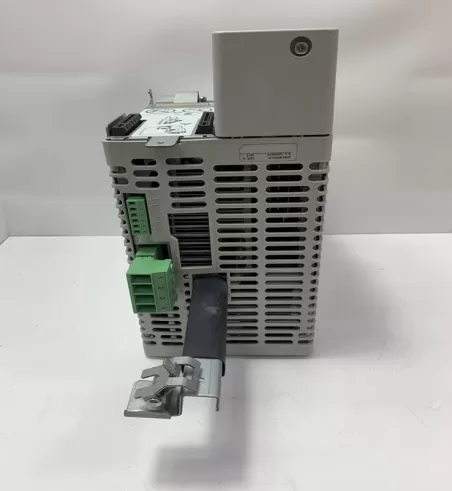

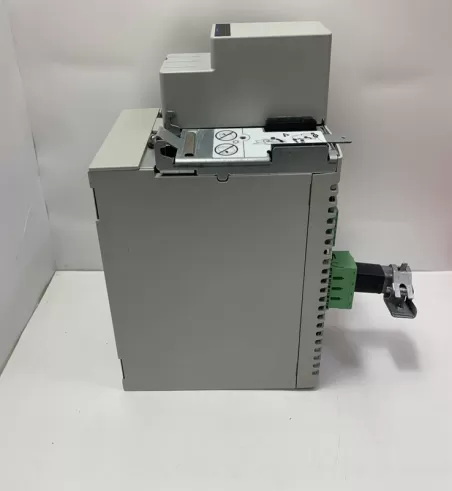

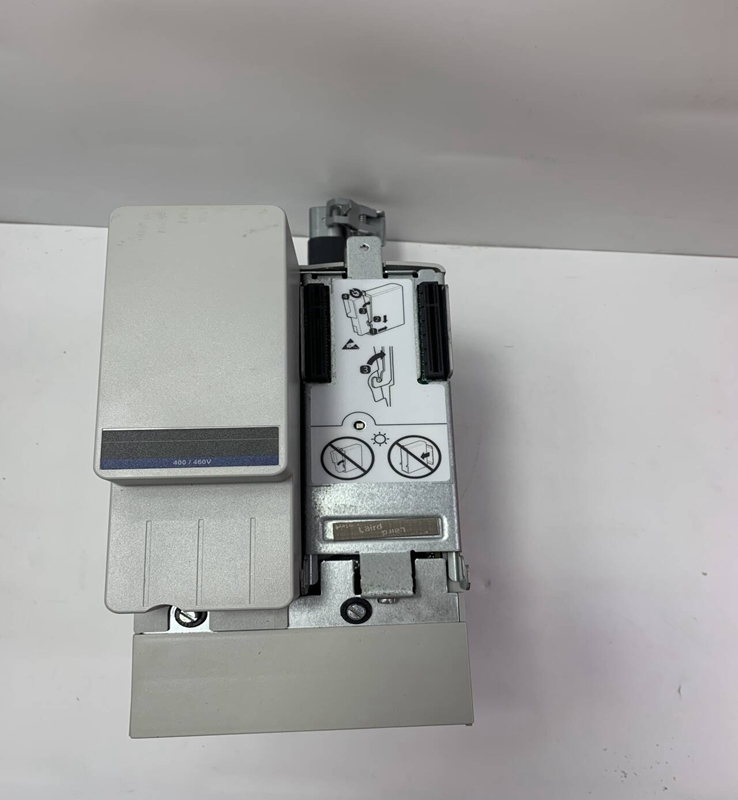

2094-BM03-M Allen-Bradley

Product Dimensions：

This procedure assumes you have prepared your panel, mounted your Bulletin 2094 power rail,

and understand how to bond your system. For installation instructions regarding equipment and

accessories not included here, refer to the instructions that came with those products.

Mount the IAM, AM/IPIM, shunt, and slot-filler modules in the order (left to right) as shown.

Mount the axis modules and IPIM modules according to power utilization (highest to lowest)

from left to right starting with the highest power utilization. If power utilization is unknown,

position axis modules (highest to lowest) from left to right based on amp rating.

Power utilization is the average power (kW) consumed by a servo axis. If Motion Analyzer

software was used to size the axis, the calculated axis power required can be used for the power

utilization value. If Motion Analyzer software was not used, you can use the continuous power

value (kW) for each module to determine mounting order.

The IAM power module must be positioned in the leftmost slot of the power rail. Position your

AM/IPIM modules, shunt module, and slot-filler modules to the right of the IAM module.

The shunt module must be installed to the right of the last AM/IPIM module. Only slot-filler

modules can be installed to the right of the shunt module.

Do not mount the shunt module on power rails with a follower IAM module. Common-bus

follower IAM modules disable the internal, rail mounted, and external shunt modules.

We have the same series of models in stock.  If you don't find the model you need, please contact us and we will provide you with an official quotation！

Allen-Bradley 440G-TZS21UPRH

Allen-Bradley 700-HLS1U2

Allen-Bradley 1440-SDM02-01RA

Allen-Bradley 1492-IFM40F-3

Allen-Bradley 1746-A10

Allen-Bradley 1746-NI4

Allen-Bradley 1746-NI8

Allen-Bradley 1747-L541

Allen-Bradley 1747-L552

Allen-Bradley 1756-A4

Allen-Bradley 1756-A10

Allen-Bradley 1756-A13

Allen-Bradley 1756-DHRI0C

Allen-Bradley 1756-DNB/A

Allen-Bradley 1756-EN2T

Allen-Bradley 1756-EN2TR

Allen-Bradley 1756-ENBT

Allen-Bradley 1756-IA16I

Allen-Bradley 1756-IB16

Allen-Bradley 1756-IF16

Allen-Bradley 1756-IR6I

Allen-Bradley 1756-L7SP

Allen-Bradley 1756-L71

Allen-Bradley 1756-L71S

Allen-Bradley 1756-L81ES

Colour：new                                  Warranty: 12 months

Lead Time：3-day working day     Price: Please contact us

Shipping Port: Xiamen, China        Payment:T/T

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service
