1794-IF2XOF2I Allen-Bradley I/O module

Inquire Now Next Product

Product Details：

1794-IF2XOF2I Allen-Bradley I/O module

Brand：Allen-Bradley Model number：1794-IF2XOF2I

Country of origin: United States Product weight：0. 13kg

HS code：8517623990

Product Dimensions：

The FLEX™ I/O isolated input/output analog module mounts on a 1794 terminal base.

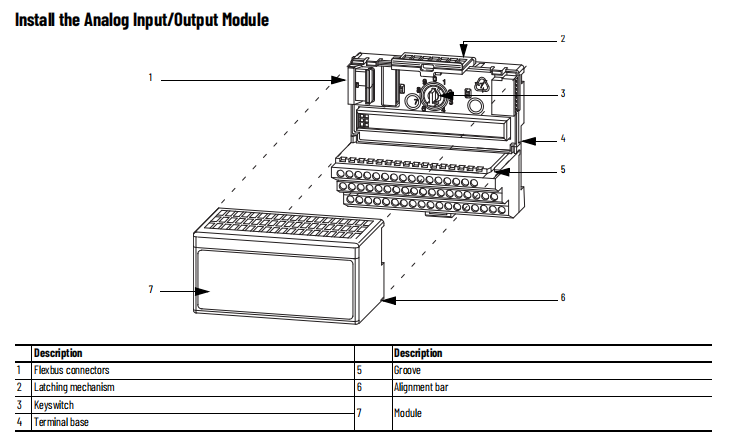

1. Rotate the keyswitch (3) on the terminal base (4) clockwise to position 5 as required for this type of module.

2. Make sure that the Flexbus connector (1) is pushed all the way to the left to connect with the neighboring terminal base/adapter. You cannot install the module unless

the connector is fully extended.

3. Make sure that the pins on the bottom of the module are straight so they will align properly with the connector in the terminal base.

4. Position the module (7) with its alignment bar (6) aligned with the groove (5) on the terminal base.

5. Press firmly and evenly to seat the module in the terminal base unit. The module is seated when the latching mechanism (2) is locked into the module.

The OK status indicator is two-colored: red and green. The indicator flashes green for one of three reasons:

1. The module configuration word is zero (for example, power up reset condition).

2. The 24V DC user power is off.

3. The module is in configuration mode.

The indicator displays red to indicate that the module did not pass the initial hardware test. Cycle power again. After power-up, if the status indicator is not flashing green or solid

green, cycle module power once more to verify a proper reset of the bus interface.
