1794-CE3 Allen-Bradley

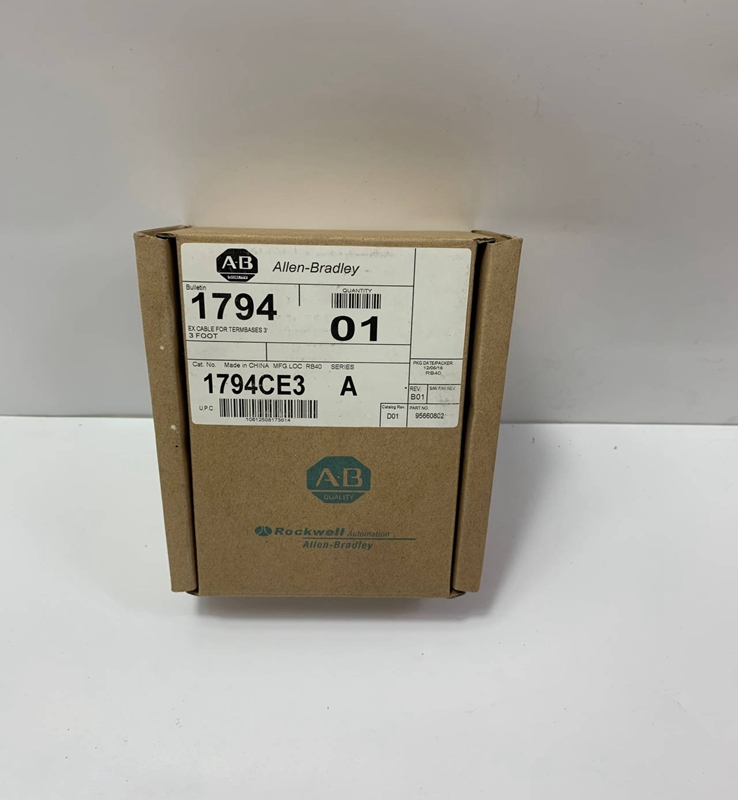

1794-CE3 Allen-Bradley Extender Cable

Brand：Allen-Bradley Model number：1794-CE3

Country of origin: United States Product weight：0.2kg

HS code：8517623990

Inquire Now Next Product

Product Details：

Product Dimensions：

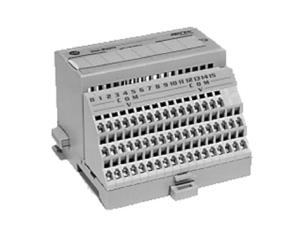

Each FLEX I/O™ module requires a terminal base unit that

snaps onto the DIN rail to the right of the I/O adapter. The

terminal bases provide terminal connection points for I/O

wiring and plug together to form the backplane. They are

available with cage, screw or spring - clamp terminations.

Each FLEX I/O module has optional accessories available

depending on the I/O module, field system set-up and

requirements.

(1) The letter K in the last position of the catalog number, before the series designation, indicates a conformal coated versions of standard modules and can be used with extended temperature modules

(modules ending in -XT)

(2) Contains eight 5 x 20 mm fuses (one for each even-numbered terminal – 0…14 on row B). Shipped with 1.6 A, 250V AC Slow Blow fuse suitable for the 1794-OA8 AC output module and 1794-OW8

module with a replacement fuse. Refer to individual installation instructions for fusing recommendations for other modules.

In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages resulting from the

use or application of this equipment.

The examples and diagrams in this publication are included solely for illustrative purposes. Because of the many variables

and requirements associated with any particular installation, Rockwell Automation, Inc. cannot assume responsibility or

liability for actual use based on the examples and diagrams.

No patent liability is assumed by Rockwell Automation, Inc. with respect to use of information, circuits, equipment, or

software described in this manual.

Reproduction of the contents of this manual, in whole or in part, without written permission of Rockwell Automation,

Inc., is prohibited.
