1794-ACNR15 Allen-Bradley communication adapter

1794-ACNR15 Allen-Bradley communication adapter

Brand：Allen-Bradley       Model number：1794-ACNR15

Country of origin: United States       Product weight：0.225kg

HS code：8517623990

Product Dimensions：

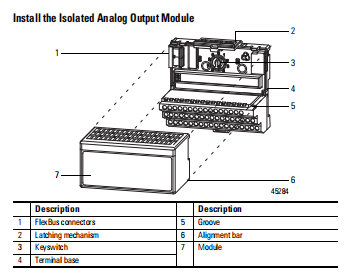

The module mounts on a 1794 terminal base.

1. Rotate the keyswitch (3) on the terminal base (4) clockwise to position 4 as

required for this type of module.

2. Make sure the FlexBus connector (1) is pushed all the way to the left to

connect with the neighboring terminal base/adapter. You cannot install

the module unless the connector is fully extended.

3. Make sure the pins on the bottom of the module are straight so they will

align properly with the connector in the terminal base.

4. Position the module (7) with its alignment bar (6) aligned with the groove

(5) on the terminal base.

Status Indicator

The OK status indicator is two-colored: red and green. The indicator flashes green

for one of three reasons:

1. The module configuration word is zero (for example, power up reset

condition).

2. The 24V DC user power is off.

3. The module is in configuration mode.

The indicator displays red to indicate that the module did not pass the initial

hardware test. Cycle power again.

After power up, if the status indicator is not flashing green or solid green, cycle

module power once more to verify a proper reset of the bus interface.

The following applies when the product bears the Ex Marking.

This equipment is intended for use in potentially explosive atmospheres as defined by

European Union Directive 94/9/EC and has been found to comply with the Essential Health

and Safety Requirements relating to the design and construction of Category 3 equipment

intended for use in Zone 2 potentially explosive atmospheres, given in Annex II to this

Directive.

Compliance with the Essential Health and Safety Requirements has been assured by

compliance with EN 60079-15 and EN 60079-0.

We have the same series of models in stock.  If you don't find the model you need, please contact us and we will provide you with an official quotation！
