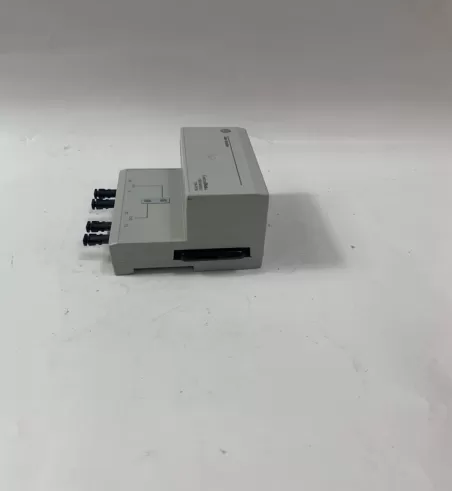

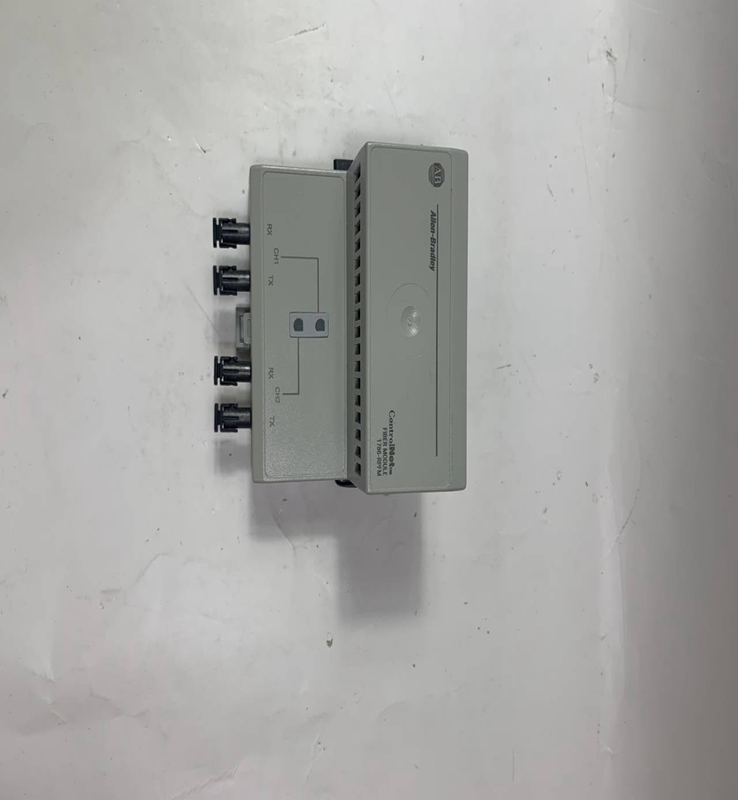

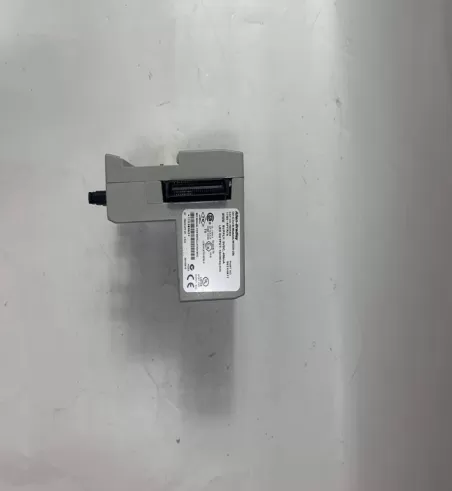

1786-RPFM Allen-Bradley Repeater module

Product Details:

1786-RPFM Allen-Bradley Repeater module

BrandAllen-Bradley                        Model number1786-RPFM

Country of origin: United States        Product weight0.55kg

HS code:8517623990

Product Dimensions:

distributor for attenuation specifications before you purchase your fiber media components. The zipcord uses a duplex

cable that contains two separate fibers, one for transmit and one for receive. If you are wiring only one channel, you can

use either channel 1 or channel 2.

1. Remove protective caps from ports that require a connection and save the caps for future storage protection.

The following applies to products marked IECEx:

• Such modules are intended for use in areas in which explosive atmospheres caused by gases, vapors, mists, or air are

unlikely to occur, or are likely to occur only infrequently and for short periods. Such locations correspond to Zone 2

classification to IECEx 60079-0.

• The type of protection for the 1786-RPA and 1786-RPCD, is "Ex nA IIC T5 Gc" according to IEC 60079-15.

The type of protection for the 1786-RPFM and 1786-RPFS, is "Ex nA op is IIC T5 Gc" according to IEC 60079-15.

• Such modules comply to Standards IIEC 60079-0:2011 Ed. 6, IEC 60079-15:2010 Ed. 4, IEC 60079-28:2007 Ed. 1.0,

reference IECEx certificate number IECEx SIR 14.0048X.

If you connect only one coax channel on the 1786-RPCD module, you can use either channel 1 or channel 2. Both channels

1 and 2 operate identically and can be used interchangeably. Be sure to terminate the unused channel with a 75 

terminating resistor (catalog number 1786-XT).

1. Connect the ControlNet tap to port #1.

2. Align the knob of the BNC cable connector with the locks of the BNC module connector, and insert the connector into

channel
