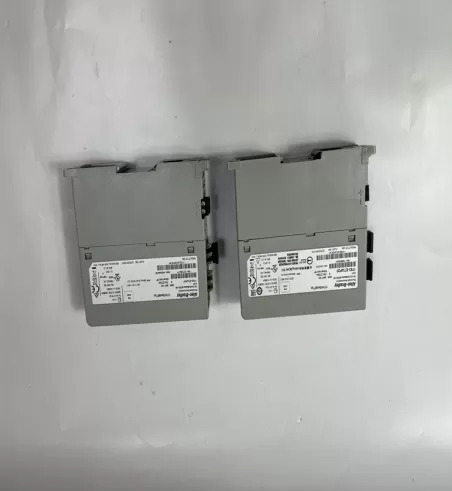

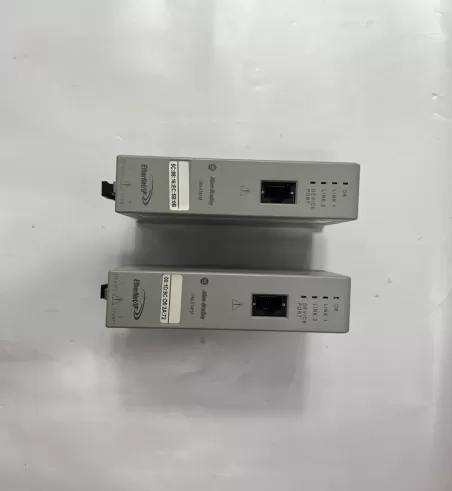

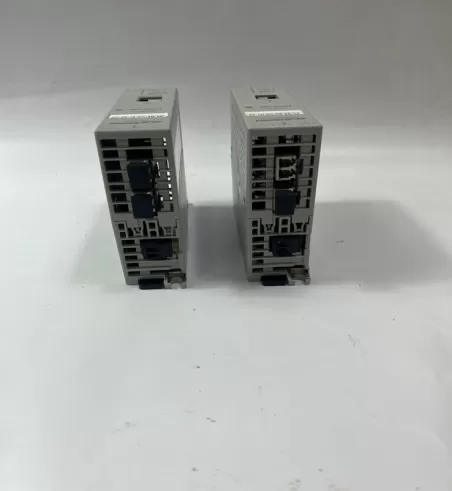

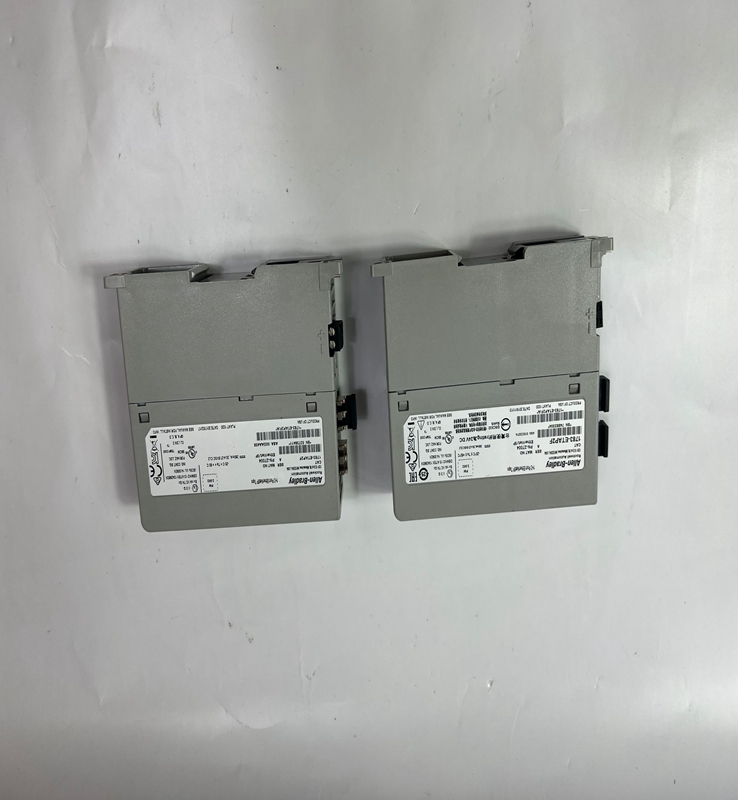

1783-ETAP2F Allen-Bradley Ethernet I/P Switch

Brand：Allen-Bradley Model number：1783-ETAP2F

Country of origin: United States Product weight：0.185kg

HS code：8471800000

Inquire Now Next Product

Product Details：

1783-ETAP2F Allen-Bradley Ethernet I/P Switch

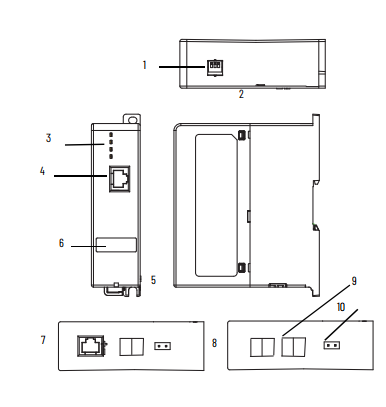

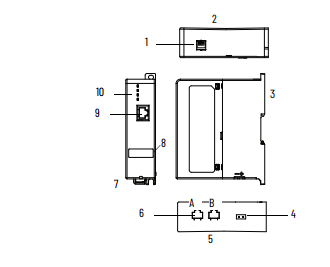

Product Dimensions

Item Description Item Description

1 DIP switches 6 MAC ID label

2 Top view 7 Bottom view, 1783-ETAP1F

3 Status indicators 8 Bottom view, 1783-ETAP2F

4 Device port on front panel 9 Ports for connection to linear or ring

network(1)

(1) The 1783-ETAP2F tap has two fiber-optic ports. The 1783-ETAP1F tap has one fiber-optic port.

5 Side view 10 DC connector

By default, the 10Base-T and 100BASE-TX ports on the tap autonegotiate link speeds (10 Mbps or 100 Mbps) and duplex setting (full or half). The 100Base-FX fiber interfaces provide 100 Mbps, full-duplex operation.

Configure the Ethernet port on the device that you connect to a tap so that it matches the tap’s speed and duplex settings. Failure to make the speed and duplex settings of directly connected devices match may result in higher error rates or loss of network connectivity

DIN Rail Mounting To install the tap on a DIN rail, proceed as follows. 1. Mount your DIN rail. 2. Use a screwdriver to open the latch at the bottom of the tap. 3. Hook the latch over the DIN rail while holding the latch open with your screwdriver. 4. Remove the screwdriver and push the latch to close. The top figure shows using a screwdriver to open the latch so that you can remove the tap from the DIN rail. The bottom figure shows the latch at the bottom of the tap in the open position. Panel Mounting To panel mount a tap, proceed as follows. 1. Use the tap as a template and mark pilot holes on your panel. 2. Drill the pilot holes for M4 or #8 screws.
