Home > Products > Allen-Bradley > 1769-OW16 Allen-Bradley 16 point Relay Output Module 16

1769-OW16 Allen-Bradley 16 point Relay Output Module 16

BrandAllen-Bradley      Model number:1769-OW16

Country of origin: United States   Product weight0.300kg

HS code:8517623990

Product Details:

1769-OW16 Allen-Bradley 16 point Relay Output Module 16



Product Dimensions:

The module can be attached to the controller or an adjacent I/O module before or after mounting. For mounting instructions, see "Panel Mounting" on page 6, or "DIN Rail Mounting" on page 7. To work with a system that is already mounted, see "Replacing a Single Module within a System" on page 7. The following procedure shows you how to assemble the Compact I/O system

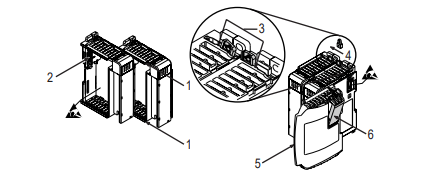

  1. Disconnect power. 2. Check that the bus lever of the module to be installed is in the unlocked (fully right) position. 3. Use the upper and lower tongue-and-groove slots (1) to secure the modules together (or to a controller). 4. Move the module back along the tongue-and-groove slots until the bus connectors (2) line up with each other. 5. Push the bus lever back slightly to clear the bus locking tab (3). Use your fingers or a small screwdriver.

The following procedure allows you to use the assembled modules as a template for drilling holes in the panel. If you have sophisticated panel mounting equipment, you can use the dimensional template provided on page 6. Due to module mounting hole tolerance, it is important to follow these procedures: 1. On a clean work surface, assemble no more than three modules. 2. Using the assembled modules as a template, carefully mark the center of all module-mounting holes on the panel. 3. Return the assembled modules to the clean work surface, including any previously mounted modules. 4. Drill and tap the mounting holes for the recommended M4 or #8 screw. 5. Place the modules back on the panel, and check for proper hole alignment. 6. Attach the modules to the panel using the mounting screws.



We have the same series of models in stock.  If you don't find the model you need, please contact us and we will provide you with an official quotation!
