Brand:Allen-Bradley Model number:1769-OB32T
Country of origin: United States Product weight:0.220kg
HS code:8517623990
Product Details:

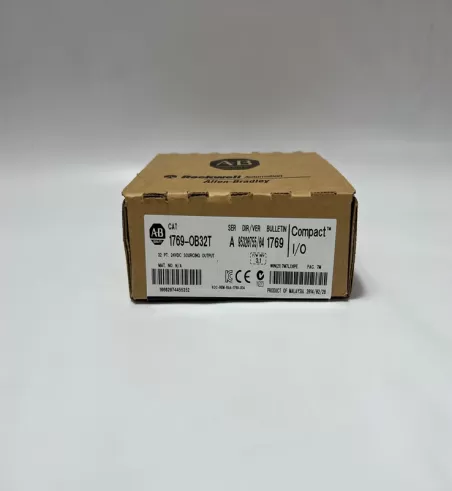

1769-OB32T Allen-Bradley output module
Product Dimensions:
Compact I/O is suitable for use in an industrial environment when installed in accordance with these instructions. Specifically, this equipment is intended for use in clean, dry environments (Pollution degree 2(1)) and to circuits not exceeding Over Voltage Category II(2) (IEC 60664-1)(3).
(1) Pollution Degree 2 is an environment where, normally, only non-conductive pollution occurs except that occasionally a temporary conductivity caused by condensation is expected.
(2) Over Voltage Category II is the load level section of the electrical distribution system. At this level, transient voltages are controlled and do not exceed the impulse voltage capability of the product’s insulation.
(3) Pollution Degree 2 and Over Voltage Category II are International Electrotechnical Commission (IEC) designations.
Attach the module to the controller or an adjacent I/O module before or after mounting. For mounting instructions, see Mount Module to Panel Using the Dimensional Template on page 9, or Mount Module to DIN Rail on page 10. Refer to Replace a Single Module Within a System on page 7 to work with a system that is already mounted.
Disconnect power.
Check that the bus lever of the module to be installed is in the unlocked (fully-right) position.
Use the upper and lower tongue-and-groove slots (1) to secure the modules together (or to a controller).
Move the module back along the tongue-and-groove slots until the bus connectors (2) line up with each other.
Use your fingers or a small screwdriver to push the bus lever back slightly to clear the positioning tab (3). 6. To allow communication between the controller and module, move the bus lever fully to the left (4) until it clicks, making sure it is locked firmly in place.
