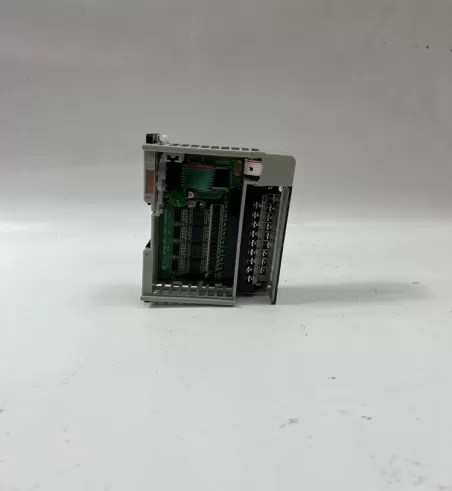

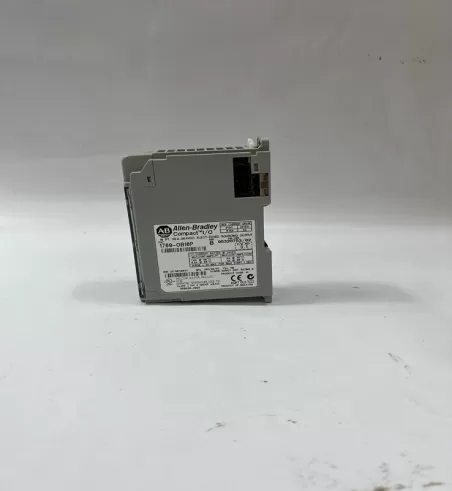

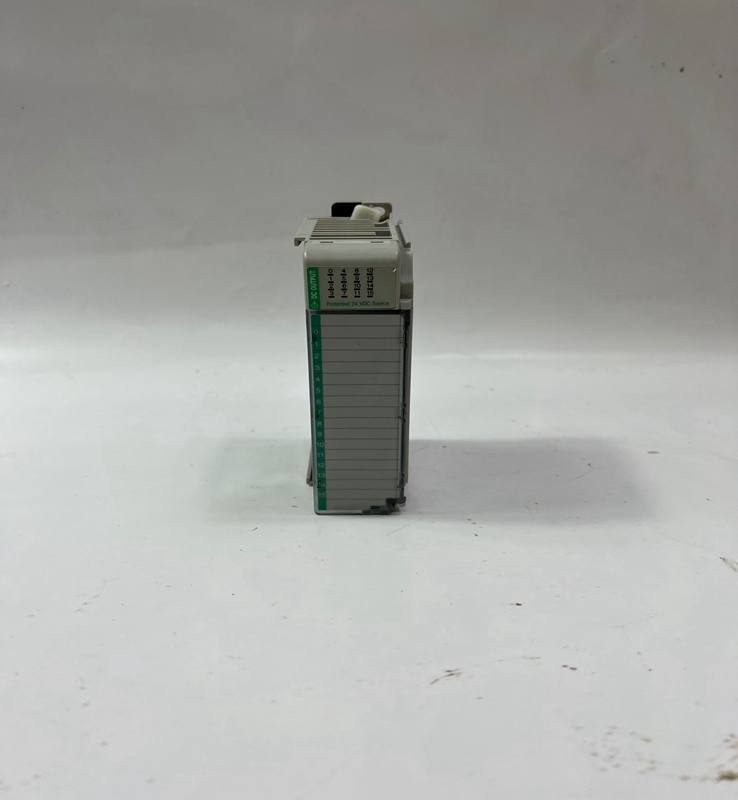

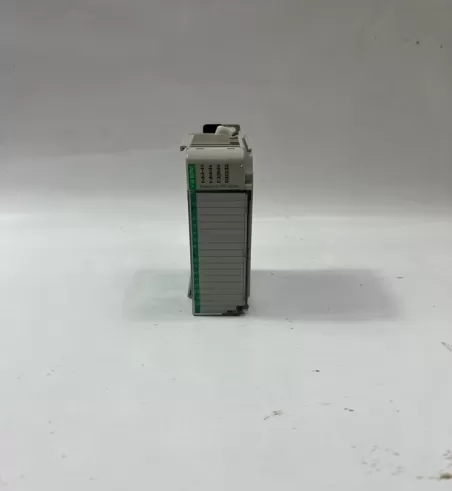

1769-OB16P Allen-Bradley Output Module

Brand：Allen-Bradley Model number：1769-OB16P

Country of origin: United States Product weight：0.175kg

Product Details：

1769-OB16P Allen-Bradley Output Module

Product Dimensions：

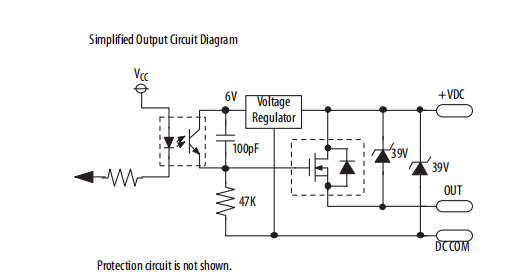

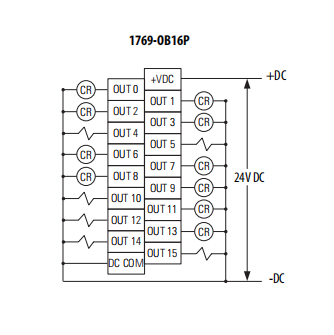

Compact solid-state 24V DC source, protected output module

Table 67 - Technical Specifications - 1769-OB16P Attribute 1769-OB16P Outputs 16 (16 points/group) Voltage category 24V DC source Operating voltage range 20.4…26.4V DC Output delay, on 1.0 ms Output delay, off 2.0 ms Current draw @ 5.1V 160 mA Heat dissipation, max 2.69 W Off-state leakage current, max(1) 1.0 mA @ 26.4V DC On-state current, min 1.0 mA On-state voltage drop, max 0.5V DC Current per point, max 0.5 A @ 60 °C (140 °F) 1.0 A @ 30 °C (86 °F) Current per module, max 4.0 A @ 60 °C (140 °F) 8.0 A @ 30 °C (86 °F) Surge current(2) 2.0 A for 10 ms, repeatable every 1 s Isolation voltage Verified by one of the following dielectric tests: 1200V AC for 1 s or 1697V DC for 1 s, output point to bus 75V DC working voltage (IEC Class 2 reinforced insulation) Weight, approx 255 g (0.56 lb) Dimensions (HxWxD), approx 118 x 35 x 87 mm (4.65 x 1.38 x 3.43 in.) Height with mounting tabs 138 mm (5.43 in.) Slot width 1 Module location DIN rail or panel mount Power supply 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4 Power supply distance rating 8 modules Terminal screw torque 0.68 Nm (6 lbin) Retaining screw torque 0.46 Nm (4.1 lbin) Wire size (22…14 AWG) solid (22…16 AWG) stranded

We have the same series of models in stock. If you don't find the model you need, please contact us and we will provide you with an official quotation！
