1769-OB16 Allen-Bradley SLC 500 SLC 5/05 64K Memory Controller

Brand：Allen-Bradley Model number：1769-OB16

Country of origin: United States Product weight：0.180kg

HS code：8517623990

Product Details：

1769-OB16 Allen-Bradley SLC 500 SLC 5/05 64K Memory Controller

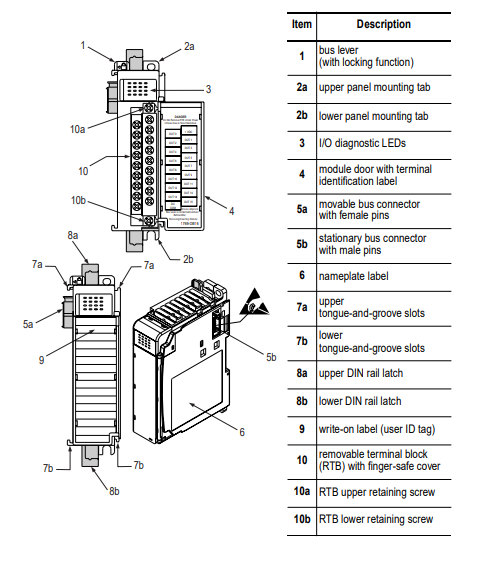

Product Dimensions：

Compact I/O is suitable for use in an industrial environment when installed in accordance with these instructions. Specifically, this equipment is intended for use in clean, dry environments (Pollution degree 21 ) and to circuits not exceeding Over Voltage Category II2 (IEC 60664-1).3

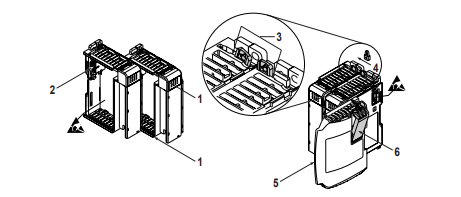

The module can be attached to the controller or an adjacent I/O module before or after mounting. For mounting instructions, see “Panel Mounting” on page 5, or “DIN Rail Mounting” on page 6. To work with a system that is already mounted, see “Replacing a Single Module within a System” on page 7. The following procedure shows you how to assemble the Compact I/O system.

Disconnect power.
Check that the bus lever of the module to be installed is in the unlocked (fully right) position.
Use the upper and lower tongue-and-groove slots (1) to secure the modules together (or to a controller).
Move the module back along the tongue-and-groove slots until the bus connectors (2) line up with each other.
Push the bus lever back slightly to clear the positioning tab (3). Use your fingers or a small screw driver.
To allow communication between the controller and module, move the bus lever fully to the left (4) until it clicks. Ensure it is locked firmly in place.

We have the same series of models in stock. If you don't find the model you need, please contact us and we will provide you with an official quotation！
