1769-IT6 Allen-Bradley CompactLogix 6 Channel Thermocouple-Mv Input I-O Module CompactLogix 6

BrandAllen-Bradley      Model number:1769-IT6

Country of origin: United States   Product weight0.175kg

HS code:8517623990

Product Details:

1769-IT6 Allen-Bradley CompactLogix 6 Channel Thermocouple-Mv Input I-O Module CompactLogix 6



Product Dimensions:

The thermocouple/mV module receives and stores digitally-converted thermocouple and/or millivolt analog data from any combination of as many as six thermocouple or millivolt analog sensors. Each input channel is individually configurable via software for a specific input device and provides open-circuit, over-range, and under-range detection and indication. The module receives all of its +5V DC and +24V DC power from the 1769 Compact bus. The module contains a removable terminal block with two cold-junction compensation (CJC) sensors.

Compact I/O modules are suitable for use in an industrial environment when installed in accordance with these instructions. Specifically, this equipment is intended for use in clean, dry environments (Pollution Degree 2(1)) and to circuits not exceeding Over Voltage Category II(2) (IEC 60664-1).(3)

(1) Pollution Degree 2 is an environment where, normally, only nonconductive pollution occurs except that occasionally a temporary conductivity caused by condensation shall be expected.

 (2) Over Voltage Category II is the load level section of the electrical distribution system. At this level, transient voltages are controlled and do not exceed the impulse voltage capability of the product’s insulation.

 (3) Pollution Degree 2 and Over Voltage Category II are International Electrotechnical Commission (IEC) designations.

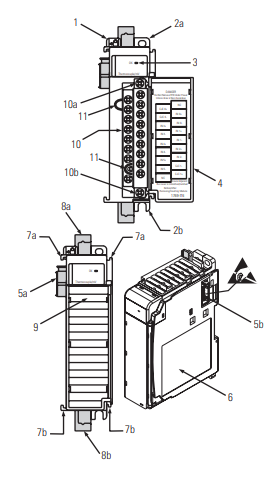

1. Disconnect power. 2. Check that the bus lever of the module to be installed is in the unlocked (fully right) position. 3. Use the upper and lower tongue-and-groove slots (1) to secure the modules together (or to a controller). 4. Move the module back along the tongue-and-groove slots until the bus connectors (2) line up with each other. 5. Use your fingers or a small screwdriver to push the bus lever back slightly to clear the positioning tab (3).
