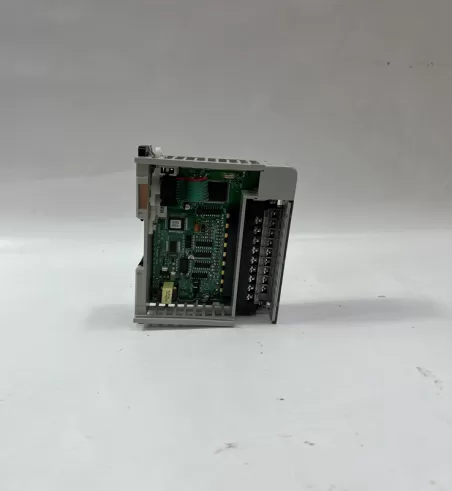

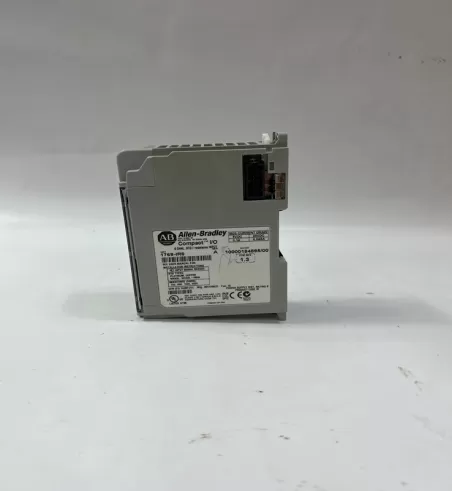

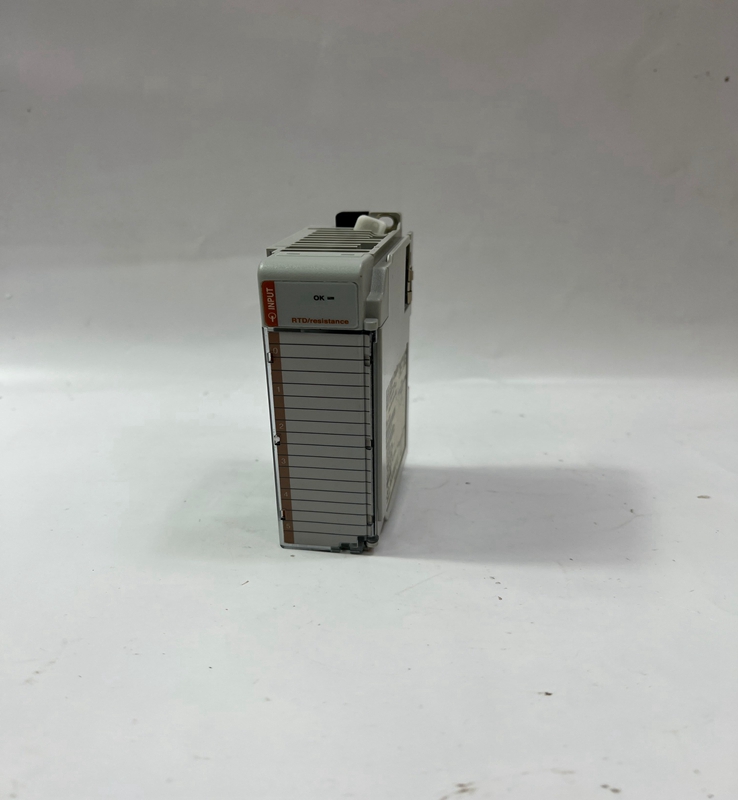

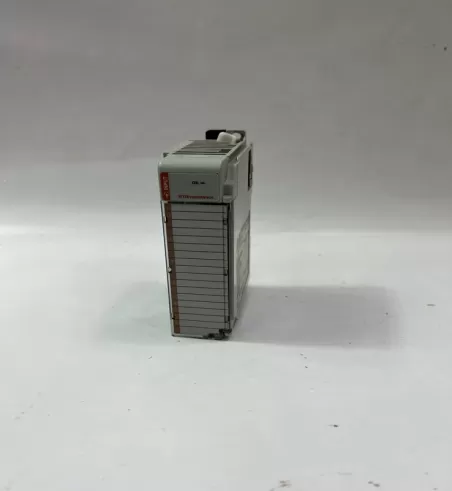

1769-IR6 Allen-Bradley RTD-Resistance Input I-O Module

Brand：Allen-Bradley Model number：1769-IR6

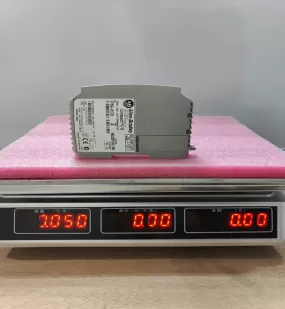

Country of origin: United States Product weight：0.175kg

Product Details：

1769-IR6 Allen-Bradley RTD-Resistance Input I-O Module

Product Dimensions：

The 1769-IR6 module receives and stores digitally converted analog data from RTDs or other resistance inputs, such as potentiometers. The module supports connections from any combination of up to 6 RTDs or other resistance inputs. See the input specifications on page 20 for supported RTD and resistance types, their associated temperature ranges, and the analog input signal ranges that each channel supports. Each of the 6 input channels is individually configurable for a specific input device and provides open- or short-circuit and over- or under-range indication.

Compact I/O is suitable for use in an industrial environment when installed in accordance with these instructions. Specifically, this equipment is intended for use in clean, dry environments (Pollution degree 2(1)) and to circuits not exceeding Over Voltage Category II(2) (IEC 60664-1).

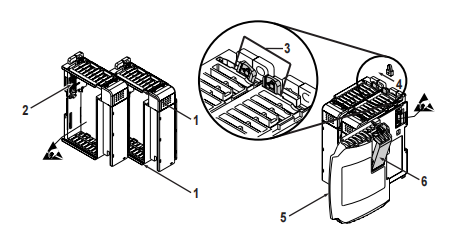

The module can be attached to the controller or an adjacent I/O module before or after mounting. For mounting instructions, see “Panel Mounting” on page 6, or “DIN Rail Mounting” on page 7. To work with a system that is already mounted, see “Replacing a Single Module within a System” on page 7. The following procedure shows you how to assemble the Compact I/O system.

We have the same series of models in stock. If you don't find the model you need, please contact us and we will provide you with an official quotation！
