1769-IA16 Allen-Bradley Compact I/O module

Product Details:

1769-IA16 Allen-Bradley Compact I/O module

BrandAllen-Bradley            Model number1769-IA16

Country of origin: United States       Product weight0.190kg

HS code:8517623990

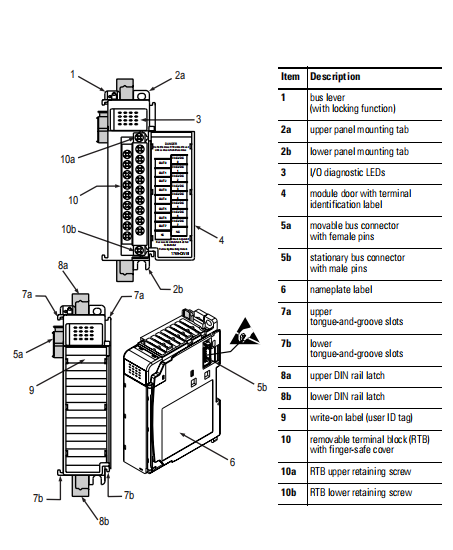

Product Dimensions:

The module can be attached to the controller or an adjacent I/O module before or

after mounting. For mounting instructions, see "Panel Mounting" on page 6, or "DIN

Rail Mounting" on page 7. To work with a system that is already mounted, see

"Replacing a Single Module within a System" on page 7.

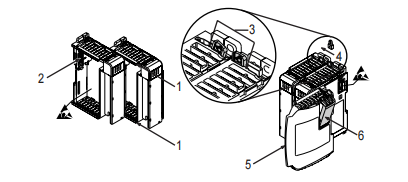

The following procedure shows you how to assemble the Compact I/O system

1. Disconnect power.

2. Check that the bus lever of the module to be installed is in the unlocked

(fully right) position.

3. Use the upper and lower tongue-and-groove slots (1) to secure the modules

together (or to a controller).

4. Move the module back along the tongue-and-groove slots until the bus

connectors (2) line up with each other.

5. Push the bus lever back slightly to clear the bus locking tab (3). Use your

fingers or a small screwdriver.

This product is intended to be mounted to a well-grounded mounting surface such

as a metal panel. Additional grounding connections from the module’s mounting

tabs or DIN rail (if used), are not required unless the mounting surface cannot be

grounded. Refer to Industrial Automation Wiring and Grounding Guidelines,

Allen-Bradley publication 1770-4.1, for additional information.
