1756-OF4 Allen-Bradley analog output module

Product Details：

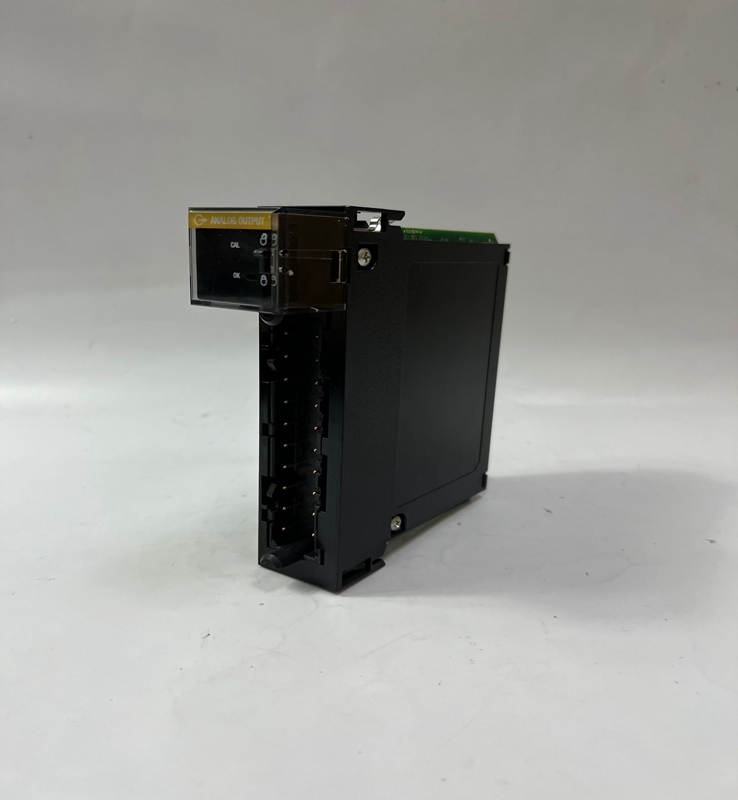

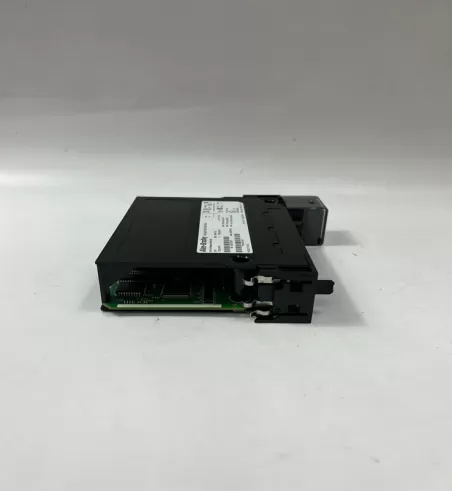

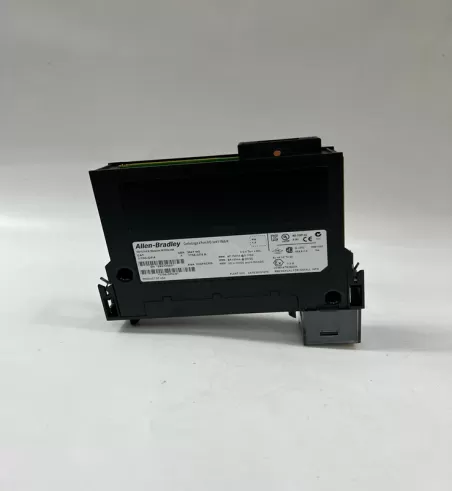

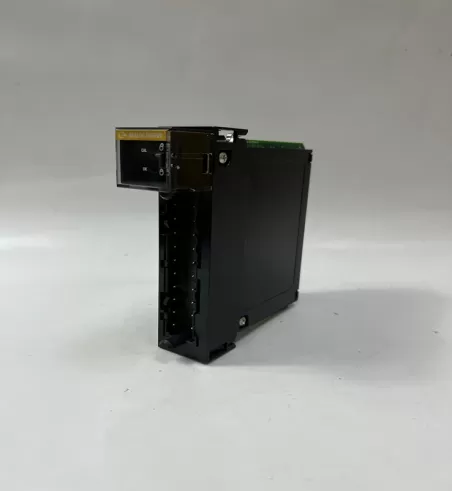

1756-OF4 Allen-Bradley analog output module

Brand：Allen-Bradley Model number：1756-OF4

Country of origin: United States Product weight：0.485kg

HS code：8517623990

Product Dimensions：

ControlLogix® analog I/O modules are interface modules that convert analog signals to digital values for inputs and convert digital values to analog signals for outputs.

Controllers can then use these signals for control purposes. By using the producer/consumer network model, analog I/O modules can produce information when needed

while providing additional system functions.

Key the RTB to help prevent inadvertently connecting the incorrect RTB to

your module.

1. Push the U-shaped band onto the module until it snaps into place.

2. Insert wedge-shaped tabs into positions on the RTB that correspond to

unkeyed module positions on the module until they stop

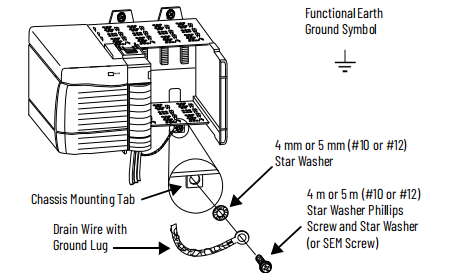

Connect the drain wire to a chassis mounting tab.

Use any chassis mounting tab that is designated as a functional signal

ground. The functional earth ground symbol appears near the tab.

Removable housing covers the wired RTB to protect wiring connections when the

RTB is seated on the module.

1. Align the grooves at the bottom of each side of the housing with the side

edges of the RTB.

2. Slide the RTB into the housing until it snaps into place.

1. Cut the foil shield and drain wire back to the cable casing and apply

shrink wrap.

2. Connect the insulated wires to the RTB.

Wire a Cage Clamp-style RTB - Catalog Number 1756-TBCH

1. Insert the wire into the terminal.

2. Turn the screw clockwise to close the terminal on the wire.

We have the same series of models in stock. If you don't find the model you need, please contact us and we will provide you with an official quotation！
