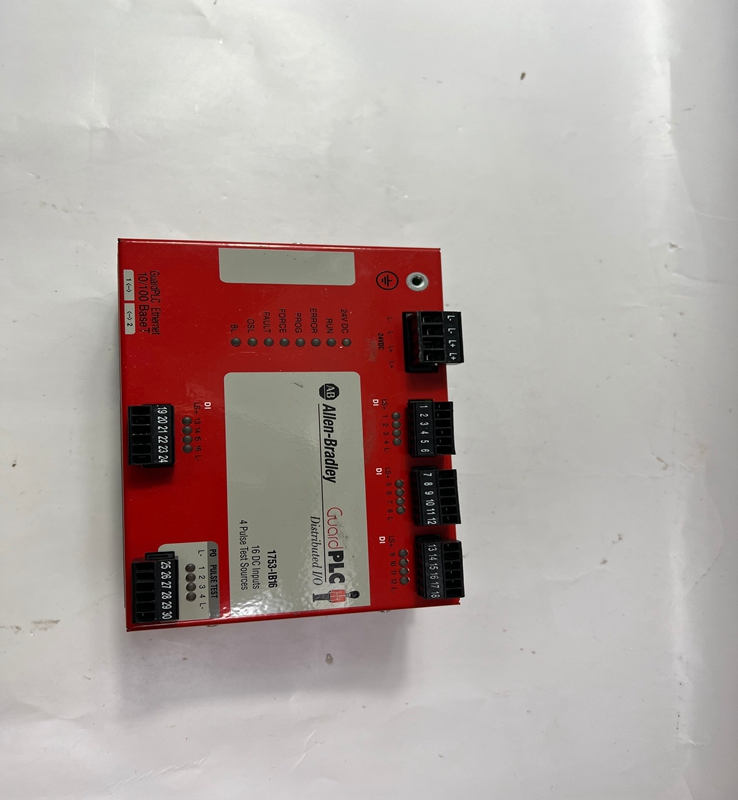

1753-IB16 Allen-Bradley Input Module

Brand：Allen-Bradley Model number：1753-IB16

Country of origin: United States Product weight：0.68kg

HS code：8517623990

Product Details：

1753-IB16 Allen-Bradley Input Module

Product Dimensions：

In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages resulting from the use or application of this equipment. The examples and diagrams in this manual are included solely for illustrative purposes. Because of the many variables and requirements associated with any particular installation, Rockwell Automation, Inc. cannot assume responsibility or liability for actual use based on the examples and diagrams. No patent liability is assumed by Rockwell Automation, Inc. with respect to use of information, circuits, equipment, or software described in this manual. Reproduction of the contents of this manual, in whole or in part, without written permission of Rockwell Automation, Inc., is prohibited. Throughout this manual, when necessary, we use notes to make you aware of safety considerations

Follow these steps to install the module. 1. Mount the module to a DIN rail. 2. Ground the module. 3. Wire the module. 4. Make connections for safety-related communication. This publication describes these steps in detail.

IMPORTANT For effective cooling, mount the module following these guidelines. • Mount the module horizontally. • Provide a gap of at least 100 mm (3.94 in.) above and below the module. • Select a location where air flows freely or use an additional fan. • Do not mount the module over a heating device

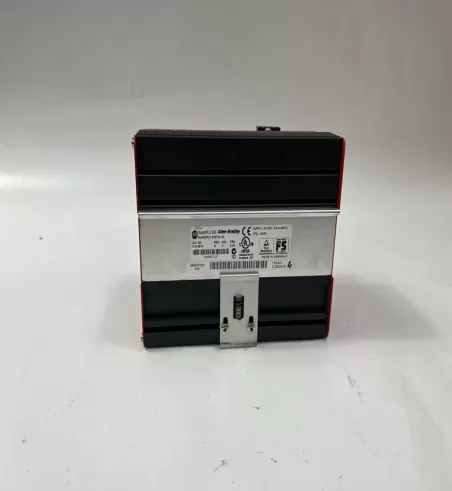

The module cannot be panel-mounted. Mount the module to a DIN rail by following these steps. 1. Hook the top slot over the DIN rail. 2. Insert a flathead screwdriver into the gap between the housing and the latch and pull the latch downward. 3. Hold the latch down as you push the housing back onto the DIN rail. 4. Release the latch to lock the module onto the rail.

We have the same series of models in stock. If you don't find the model you need, please contact us and we will provide you with an official quotation！
