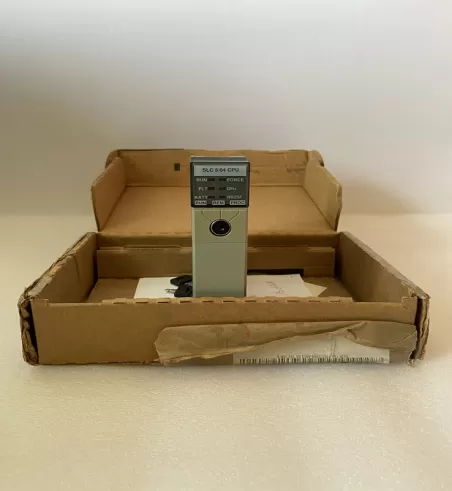

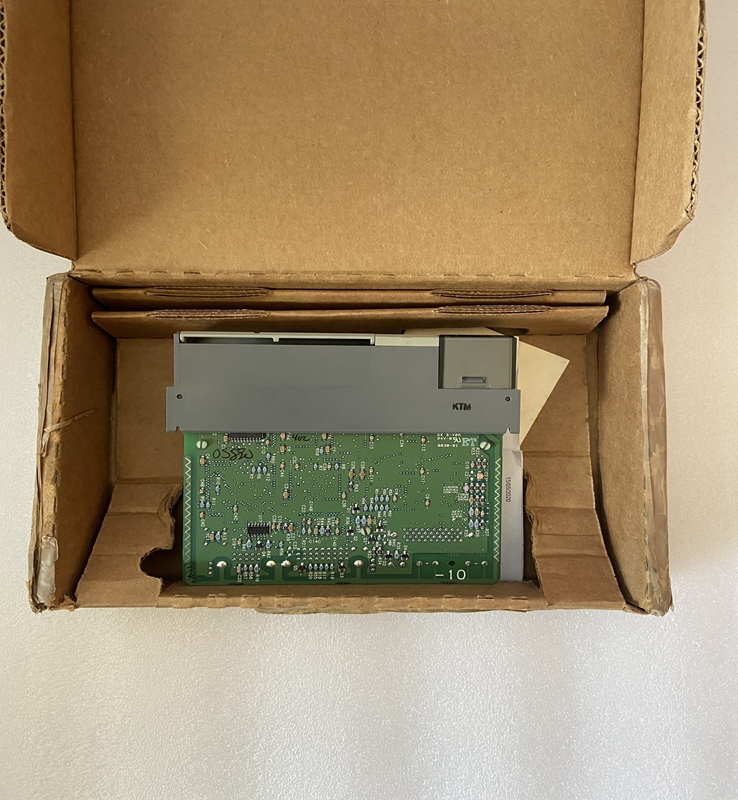

1747-L541 Allen-Bradley Rockwell output input module

Brand：Allen-Bradley Model number：1747-L541

Country of origin: United States Product weight：0.5kg

Product Details：

1747-L541 Allen-Bradley Rockwell output input module

Technical Specifications:Manufacturer Brand Part Number/Catalog No. Series Module Type Inputs Outputs Analog I/O User Memory Program Scan Time I/O Scan Time I/O Chassis Chassis Module Slots Communication Backup Memory Program Scan Time per Keyword Rockwell Automation Allen-Bradley 1747-L541 SLC 500 SLC 5/04 Processor 4096 4096 480 16,000 Words 0.9 milliseconds 0.225 milliseconds 3 30 DH+, RS-232 Flash 0.9 milliseconds DO Supply Inc. DOES NOT WARRANT THE COMPLETENESS, TIMELINESS OR ACCURACY O

This chapter can help you to get started using the SLC 500 Modular Processors. We base the procedures here on the assumption that you have an understanding of SLC 500 products. You should understand electronic process control and be able to interpret the ladder logic instructions required to generate the electronic signals that control your application. Because it is a start-up guide for experienced users, this chapter does not contain detailed explanations about the procedures listed. It does, however, reference other chapters in this book where you can get more information. If you have any questions or are unfamiliar with the terms used or concepts presented in the procedural steps, always read the referenced chapters and other recommended documentation before trying to apply the information. This chapter: • tells you what tools and equipment you need.

• lists how to install your chassis.

• lists how to install and wire your power supply.

• lists how to install and apply power to your processor.

• lists how to establish communication with the processor.

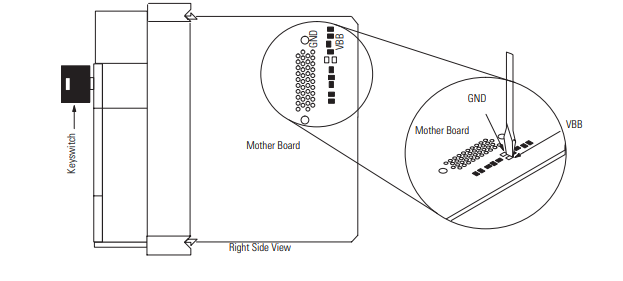

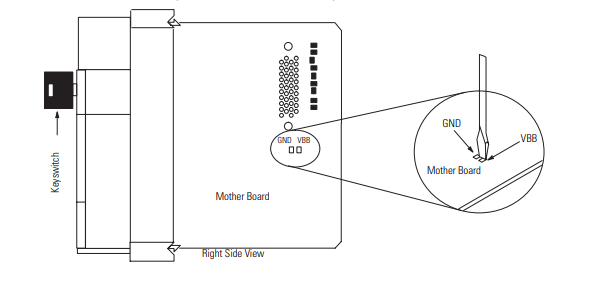

• describes how to return the SLC 5/03, SLC 5/04, and SLC 5/05 processors to initial factory conditions if required.

We have the same series of models in stock. If you don't find the model you need, please contact us and we will provide you with an official quotation！
