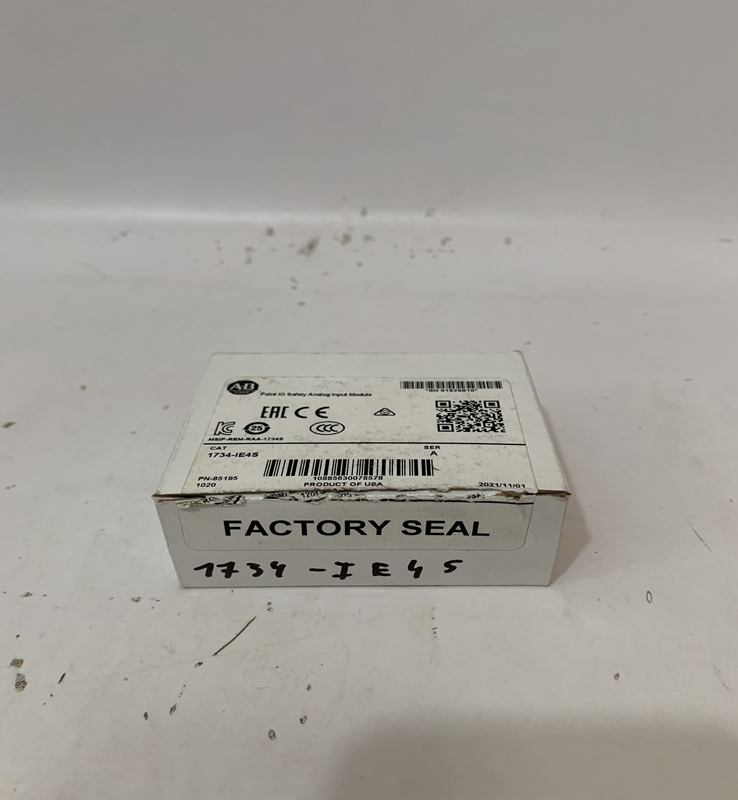

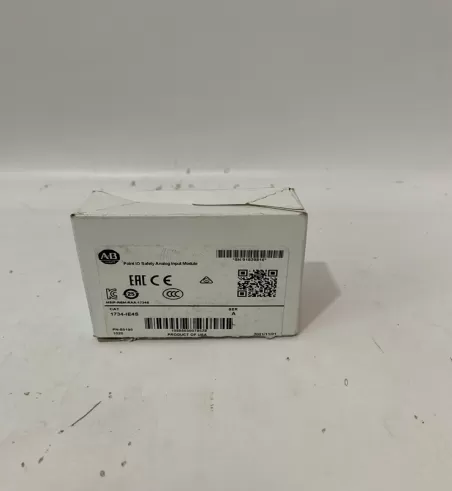

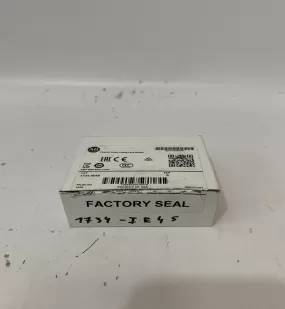

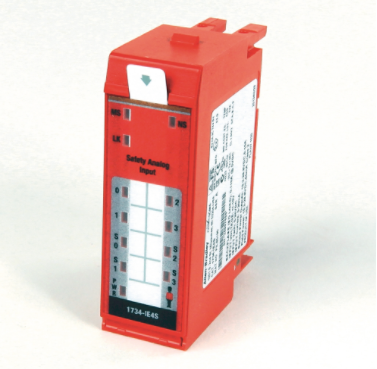

1734-IE4S Allen-Bradley POINT I/O Safety Analog Input Module POINT I/O

Brand：Allen-Bradley Model number：1734-IE4S

Country of origin: United States Product weight：0.100kg

HS code：8471800000

Inquire Now Next Product

Product Details：

1734-IE4S Allen-Bradley POINT I/O Safety Analog Input Module POINT I/O

Product Dimensions

POINT Guard I/O Safety Module - 4 Safety Analog Input ModuleThese release notes describe a corrected anomaly and a known anomaly for the 1734-IE4S POINT Guard I/O™ module, firmware revision 1.02.001.

CORRECTED: If sensor power is supplied by the module, Fault Code 127 can appear after powerup or reconfiguration. A start-up diagnostic has a tolerance that is too tight for all modules. The fault does not occur when you use external sensor power. (Lgx00136228)

• On the DeviceNet network, a change-of-state (COS) message is not produced when the data changes, such as channel or power status. Use a cyclic connection or a heartbeat rate for the COS connection that is less than or equal to the default of 250 ms. (Lgx00128516)

• Fault Code 101 can appear when a 1734-IE4S input channel is set to 0…20 mA or 4…20 mA and configured to use module-supplied sensor power. To work around this anomaly, see Rock

Rockwell Automation tests all of its products to ensure that they are fully operational when shipped from the manufacturing facility. However, if your product is not functioning and needs to be returned, follow these procedures.

Module Type Safety Analog Input Module

No. of Channels Four (4) Voltage, current and Tachometer input channels

Input Current Signal 0-20 mA; 4-20 mA

Input Current Code Range -8192É+32767

Input Voltage Signal Bipolar modes: -32768/+32767 Unipolar modes: 0/+32767

Input Voltage Code Range -8192É+32767

Tachometer Range 0É1000

Tachometer frequency range 1É1000 Hz

ADC Resolution 12 bits

Accuracy Voltage mode:@ 25¡ C [77¡ F]: ±0.5% full scale Drift: ±0.02% full scale/¡C Current mode: @ 25¡ C [77¡ F]: ±0.6% full scale Tachometer Mode: @ 25¡ C [77¡ F]: ±2% gain error drift: ±0.1%/¡C additional gain error, due to temperature Examp

Calibration Factory-calibrated; no user-calibration

I/O scan rate ² 6 ms

Indicators 4 analog input (yellow/red) 4 sensor power (green/red) 1 power (green/yellow
