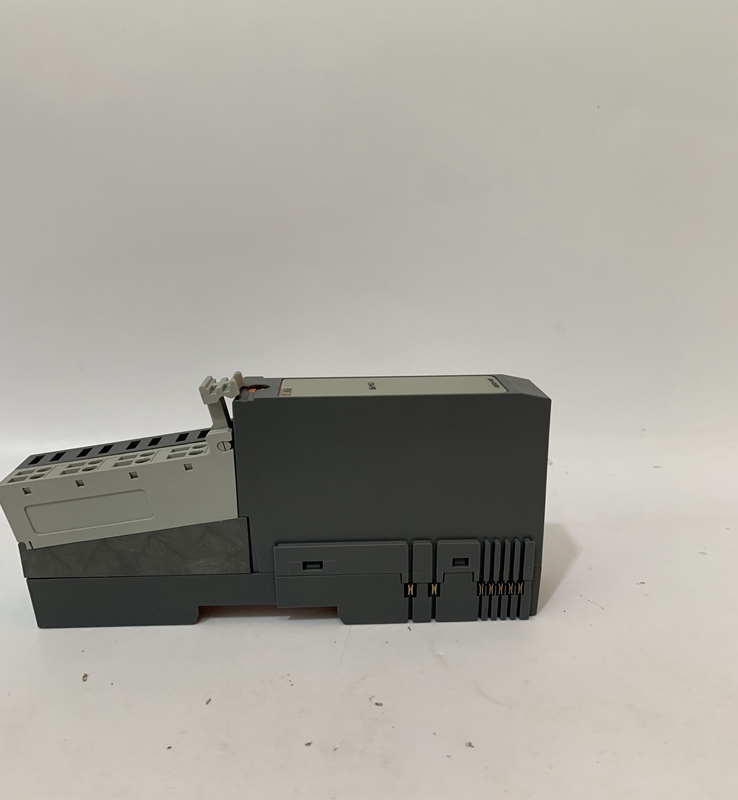

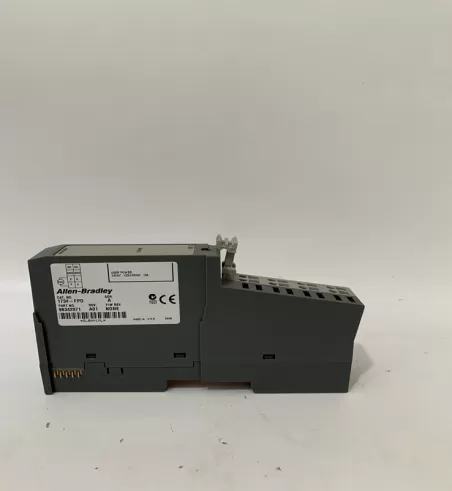

1734-FPD Allen-Bradley point I/O input module 2

1734-FPD Allen-Bradley point I/O input module 2

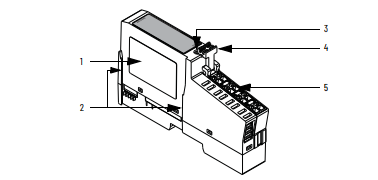

Product Dimensions

The purpose of the POINT I/O™ Field Potential Distributor Module is to break the field power distribution. Use the module to change the field power distribution source for I/O modules to the right of the module. This facilitates logical or functional partitioning of low-channel count, high  I/O-mix applications using the 1734-adapters, 1734-PDN, and 1734D Series communication interfaces. This module passes through all POINT I/O backplane signals except the internal  field power bus for field devices. You can use the module with a range of voltage inputs to include the following:

• 5…250V DC applications • 24…240V AC applications • I/O modules

To remove a 1734-FPD or 1734-FPDK module, you must first remove any I/O module installed in the base to the right. To remove the 1734-FPD or 1734-FPDK module from the DIN rail,  proceed as follows:

1. Pull up on the RTB removal handle to remove the terminal block.

2. Use a small-bladed screwdriver to rotate the DIN rail locking screw to a vertical position. This releases the locking mechanism.

3. Lift straight up to remove.

WARNING: When you connect or disconnect the removable terminal block (RTB) with field-side power applied, an electrical arc can occur. This can cause an  explosion in hazardous location installations. Be sure that power is removed or the area is nonhazardous before proceeding

1. Position the module vertically above the DIN rail. 2. Slide the module down to engage the interlocking sides pieces to the adjacent modules on both the left and right sides. 3. Press down firmly to install the module on the DIN rail. The module locking mechanism snaps into place.

We have the same series of models in stock.  If you don't find the model you need, please contact us and we will provide you with an official quotation！

Allen-Bradley440G-TZS21UPRH

Allen-Bradley700-HLS1U2

Allen-Bradley1440-SDM02-01RA

Allen-Bradley1492-IFM40F-3

Allen-Bradley1746-A10

Allen-Bradley1746-NI4

Allen-Bradley1746-NI8

Allen-Bradley1747-L541

Allen-Bradley1747-L552

Allen-Bradley1756-A4

Allen-Bradley1756-A10

Allen-Bradley1756-A13

Allen-Bradley1756-DHRI0C

Allen-Bradley1756-DNB/A

Allen-Bradley1756-EN2T

Allen-Bradley1756-EN2TR

Allen-Bradley1756-ENBT

Allen-Bradley1756-IA16I

Allen-Bradley1756-IB16

Allen-Bradley1756-IF16

Allen-Bradley1756-IR6I

Allen-Bradley1756-L7SP

Allen-Bradley1756-L71

Allen-Bradley1756-L71S

Allen-Bradley1756-L81ES

Colour：new                  Warranty: 12 months

Lead Time：3-day working day   Price: Please contact us

Shipping Port: Xiamen, China     Payment:T/T

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service
