1734-CTMK Allen-Bradley POINT I/O Common Terminal Module POINT I/O

Brand：Allen-Bradley Model number：1734-CTMK

Country of origin: United States Product weight：0.035kg

HS code：8517623990

Product Details：

1734-CTMK Allen-Bradley POINT I/O Common Terminal Module POINT I/O

Product Dimensions：

Solid state equipment has operational characteristics differing from those of electromechanical equipment. Safety Guidelines for the Application, Installation and Maintenance of Solid State Controls (Publication SGI-1.1 available from your local Rockwell Automation sales office or online at http://literature.rockwellautomation.com) describes some important differences between solid state equipment and hard-wired electromechanical devices. Because of this difference, and also because of the wide variety of uses for solid state equipment, all persons responsible for applying this equipment must satisfy themselves that each intended application of this equipment is acceptable. In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages resulting from the use or application of this equipment. The examples and diagrams in this manual are included solely for illustrative purposes. Because of the many variables and requirements associated with any particular installation, Rockwell Automation, Inc. cannot assume responsibility or liability for actual use based on the examples and diagrams. No patent liability is assumed by Rockwell Automation, Inc. with respect to use of information, circuits, equipment, or software described in this manual. Reproduction of the contents of this manual, in whole or in part, without written permission of Rockwell Automation, Inc., is prohibited. Throughout this manual, when necessary, we use notes to make you aware of safety considerations.

About the Modules The POINT I/O Common Terminal Module and Voltage Terminal Module provide expansion of the termination capability of POINT I/O. The modules support higher density (8 channel) POINT I/O modules and management of wiring of field devices to the POINT I/O solution.

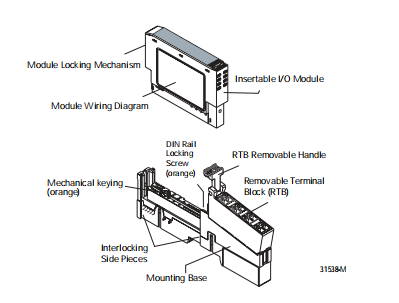

To install the mounting base on the DIN rail, proceed as follows. 1. Position the mounting base vertically above the installed units (adapter, power supply, or existing module). 2. Slide the mounting base down so that the interlocking side pieces to engage the adjacent module or adapter. 3. Press firmly to seat the mounting base on the DIN rail. The mounting base snaps into place.

Install the Module Install the module before or after mounting base installation. Be sure to correctly key the mounting base before installing the module into the mounting base. In addition, be sure to position the mounting base locking screw horizontal referenced to the base.

We have the same series of models in stock. If you don't find the model you need, please contact us and we will provide you with an official quotation！
