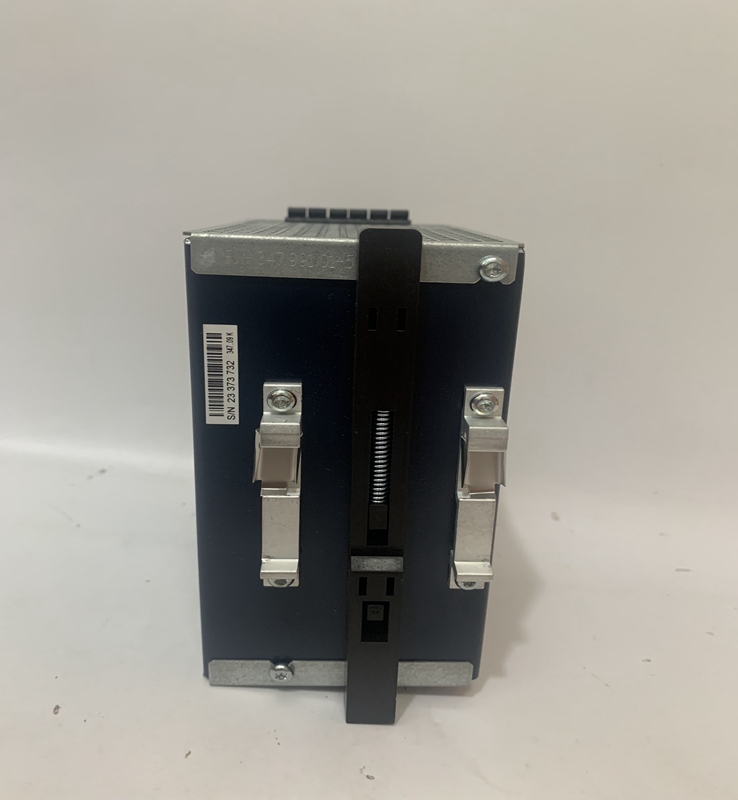

1606-XLS480E-3 Allen-Bradley Point I/O Analog Voltage Output Module 2

Brand：Allen-Bradley Model number：1606-XLS480E-3

Country of origin: United States Product weight：0.675kg

HS code：8471800000

Product Details：

1606-XLS480E-3 Allen-Bradley Point I/O Analog Voltage Output Module 2

Product Dimensions：

24V, 20A Three Phase Input POWER SUPPLY ¾ Ultra-small size ¾ Extra-low inrush current ¾ Active power factor correction ¾ Wide range AC/DC input; auto select input ¾ Superior reserve power (can support 150% rated power for five seconds) ¾ Superior efficiency and temperature rating ¾ DC-OK and overload LED

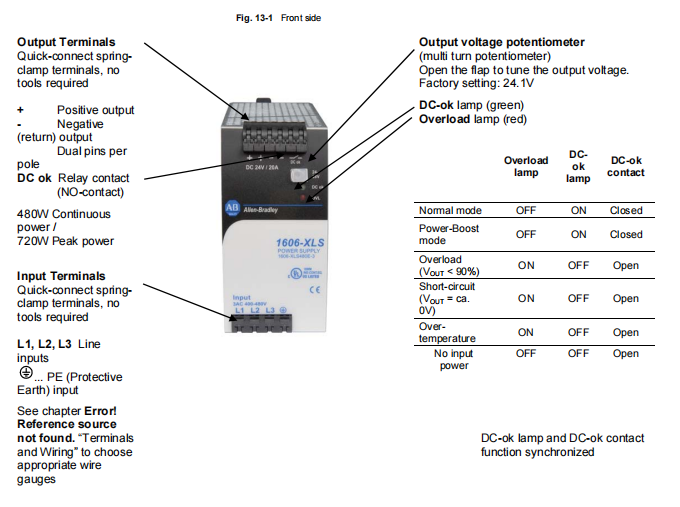

The most outstanding features of this 1606-XLS DIN-rail power supply are the high efficiency and the small size, which are achieved by a synchronous rectification and further novel design details. With short-term peak power capability of 150% and built-in large sized output capacitors, these features help start motors, charge capacitors and absorb reverse energy and often allow a unit of a lower wattage class to be used. High immunity to transients and power surges as well as low electromagnetic emission makes usage in nearly every environment possible. The integrated output power manager, a wide range input voltage design and virtually no input inrush current make installation and usage simple. Diagnostics are easy due to the dry DC-ok contact, a green DC-ok LED and red overload LED. Unique quick-connect spring-clamp terminals allow a safe and fast installation and a large international approval package for a variety of applications makes this unit suitable for nearly every situation

Note: The DC-ok feature requires that the output voltage reaches the nominal (=adjusted) level after turn-on in order to function according to specification. If this level cannot be achieved, the overload lamp will be on and the DC-ok contact will be open. The overload signal will only shut off as soon as the adjusted voltage is reached. This is an important condition to consider particularly, if the load is a battery, the power supply is used in parallel or the power supply is used for N+1 redundant systems.

We have the same series of models in stock. If you don't find the model you need, please contact us and we will provide you with an official quotation！
