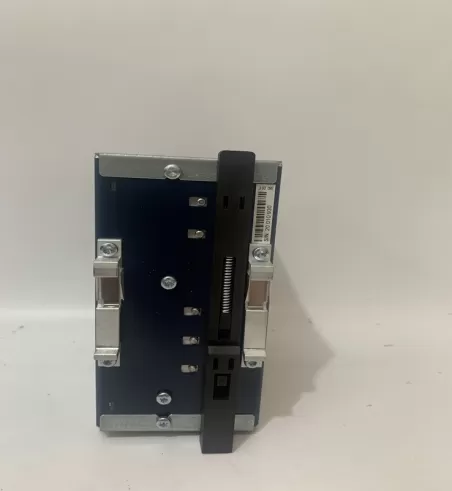

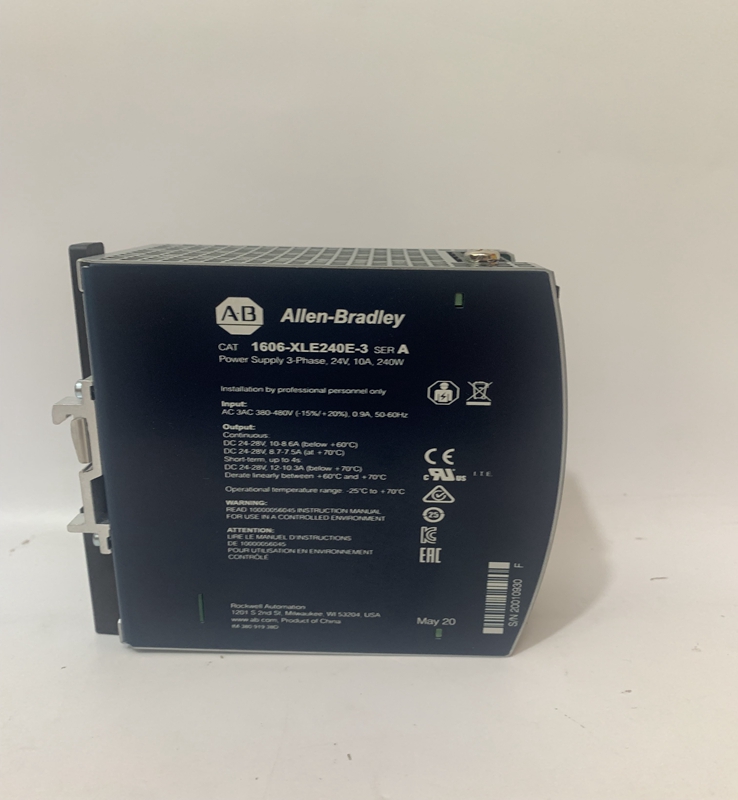

1606-XLE240E-3 Allen-Bradley 240 W, 380-480 V AC three-phase input

Brand：Allen-Bradley Model number：1606-XLE240E-3

Country of origin: United States Product weight：0.190kg

HS code：8471800000

Product Details：

1606-XLE240E-3 Allen-Bradley 240 W, 380-480 V AC three-phase input

Product Dimensions：

• World-wide approvals ( ) for industry • Input: 3 AC 400...500V (2-phase and 3-phase operation) • Output: 24...28V / 240W • Power Boost up to 288W • Separate primary fuse not necessary • Switchable operating mode (single/parallel) • Switchable overload behavior options

This compact power supply unit is characterised by the variety of possibilities of application and low system costs. The fact that the external fuses are no longer necessary is an advantage as it saves cost and space. The switchable Fuse Mode, the fully specified 2-phase operation and the extremely comprehensive approvals package including EN60204 make the 1606-XL240E-3 the unit of choice. At a competitive price, it also offers 12A power boost, 20A short circuit current, output noise suppression, optional Single Mode or Parallel Mode, small dimensions, more than 500,000h MTBF as well as easy installation. The unit can be connected to European and American power supply networks without switching.

Nominal input voltage 2 AC and 3 AC 400...500V 47...63Hz, suitable for IT power systems Rated tolerances • Continuous operat. • Short-term (1 min.) (at 24V/10A) 2-phase and 3-phase operation AC 340...576V resp. DC 450...820V AC 300...620V resp. DC 400...890V • Pls. ask for 'application notes’ at operation with DC input voltage. 2-phase operation is specified and permissible. Connection to 3 phases is recommended due to reduced component stress. If you intend to protect the primary side of the power supply with fuses or circuit breakers, 10 A (x3) slow acting fuses (HBC) or a supplementary protectors 1492- SP3C100 are recommended. In order to meet local requirements, please consult local codes and regulations for proper installation.

Housing dimensions and Weight • W x H x D • Free space for con-vection cooling • Weight 89mm x 124mm x 117mm (+ DIN rail) above/below 50mm recommended left/right 20mm recommended 980g Design advantages: • All connection blocks are easy to reach as mounted on the front panel. • PVC insulated cable can be used for all connections, as the connection blocks are mounted on the cooler area on the underside of the unit. Wire Size Input/Output: • Stranded 20...10 AWG (0.5...4 mm²), Solid 20...10 AWG (0.5...6 mm²) Tightening Torque: 7 lbs in (0.8 Nm) recommended
