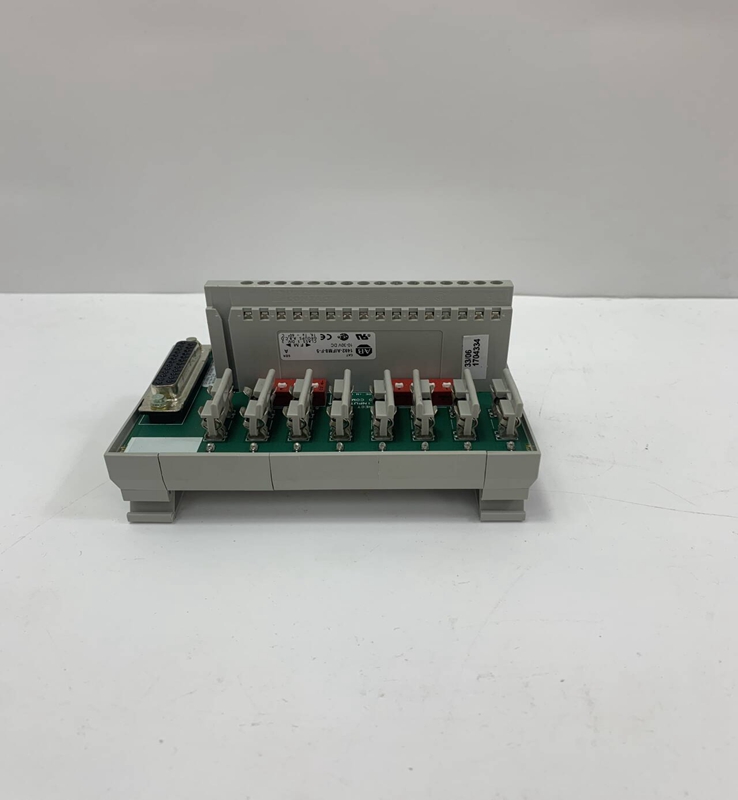

1492-AIFM8-F-5 Allen-Bradley

Product Dimensions：

Fusible 8-Channel Input with 24V DC Blown Fuse

Indicators, 5 Terminals/Channel

Application Notes

1. Compatibility — To ensure proper operation

with the I/O module, do not exceed the voltage

and current ratings of the AIFM.

2. Wiring — Refer to the Label Section on page 174.

For Field-Side Wiring Diagrams, refer to the

Wiring System web site information on page 200.

3. Fusing — Fuse holders are included with the

AIFM. Fuses (5 x 20 mm) are not included. Do

not exceed 2 A per input, 12 A per AIFM.

4. Isolation — The fuse clips and blown fuse

indicators are internally connected to one power

source field-side terminal. All inputs must

reference the same power source.

5. DIP Switches — For ease of wiring, unused

inputs can be jumpered to module common by

closing the DIP switches (ON position) for analog

modules that have this capability. Default switch

position is OPEN/OFF/NOT jumpered together.

6. Extra Terminals — Nine field-side terminals are

internally jumpered on the AIFM. They can be

used for power source common connections.

7. Shield Terminals — Eighteen field-side terminals

are jumpered together on the AIFM and internally

connected to the D-shell housing.

8. Dimensions — Refer to page 167.
