1400-PM-ACC Allen-Bradley Protective Connection Kit

1400-PM-ACC Allen-Bradley Protective Connection Kit

Brand：Allen-Bradley       Model number：1400-PM-ACC

Country of origin: United States       Product weight：0.520kg

HS code：8517623990

Product Dimensions：

Use a shorting terminal block (included in the 1400-PM-ACC accessory kit),

test block, or shorting switch (by user) for CT wiring to permit safely servicing

connected equipment such as the PowerMonitor 5000 unit without deenergizing the power system.

Use 2.5 mm2

 (14 AWG) or 3.3 mm2

 (12 AWG) (maximum) wiring between the

PowerMonitor 5000 unit and the shorting block. Use 2.5 mm2

 (14 AWG) or

larger wire between the shorting block and the CTs, depending on the length of

the circuit. Longer circuits require larger wire so that the wiring burden does not

exceed the CT burden rating and reduce system accuracy. Note that the diameter

of the current sensing wiring openings is 7 mm (0.27 in.)

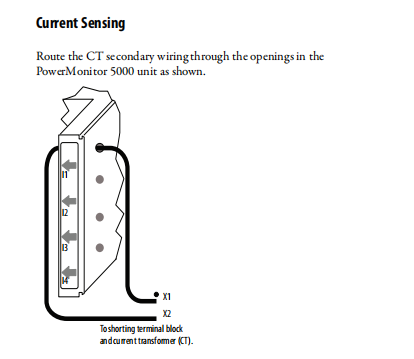

Ring lugs are recommended for making CT secondary connections. Standard

ring lugs do not pass through the current sensing openings of the

PowerMonitor 5000 unit. We recommend that the installer pass the wire from

the shorting terminal block through the current sensing opening before

crimping on ring lugs.

When wiring a PowerMonitor 5000 unit to existing CTs and metering devices,

current sensing circuits of the PowerMonitor 5000 unit must be wired in series

with the CT secondary and current sensing circuits of the existing metering

devices.

Do not install overcurrent protection or non-shorting disconnecting means in

CT secondary wiring. Connect the current sensing circuit to a low-impedance

earth ground at only one point.

We have the same series of models in stock.  If you don't find the model you need, please contact us and we will provide you with an official quotation！
