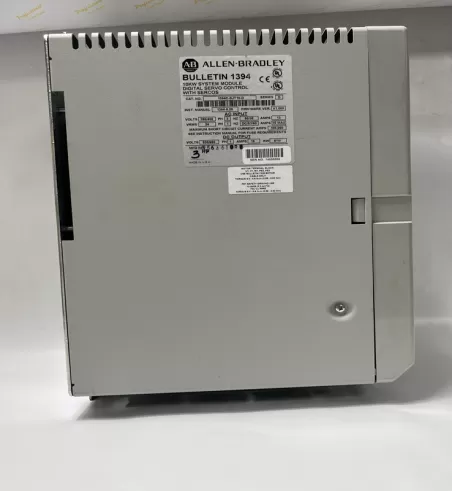

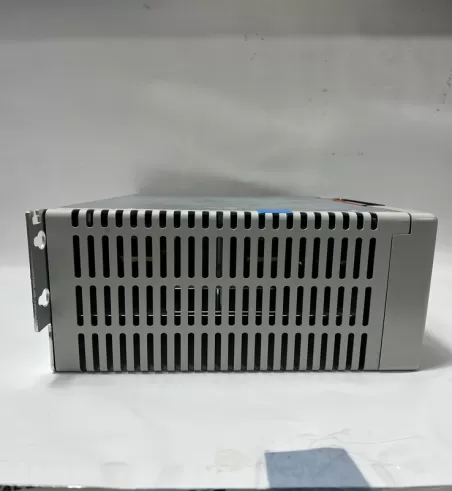

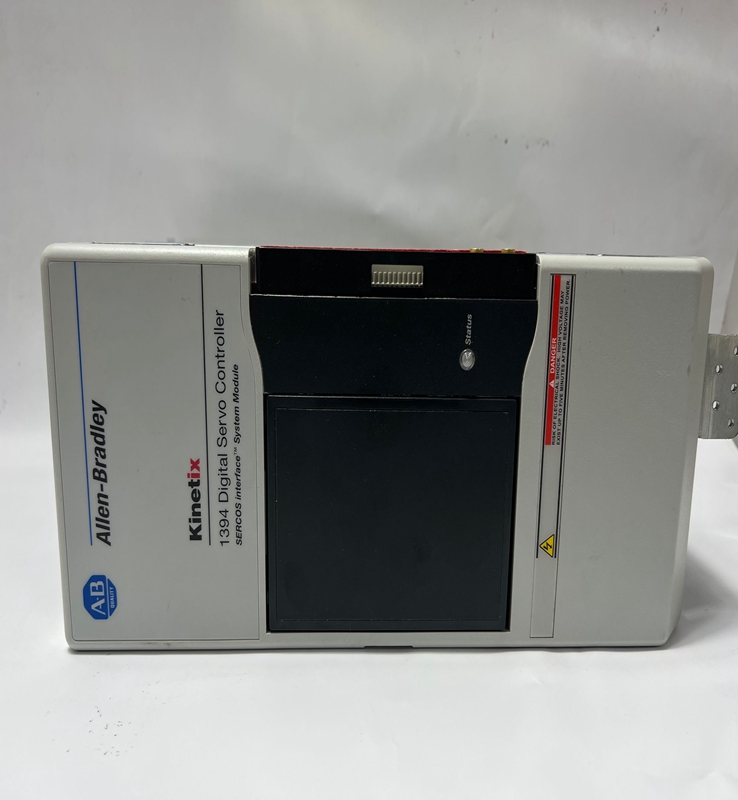

1394C-SJT10-D Allen-Bradley Digital Servo Control

Brand：Allen-Bradley Model number：1394C-SJT10-D

Country of origin: United States Product weight：10.730kg

HS code：8517623990

Product Details：

1394C-SJT10-D Allen-Bradley Digital Servo Control

Product Dimensions：

This product contains stored energy devices. To avoid hazard of electrical shock, verify that all voltage on capacitors has been discharged before attempting to service, repair, or remove this unit. You should only attempt the procedures in this document if you are qualified to do so and are familiar with solid-state control equipment and the safety procedures in publication NFPA 70E.

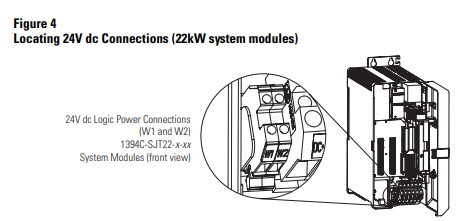

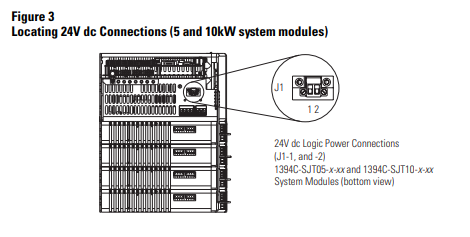

Route fan kit wires down along the side of the system module and over to where the 24V dc power supply connections are made (refer to figures 3 and 4 for the location of the 1394 connector locations).
Label and remove the 24V dc logic power wiring from the system module
Determine the positive 24V dc supply wire and align the red wire from the fan kit to the +24V side.
Determine the negative 24V dc supply wire and align the black wire from the fan kit to the -24V side.
Insert and tighten the 24V dc supply wires (and fan wires) as described in the table below (system module polarity is not specified).

We have the same series of models in stock. If you don't find the model you need, please contact us and we will provide you with an official quotation！
