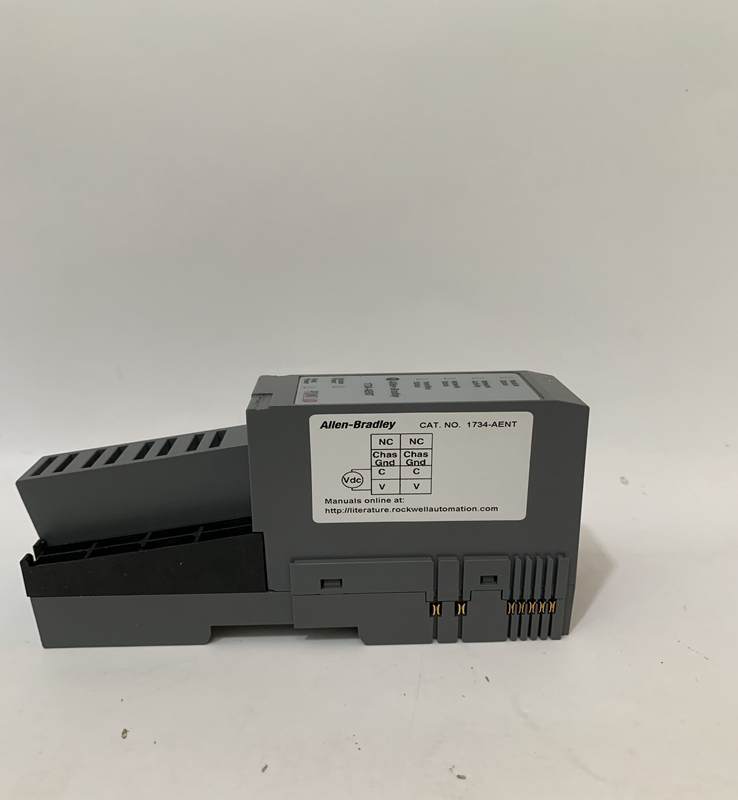

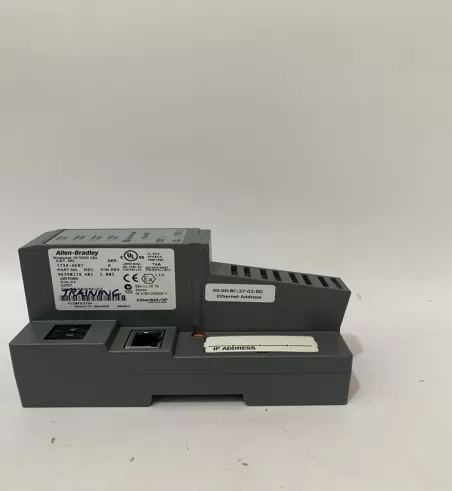

1734-AENT Allen-Bradley EtherNet/IP I/O

Brand：Allen-Bradley Model number：1734-AENT

Country of origin: United States Product weight：0.240kg

HS code：8471800000

Inquire Now Next Product

Product Details：

1734-AENT Allen-Bradley EtherNet/IP I/O

Product Dimensions

Network Adapter, POINT I/O, EtherNet/IP, 63 Module Capacity on POINTBus, DIN Mounted

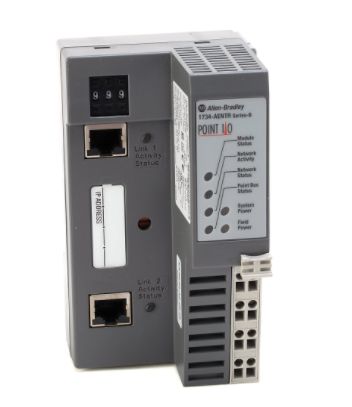

The 1734-AENT Add-on Profiles are compatible with RSLogix 5000 software version 17, or greater. The 1734-AENT adapters can work with existing profiles in RSLogix 5000 software version 16 with compatible keying. The 1734-AENTR Add-on Profiles are compatible with RSLogix 5000 software version 17, or greater. If you use the 1734-AENT or 1734-AENTR adapter with a 1756-ENBT or 1768-ENBT module, use the following required firmware revisions for these bridge modules: • 1756-ENBT firmware revision 4.006 or greater • 1768-ENBT firmware revision 2.003 or greater The 1734-AENTR adapters will accept I/O connections with compatible electronic keying for the 1734-AENT. This allows the 1734-AENTR adapter to be used in a daisy-chain topology with the 1734-AENT Add-on Profile used for the 1734-AENTR.

The POINT I/O EtherNet/IP Adapter is a communications adapter for POINT I/O modules. The adapter provides an interface for controlling and communicating with POINT I/O modules from an Ethernet network.

Because of the variety of uses for the products described in this publication, those responsible for the application and use of these products must satisfy themselves that all necessary steps have been taken to assure that each application and use meets all performance and safety requirements, including any applicable laws, regulations, codes and standards. In no event will Rockwell Automation be responsible or liable for indirect or consequential damage resulting from the use or application of these products. Any illustrations, charts, sample programs, and layout examples shown in this publication are intended solely for purposes of example. Since there are many variables and requirements associated with any particular installation, Rockwell Automation does not assume responsibility or liability (to include intellectual property liability) for actual use based upon the examples shown in this publication.

Touch a grounded object to discharge potential static.

• Wear an approved grounding wriststrap.

• Do not touch connectors or pins on component boards.

• Do not touch circuit components inside the equipment.

• If available, use a static-safe workstation.

• When not in use, store the equipment in appropriate static-safe packaging.

We have the same series of models in stock. If you don't find the model you need, please contact us and we will provide you with an official quotation！
