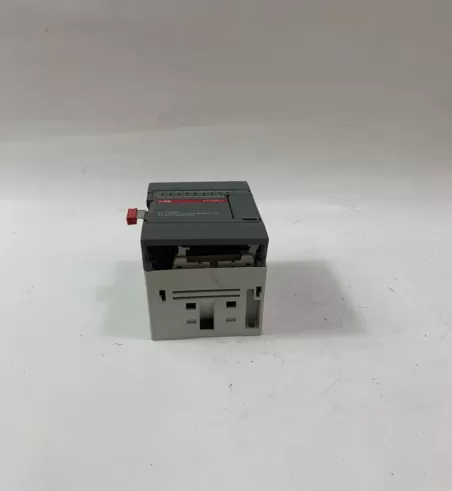

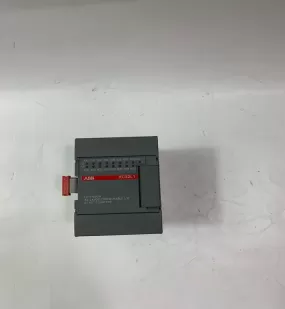

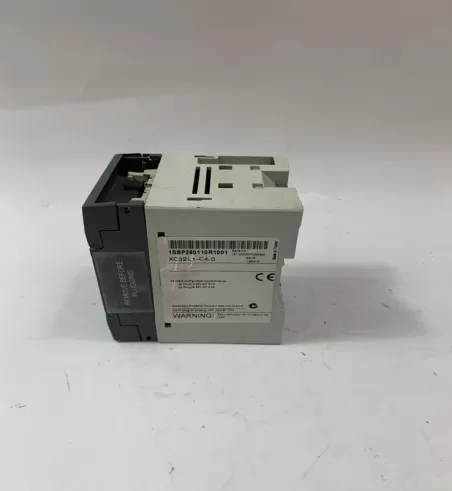

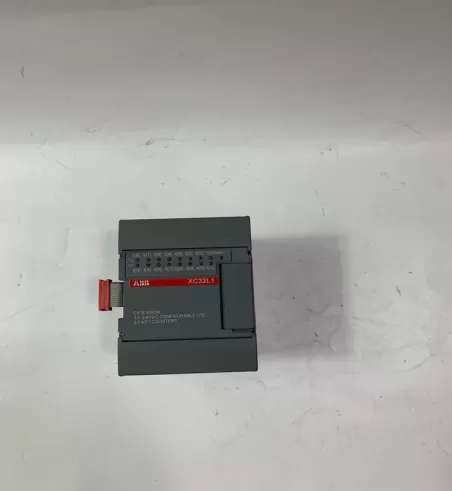

XC32L1-C4.0 1SBP260110R1001 ABB High-speed counting module

Inquire Now Next Product

Product Details：

XC32L1-C4.0 1SBP260110R1001 ABB High-speed counting module

Brand：ABB Model number：XC32L1-C4.0 1SBP260110R1001

Country of origin: Sweden Product weight：0.215KG

HS code：8517623990

Product Dimensions：

An ABB AC 31 system always includes an AC 31 central unit. There are three types of central

units:

- The 40 series central unit, with a local inputs / outputs extensions interface

- The 50 series central unit, with a local inputs / outputs extensions interface

and a CS 31 bus interface

- The 90 series central unit, with a CS 31 bus interface

Each central unit incorporates a specific number of binary inputs / outputs and occasionally analog. It is possible, depending on the central unit, to increase the number of inputs / outputs,to add input / output extensions connected directly to the central units or remote input / output units via the CS 31 twisted pair.

The 40 and 50 series. It’s possible to increase the number of inputs / outputs of the basic central unit by adding up to 6 local extension units of either type, binary or analog (Figure 1-1)

The 50 and 90 series. It’s possible to increase the number of inputs / outputs of the basic central unit by adding remote units. The central unit controlling the system is called the MASTER central unit. The maximum bus length is 500 m without an amplifier and 2000 m with

3 amplifiers (1 NCB or NCBR unit enables bus amplification for 500 m).

The master central unit can manage up to 31 connection points called SLAVES, such as:

- A remote unit with extension possibilities: a maximum of 6 extension units comprising of a maximum of 8 analog input channels and 8 analog output channels

- A simple remote unit (without extension) with analog or binary inputs / outputs

- A remote TCAD display

- An ABB NCSA-01 variable speed drive interface

- A high speed counter unit

- A central unit (50 series with extension possibilities, 90 series and the previous 30 series)

- Or any other device which disposes of a CS 31 communication (see Figure 1-2)
