PCD232 3BHE022293R0106 ABB Communication I/O Modules

Product Details:

PCD232 3BHE022293R0106 ABB Communication I/O Modules

BrandABB                                      Model numberPCD232 3BHE022293R0106

Country of origin: Sweden                Product weight0. 55KG

HS code:8517623990

Product Dimensions:

This page contains technical data sheet, documents library and links to offering related to this product. If you require any other information, please contact us using form located at

the bottom of the page Contents of the product package:

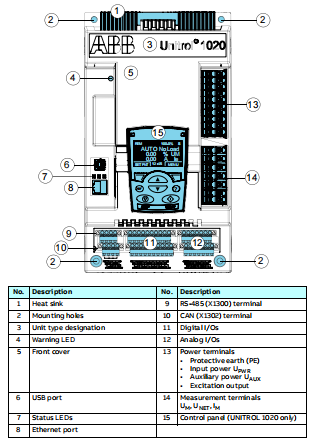

• UNITROL 1000 series AVR

• Special red USB cable that is used to power and to connect with the AVR.

Keep this USB cable in a safe place.

• Red jumper blocks (3 pcs.)

• Quick installation guide and test certificate

Make sure that all of the listed items are in the product package and that there is

no damage to the items.

1. Clearly identify the work location and equipment.

2. Disconnect all possible voltage sources. Make sure that reconnection is not

possible. Lock out and tag out.

• Open the main disconnecting device of the AVR.

• Disconnect any external power sources from the control circuits before

you do work on the control cables.

• If you have a permanent magnet generator connected to the AVR,

disconnect it from the AVR with a safety switch or by other means.

• After you disconnect the AVR, always wait for 5 minutes to let the

intermediate circuit capacitors discharge before you continue.

• Do not do work on the AVR when the amber warning LED flashes.

3. Protect any other energized parts in the work location against contact.

4. Take special precautions when you are near bare conductors.

5. Measure that the installation is de-energized.

• Use a multimeter with an impedance of at least 1 Mohm.

• Make sure that the voltage between the AVR input power terminals

(PWR L1, PWR L2 and PWR L3) and the grounding terminal (PE) is near

0 V.

• Make sure that the voltage between the AVR output terminals (IE+, IEand ExCap) and the grounding terminal (PE) is close to 0 V.
